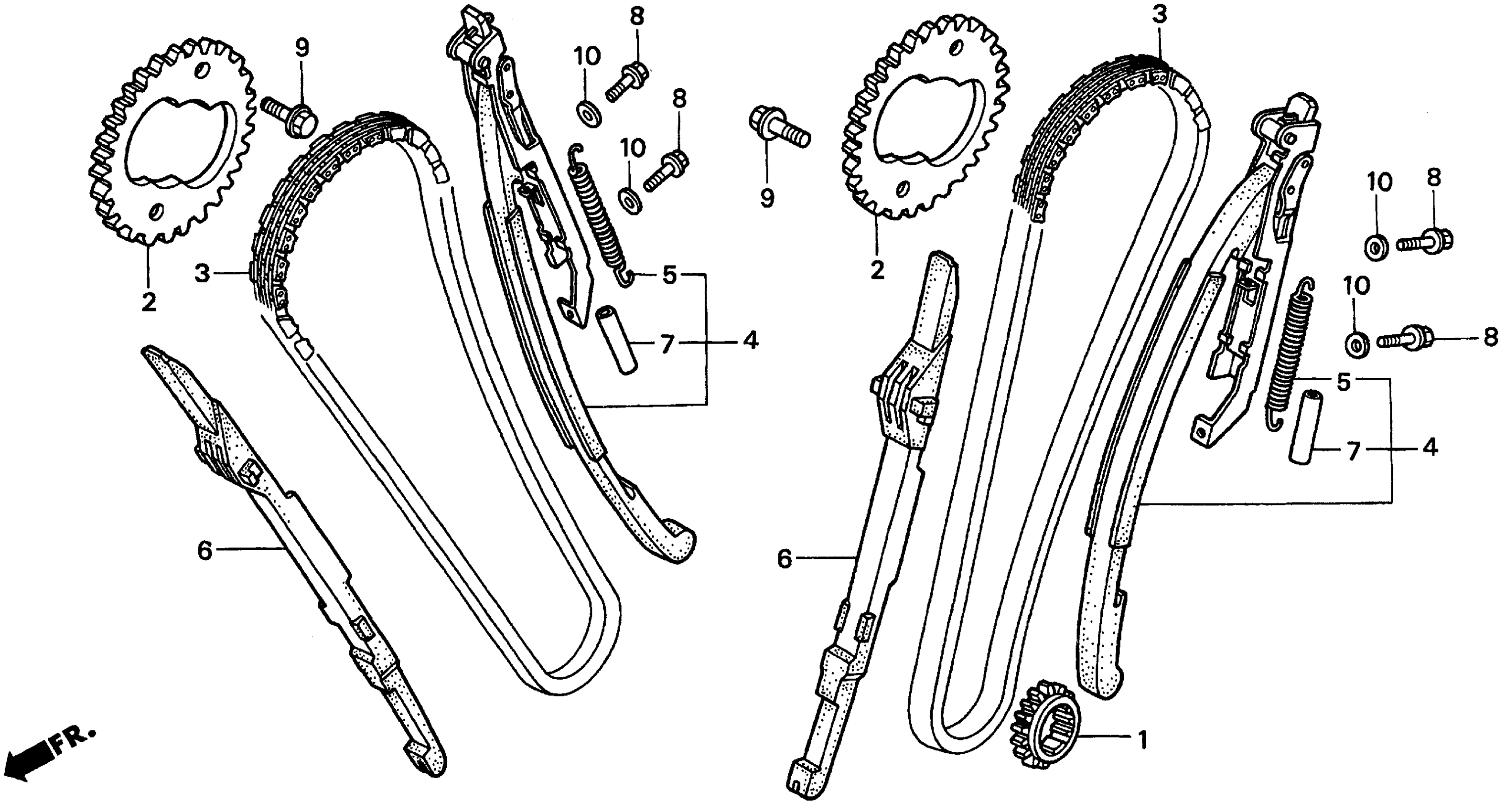

Honda VT1100TA (99) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-XA100001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM CHAIN DRIVE (21T)

14311-MG8-000

Unavailable

SPROCKET, CAM (42T)

14322-ME9-000

Unavailable

CHAIN, CAM (136L) (TSUBAKIMOTO)

14401-MG8-003

$181.64

TENSIONER, CAM CHAIN This part replaces 14510-MM8-000.

14510-MCK-A00

$142.68

TENSIONER, CAM CHAIN

14510-MCK-A00

$142.68

SPRING, CAM CHAIN TENSIONER (NIPPON HATSUJO)

14516-MG8-003

$4.47

GUIDE, CAM CHAIN

14522-MG8-000

Unavailable

TUBE, TENSIONER SPRING

14545-MG7-010

$10.28

BOLT, FLANGE (6X24)

90001-MEM-670

$1.64

BOLT, FLANGE (6X24) This part replaces 90016-MG8-000.

90001-MEM-670

$1.64

BOLT, UBS (7X15)

90026-MM8-000

$2.80

WASHER, SEALING (6MM)

90441-706-000

$1.06
