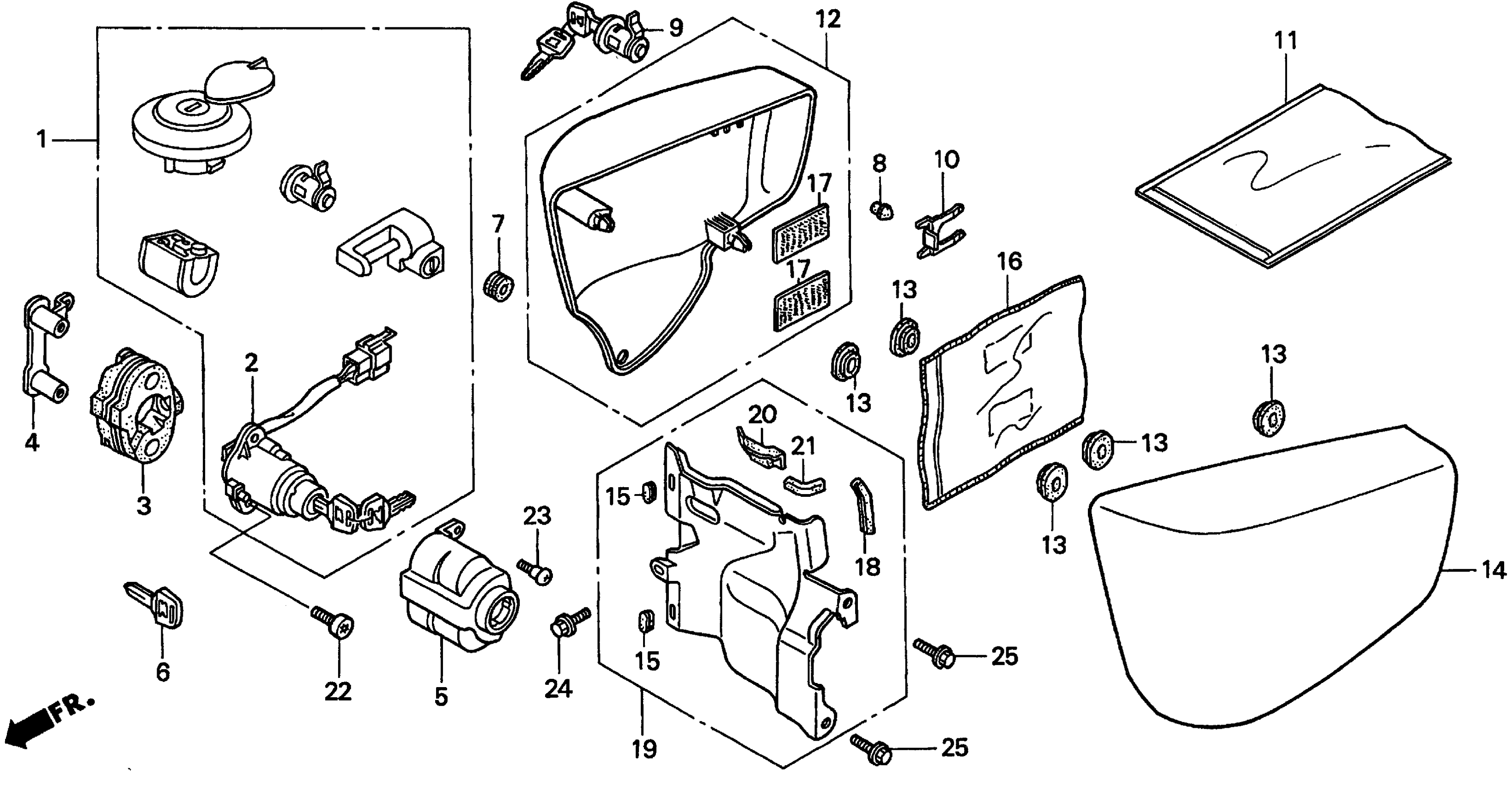

Honda VT1100TA (98) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-WA000001 SIDE COVER + KEY SET Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE)

35010-MBC-000

Unavailable

2

SWITCH ASSY., COMBINATION

35100-MAH-007

Unavailable

3

BASE, COMBINATION SWITCH

35102-MR1-000

$13.64

4

COLLAR, COMBINATION SWITCH

35103-MR1-000

Unavailable

5

COVER, COMBINATION SWITCH

35110-MR1-000

$29.05

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

7

GROMMET, SIDE COVER

50142-437-970

$2.59

8

CAP, STEP HOLDER END

50713-ML0-720

$3.08

9

LOCK ASSY., POCKET LID

64228-MT3-003

$32.39

10

SPRING, LOCK SETTING

77211-ME4-000

$7.16

11

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

12

COVER, R. SIDE *G160P* (PEARL JADE GREEN) (SOURCE: VINTAGE PARTS INC.)

83500-MAH-000ZS

$229.90

12

COVER, R. SIDE *NH1* (BLACK)

83500-MAH-000ZH

$273.80

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

14

COVER, L. SIDE *G160P* (PEARL JADE GREEN) (NOT AVAILABLE)

83600-MAH-000ZR

Unavailable

14

COVER, L. SIDE *NH1* (BLACK)

83600-MAH-000ZH

$257.51

15

GROMMET, SIDE COVER

83602-MM8-000

$4.43

16

BAG, OWNER'S MANUAL

83642-ML0-000

$9.43

17

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.92

18

RUBBER, PROTECTOR

83701-MAH-300

Unavailable

19

COVER ASSY., CENTER

83702-MAH-000

$236.34

20

RUBBER C, PROTECTOR

83704-MAH-300

Unavailable

21

RUBBER D, PROTECTOR

83705-MAH-300

Unavailable

22

BOLT, TORX (6X14)

90107-KCR-000

$3.54

23

SCREW, RR. COVER

90114-GB6-920

$1.50

24

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

25

BOLT, FLANGE (6X12)

96001-06012-02

$1.49
