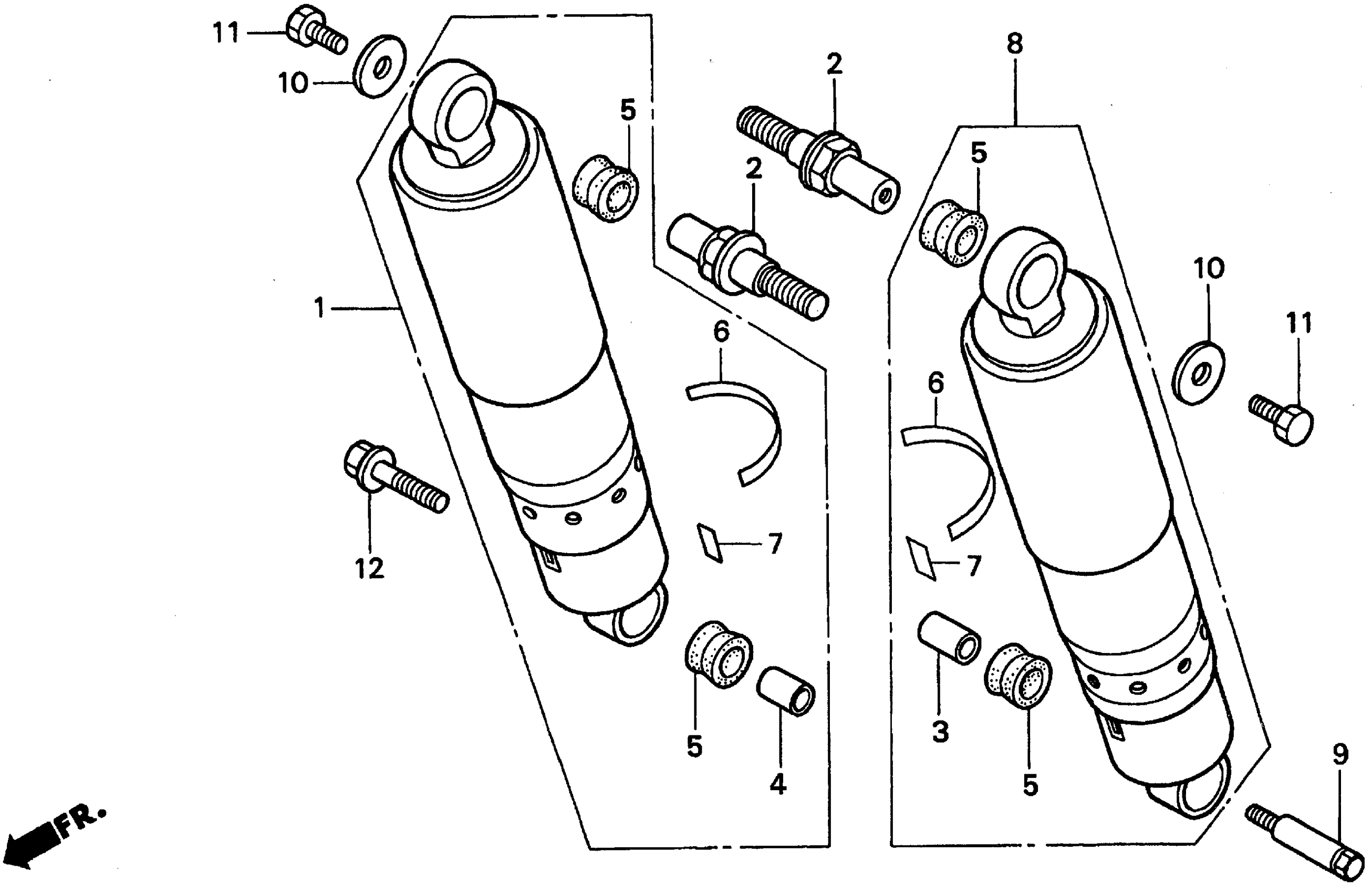

Honda VT1100TA (98) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-WA000001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., R. RR. (NOT AVAILABLE)

52400-MBC-003

Unavailable

2

BOLT, RR. SHOCK ABSORBER This part replaces 52452-MM8-000.

52452-MAH-A40

$22.75

2

BOLT, RR. SHOCK ABSORBER

52452-MAH-A40

$22.75

3

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$10.62

4

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

5

BUSH, RR. SHOCK ABSORBER

52489-KR3-003

$5.08

6

LABEL A

52496-MB4-003

$7.56

7

LABEL B, RR. CUSHION

52497-KR3-003

Unavailable

8

SHOCK ABSORBER ASSY., L. RR. (NOT AVAILABLE)

52500-MBC-003

Unavailable

9

BOLT, RR. CUSHION

90159-MG9-000

$17.60

10

WASHER (8.5X26)

90504-ME4-000

$3.26

11

BOLT, HEX. (8X12)

95501-08012-02

$2.11

12

BOLT, FLANGE (10X35)

95801-10035-02

$2.31
