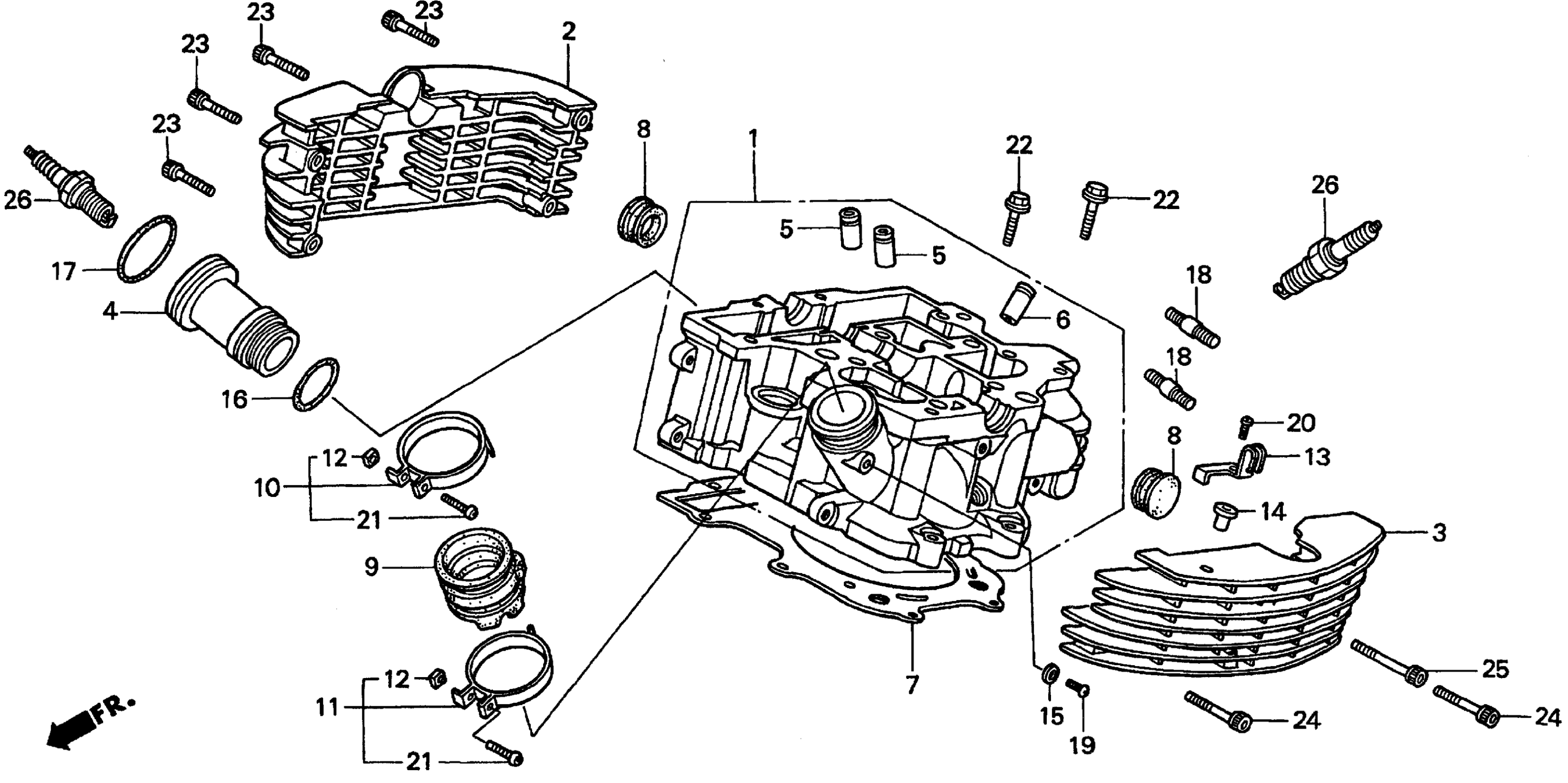

Honda VT1100TA (98) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-WA000001 CYLINDER HEAD (RR.) Diagram

CYLINDER HEAD, RR. (NOT AVAILABLE) | Use up to Engine SN 2001195

12220-MBC-000

Unavailable

CYLINDER HEAD, RR. | Use from Engine SN 2001196

12220-MAH-000

Unavailable

FIN A, RR. CYLINDER HEAD (SOURCE: VINTAGE PARTS INC.)

12222-MAH-000

Unavailable

FIN B, RR. CYLINDER HEAD (NOT AVAILABLE)

12223-MAH-000

Unavailable

SLEEVE, PLUG

12225-MG8-000

$38.87

GUIDE, IN. VALVE (OVER SIZE)

12231-MG8-305

$20.08

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

GUIDE, IN VALVE

12233-MG8-405

Unavailable

GASKET, CYLINDER HEAD

12251-MAH-003

$38.39

PLUG, CAMSHAFT

12312-ME9-750

$10.12

INSULATOR, CARBURETOR

16211-MAH-000

$23.53

BAND A, INSULATOR

16218-MAH-000

$10.57

BAND B, INSULATOR

16219-MAH-000

$6.87

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

CLIP, IGNITION WIRE

32905-MAH-000

$16.84

NUT, WELL (5MM)

64528-KV3-000

$8.80

WASHER, SEALING (5MM)

90452-323-000

$1.59

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

BOLT, STUD (8X28)

92900-08028-0E

$2.34

SCREW, PAN (5X8)

93500-05008-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0G

$1.49

SCREW, PAN (5X25)

93500-05025-0G

$1.49

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

BOLT, SOCKET (6X20)

96600-06020-07

$1.49

BOLT, SOCKET (6X20) This part replaces 96700-06020-07.

96600-06020-07

$1.49

BOLT, SOCKET (6X35) (NOT AVAILABLE)

96700-06035-07

Unavailable

BOLT, SOCKET (6X45) (NOT AVAILABLE)

96700-06045-07

Unavailable

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
