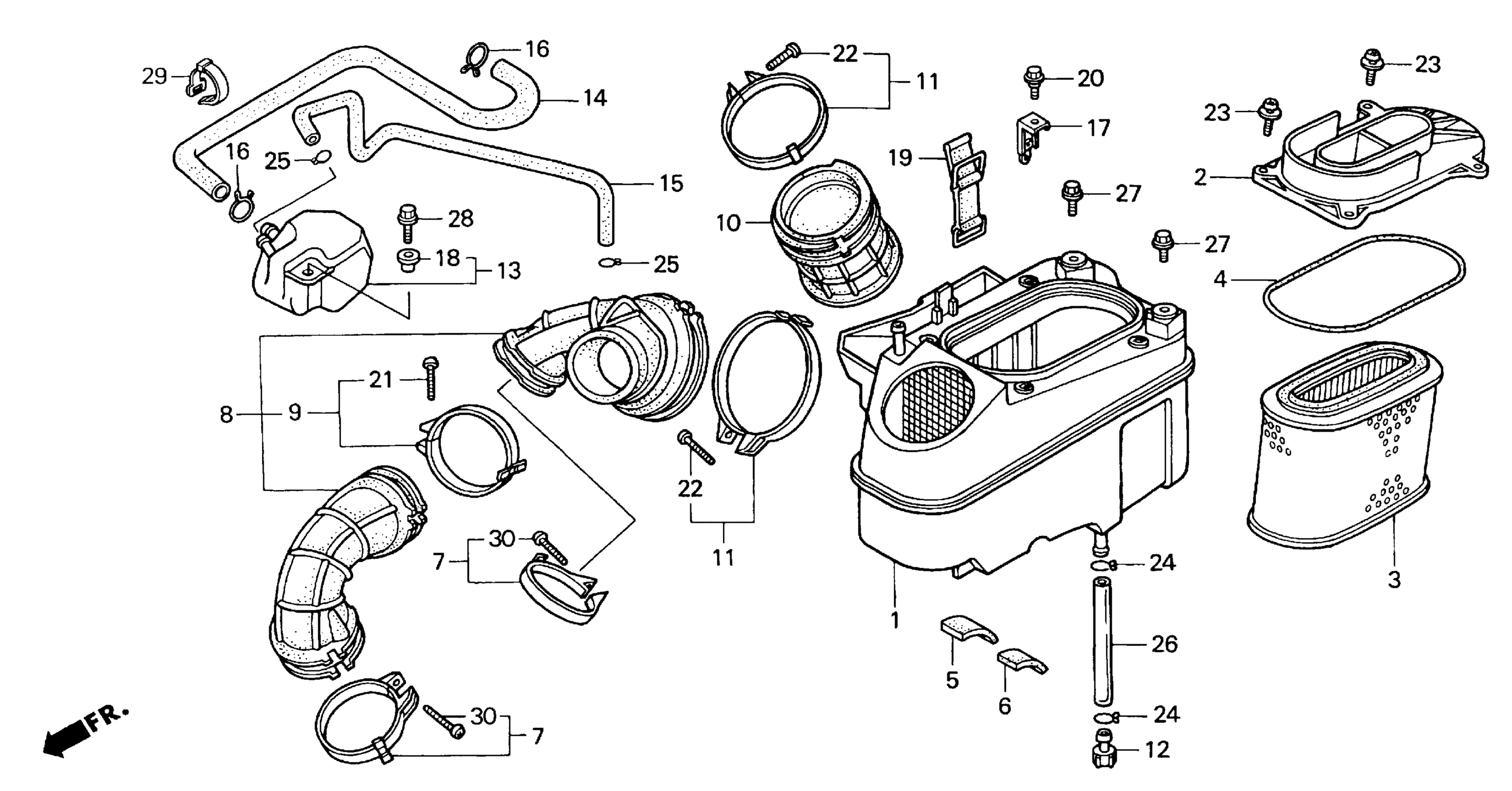

Honda VT1100TA (98) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-WA000001 AIR CLEANER Diagram

CASE SUB, AIR CLEANER This part replaces 17210-MM8-010.

17210-MM8-020

$68.16

CASE SUB, AIR CLEANER

17210-MM8-020

$68.16

COVER, AIR CLEANER HOUSING This part replaces 17212-MM8-000.

17212-MM8-010

$7.46

COVER, AIR CLEANER HOUSING

17212-MM8-010

$7.46

ELEMENT, AIR CLEANER This part replaces 17215-MM8-010.

17215-MM8-020

$28.24

ELEMENT, AIR CLEANER

17215-MM8-020

$28.24

GASKET, AIR CLEANER HOUSING COVER

17217-MG8-300

$7.02

RUBBER A, CUSHION

17220-MAH-610

Unavailable

RUBBER B, CUSHION

17225-MAH-610

$2.04

BAND A, CONNECTING TUBE This part replaces 17254-MAH-610.

17254-MAH-611

Unavailable

BAND A, CONNECTING TUBE

17254-MAH-611

Unavailable

CONNECTING TUBE A

17255-MM8-000

$46.36

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17256-MM8-000.

95018-52250

$4.78

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$4.78

TUBE B, AIR CLEANER CONNECTING

17258-MM8-300

Unavailable

BAND C, CONNECTING TUBE

17259-MM8-000

$15.13

PLUG, BREATHER TUBE

17370-419-700

$3.49

TANK, STORAGE

17551-MM8-000

Unavailable

TUBE A, BREATHER (NOT AVAILABLE)

17552-MAA-A00

Unavailable

TUBE B, BREATHER

17553-MM8-000

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

STAY, FILLER NECK

19111-MM8-000

Unavailable

COLLAR, FR. FENDER

61105-KM7-910

$2.88

BAND, SIDE COVER

83606-356-000

$20.88

BOLT, FLANGE (6MM)

90116-ME9-000

$3.12

SCREW, PAN (4X20)

93500-04020-0G

$0.71

SCREW, PAN (4X25)

93500-04025-0G

$0.59

SCREW-WASHER (5X16)

93891-05016-07

$1.04

CLIP, TUBE (B12)

95002-02120

Unavailable

CLIP, TUBE (B12.5)

95002-02130

$1.04

BULK HOSE, VINYL (7X11X8000) (7X11X260)

95003-19008-60M

Unavailable

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

SCREW, PAN (4X20)

93500-04020-0G

$0.71
