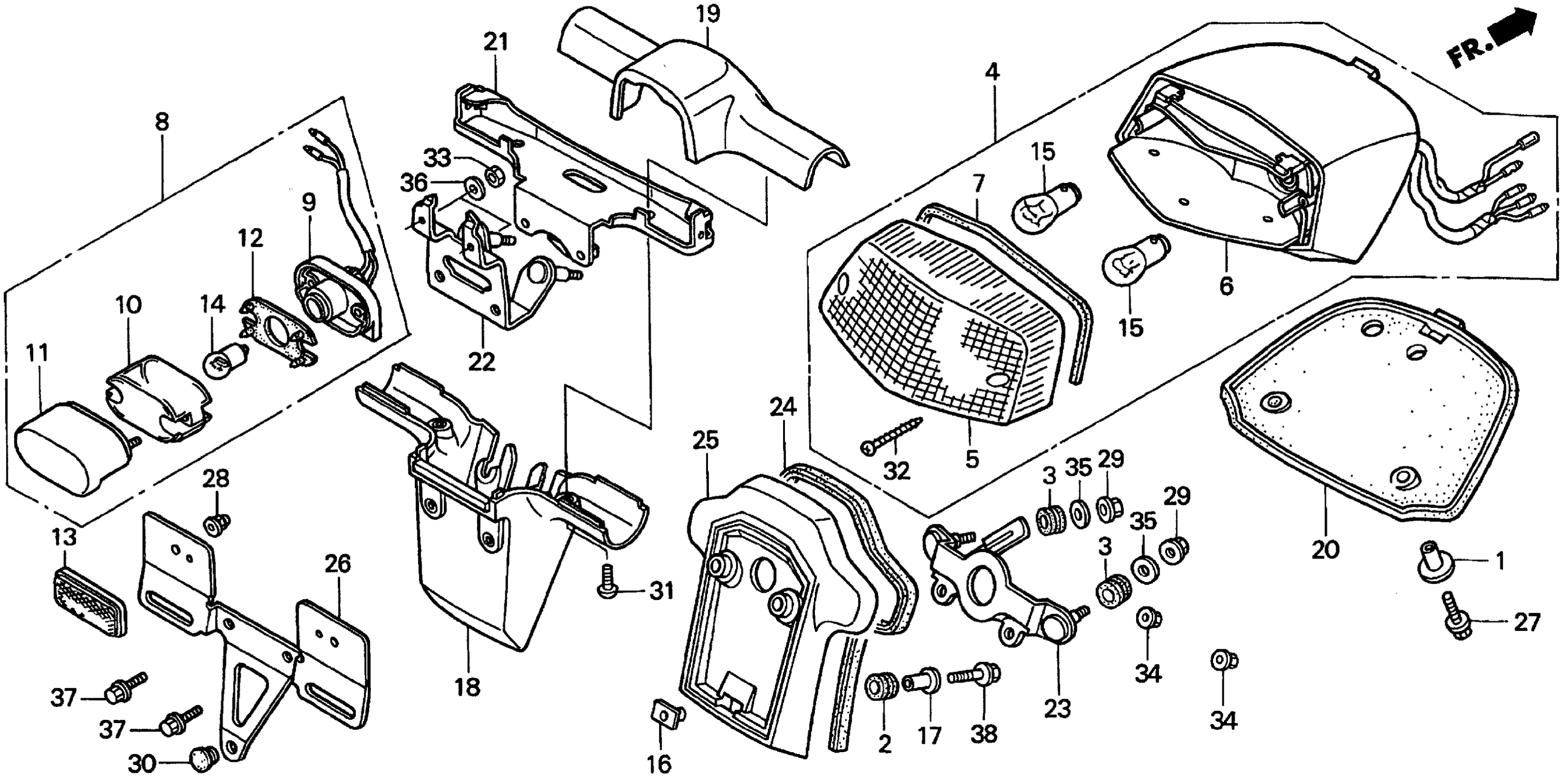

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 TAILLIGHT Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$5.73

2

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.54

3

GROMMET, RADIATOR

19053-MB2-000

$4.12

4

TAILLIGHT UNIT (NOT AVAILABLE)

33701-MBC-003

Unavailable

5

LENS, TAILLIGHT

33702-MR1-671

$58.28

6

BASE, TAILLIGHT (NOT AVAILABLE)

33704-MBC-003

Unavailable

7

GASKET, TAILLIGHT

33709-MAH-671

Unavailable

8

LIGHT ASSY., LICENSE (12V 8W)

33720-MZ0-671

Unavailable

9

BASE, LICENSE LIGHT

33721-MZ0-003

Unavailable

10

LENS, LICENSE LIGHT

33722-MB1-013

$17.67

11

COVER, LICENSE LIGHT

33727-KR3-000

$27.01

12

GASKET, LENS

33729-MB1-003

$5.86

13

REFLECTOR, RR. REFLEX

33741-MR1-671

$17.08

14

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.80

14

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.80

14

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.80

14

BULB (12V8W)

34909-505-003

$2.80

14

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.80

15

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.48

16

NUT, SPECIAL (6X7)

61304-958-003

$3.01

17

COLLAR (6X15)

80101-KV2-900

Unavailable

18

BRACKET, LICENSE LIGHT

80120-MZ0-000

$55.57

19

COVER, LICENSE LIGHT

80121-MZ0-700

$53.75

20

RUBBER, TAILLIGHT CUSHION (SOURCE: VINTAGE PARTS INC.)

80125-MAH-000

Unavailable

21

STAY A, LICENSE LIGHT

80126-MZ0-700

$28.87

22

STAY B, LICENSE LIGHT

80127-MZ0-700

$16.30

23

STAY, LICENSE LIGHT BRACKET (NOT AVAILABLE)

80131-MBC-000

Unavailable

24

RUBBER B, LICENSE LIGHT (NOT AVAILABLE)

80132-MBC-000

Unavailable

25

BASE ASSY., LICENSE LIGHT

80135-MBC-000

Unavailable

26

BRACKET, NUMBER PLATE

84701-MZ0-000

$30.29

27

BOLT, FLANGE (5X25)

90112-GG2-900

$4.20

28

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.21

29

NUT, FLANGE (6MM)

90303-MR1-000

$1.35

30

PLUG, HOLE

90852-446-630

$2.33

31

SCREW, PAN (5X14)

93500-05014-0A

$0.75

32

SCREW, TAPPING (4X35)

93901-34880

$0.46

33

NUT, HEX. (4MM)

94001-04000-0S

$0.94

34

NUT, FLANGE (6MM)

94050-06000

$0.59

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

35

WASHER, PLAIN (6MM)

94101-06800

Unavailable

36

WASHER, PLAIN (4MM)

94103-04000

$0.65

37

BOLT, FLANGE (6X18)

95701-06018-07

$1.48

38

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
