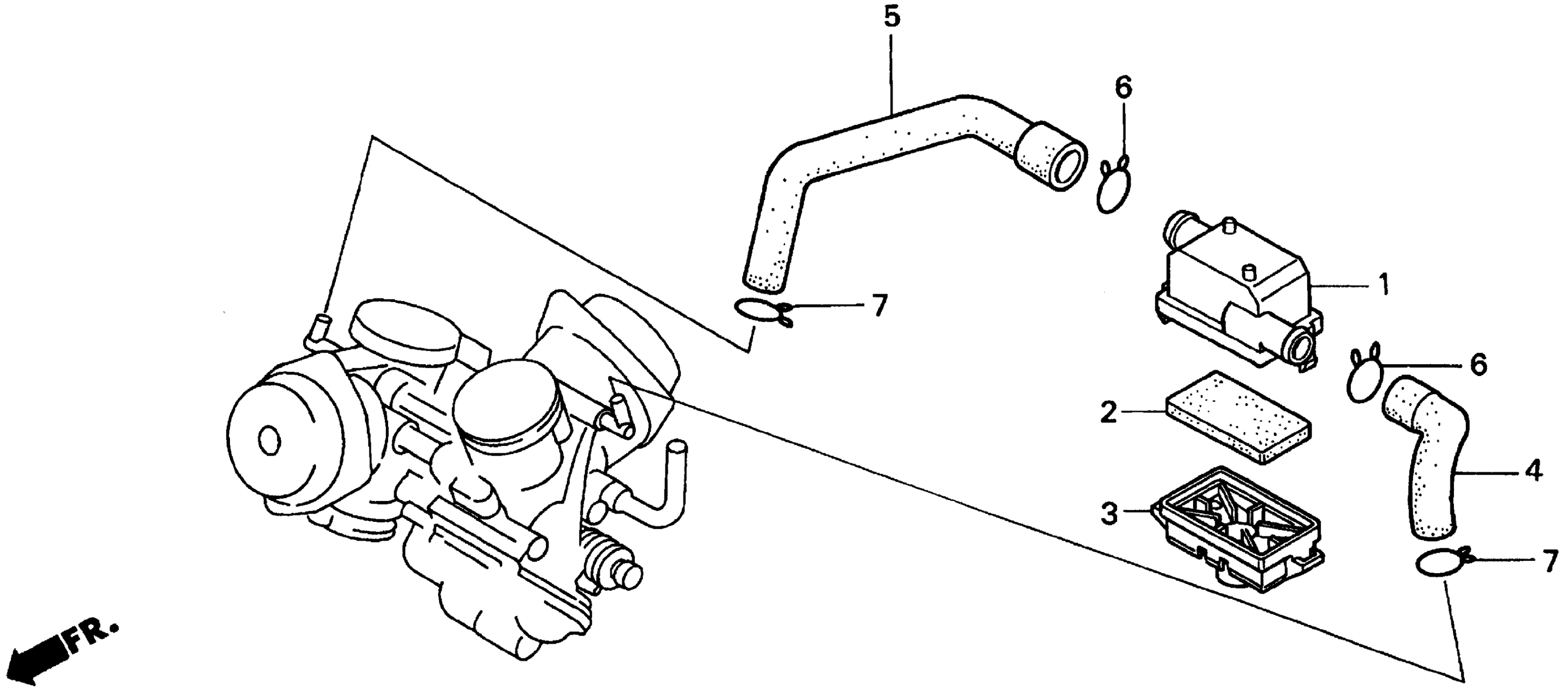

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 SUB AIR CLEANER Diagram

#

Description

Price

1

CASE, SUB-AIR CLEANER

17256-MAH-610

$10.37

2

FILTER, SUB-AIR CLEANER

17258-MAH-610

$2.85

3

COVER, SUB-AIR CLEANER

17259-MAA-A00

Unavailable

4

TUBE, R. SUB-AIR CLEANER

17261-MAA-A00

Unavailable

5

TUBE, L. SUB-AIR CLEANER

17262-MAA-A00

Unavailable

6

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

7

CLIP, TUBE (B16)

90643-MK3-781

$2.07
