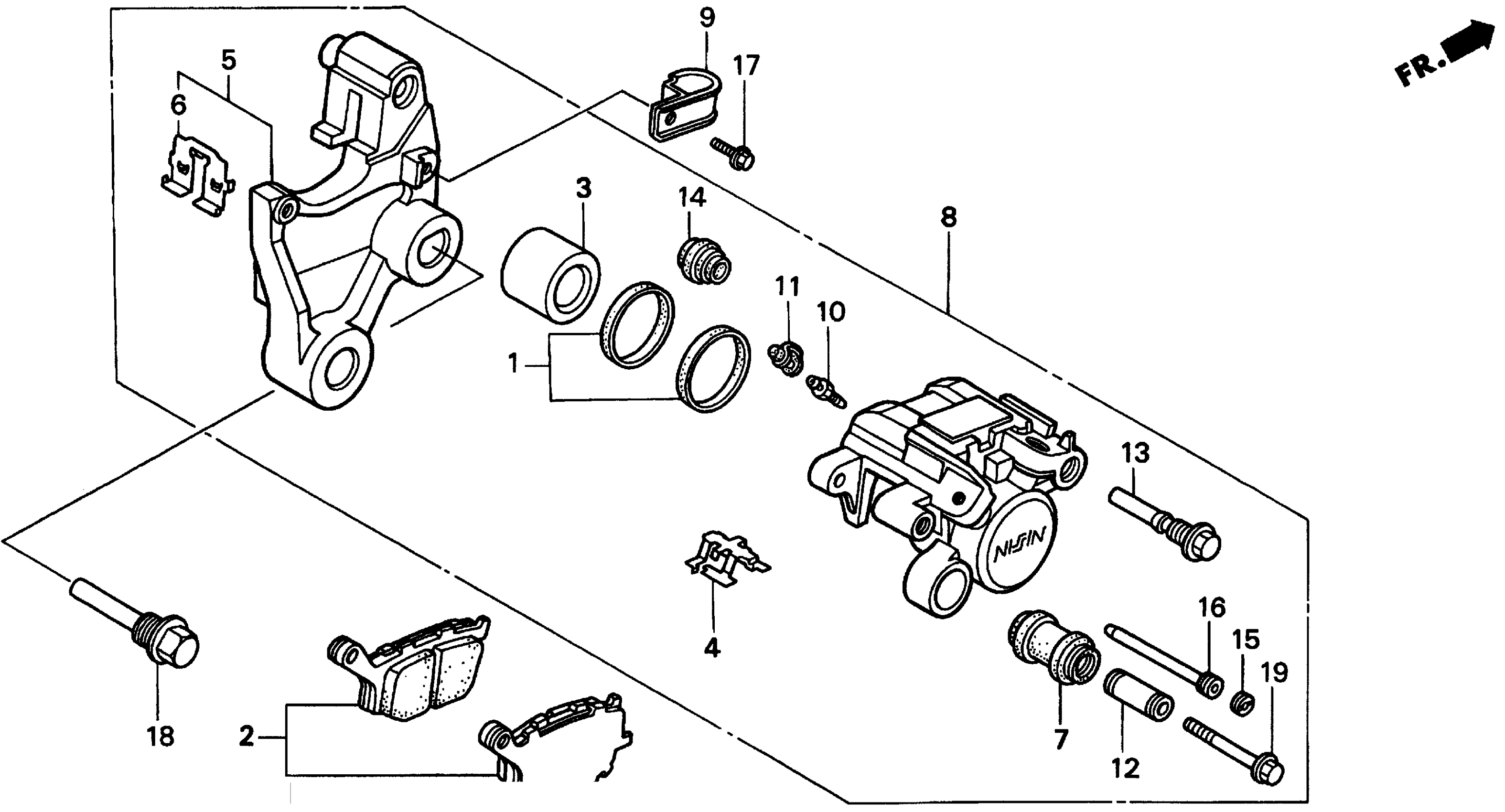

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-443-405

$13.23

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$53.45

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PAD SET, RR.

43105-MW0-425

$53.45

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-KT7-761

$8.68

BRACKET, RR. BRAKE

43110-MAH-671

Unavailable

RETAINER

43112-MV9-016

$10.65

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. BRAKE

43150-MAH-315

Unavailable

CLAMP, RR. BRAKE HOSE This part replaces 43350-KBV-000.

43350-MBZ-G00

$5.62

CLAMP, RR. BRAKE HOSE

43350-MBZ-G00

$5.62

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, FLANGE (6X10) This part replaces 90131-MR1-000.

96001-06010-02

$1.54

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

BOLT, BRAKE STOPPER

90158-MN5-000

$34.21

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
