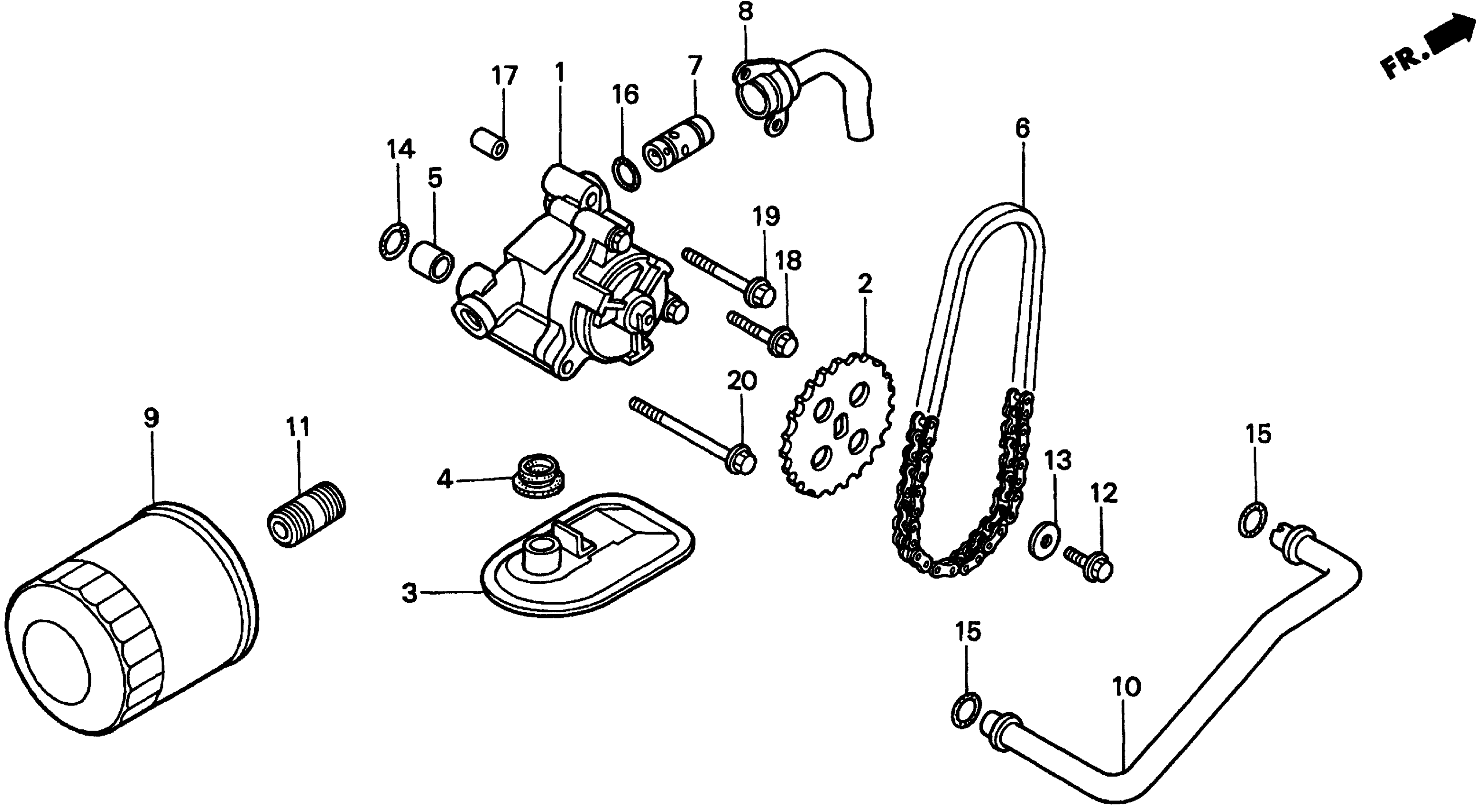

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-MAA-000

Unavailable

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MZ5-000

$38.52

STRAINER, OIL

15153-MAA-000

Unavailable

GASKET, OIL STRAINER

15154-425-000

$7.99

COLLAR, O-RING

15155-300-000

$3.47

CHAIN, STARTING (56L) This part replaces 15161-ME5-003.

28101-KB4-671

$38.46

CHAIN, STARTING (56L)

28101-KB4-671

$38.46

VALVE ASSY., RELIEF

15220-ME9-770

$43.41

PIPE, OIL RELIEF

15240-MAH-000

$48.21

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

PIPE, OIL

15511-MG8-000

$21.32

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

WASHER (6X2.3)

90488-MB0-000

$4.37

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

O-RING (14.8X2.4) (NOK) This part replaces 91356-MA6-003.

91356-MA6-005

$1.78

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X70)

95701-06070-00

$2.19
