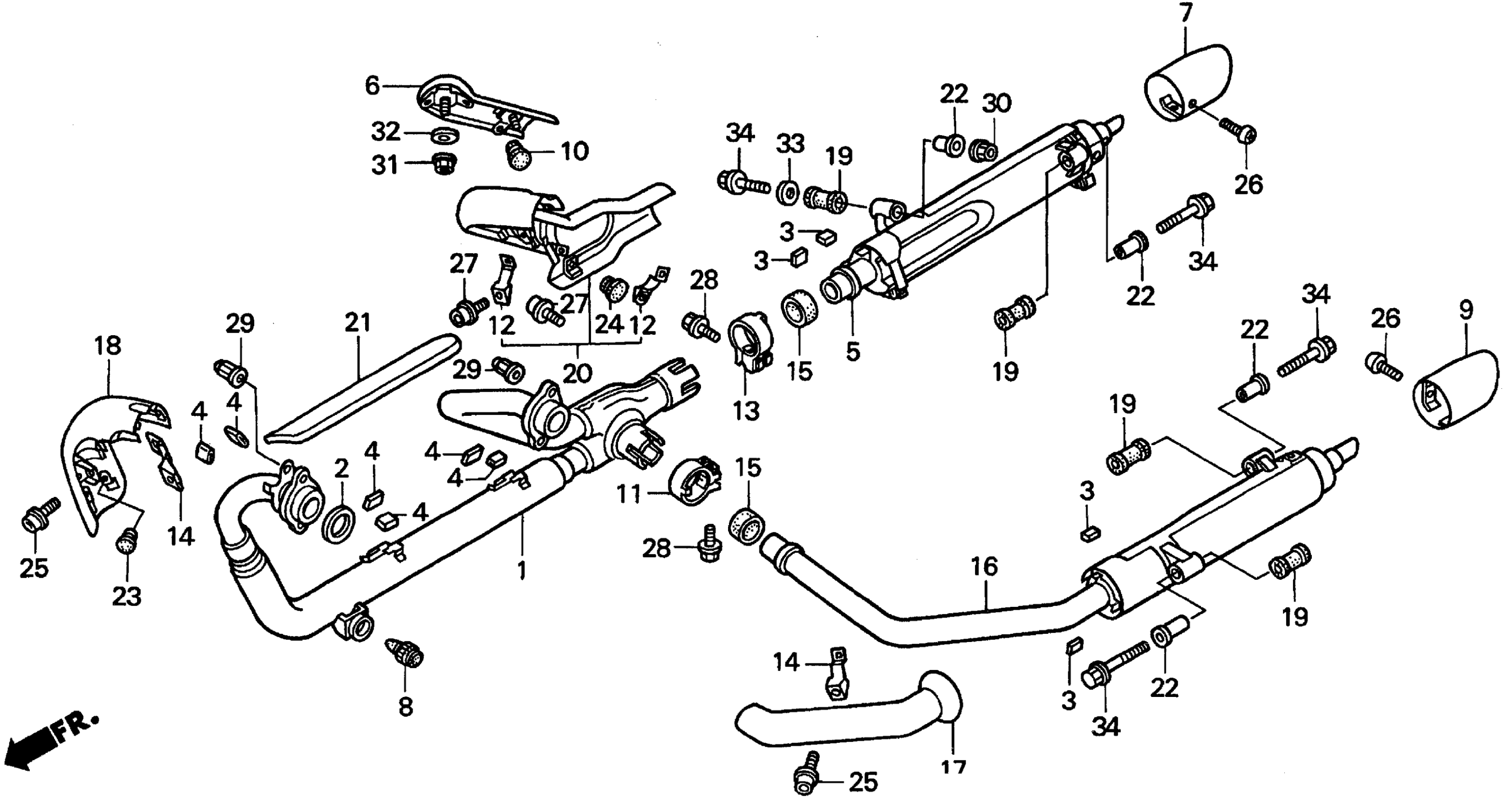

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX. (NOT AVAILABLE)

18150-MBC-003

Unavailable

2

GASKET, EX. PIPE

18291-MM8-880

$6.65

3

RUBBER, PROTECTOR GASKET

18293-MBC-000

$3.52

4

RUBBER, PROTECTOR

18293-MN0-000

$1.94

5

MUFFLER, R. (NOT AVAILABLE)

18305-MBC-003

Unavailable

6

PROTECTOR, RR. EX. PIPE

18315-MAH-003

$57.97

7

TAILPIECE, R. (NOT AVAILABLE)

18316-MBC-003

Unavailable

8

RUBBER, STOPPER

18319-MAH-000

$4.88

9

TAILPIECE, L. (NOT AVAILABLE)

18336-MBC-003

Unavailable

10

GROMMET A, MUFFLER PROTECTOR

18366-GW8-670

$3.86

11

BAND, MUFFLER

18376-KG0-003

$16.91

12

BAND, EX. MUFFLER

18376-MAA-A01

Unavailable

13

BAND B, MUFFLER

18377-MAA-A01

Unavailable

14

BAND, RR. EX. PIPE COVER

18377-MAH-000

$13.04

15

GASKET, MUFFLER

18392-MK4-000

$12.26

16

MUFFLER, L. (NOT AVAILABLE)

18405-MBC-003

Unavailable

17

COVER, L. MUFFLER (SOURCE: VINTAGE PARTS INC.)

18415-MBC-003

Unavailable

18

COVER A, FR. EX. PIPE

18421-MAH-003

Unavailable

19

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$5.90

20

COVER, RR. EX. PIPE (NOT AVAILABLE)

18422-MBC-003

Unavailable

21

PROTECTOR, FR. EX. PIPE (NOT AVAILABLE)

18423-MBC-003

Unavailable

22

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.67

23

GROMMET, MUFFLER COVER

18430-MAH-000

Unavailable

24

GROMMET, EX. PIPE COVER (SOURCE: VINTAGE PARTS INC.)

18430-MBC-000

$3.36

25

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.80

26

SCREW, PAN (6X10)

90105-MM4-000

$2.01

27

BOLT, FLANGE SOCKET (6X25)

90106-MAJ-G40

$4.68

28

BOLT, FLANGE (8X35)

90161-ML7-000

$3.41

29

NUT, CAP (8MM)

90304-ME1-670

$5.54

30

NUT, FLANGE (8MM)

90309-MR1-770

$2.90

31

NUT-WASHER (5MM)

94070-05080

$0.76

32

WASHER, PLAIN (5MM)

94103-05800

$0.90

33

WASHER, PLAIN (8MM)

94103-08700

$0.86

34

BOLT, FLANGE (8X45)

95701-08045-07

$2.07
