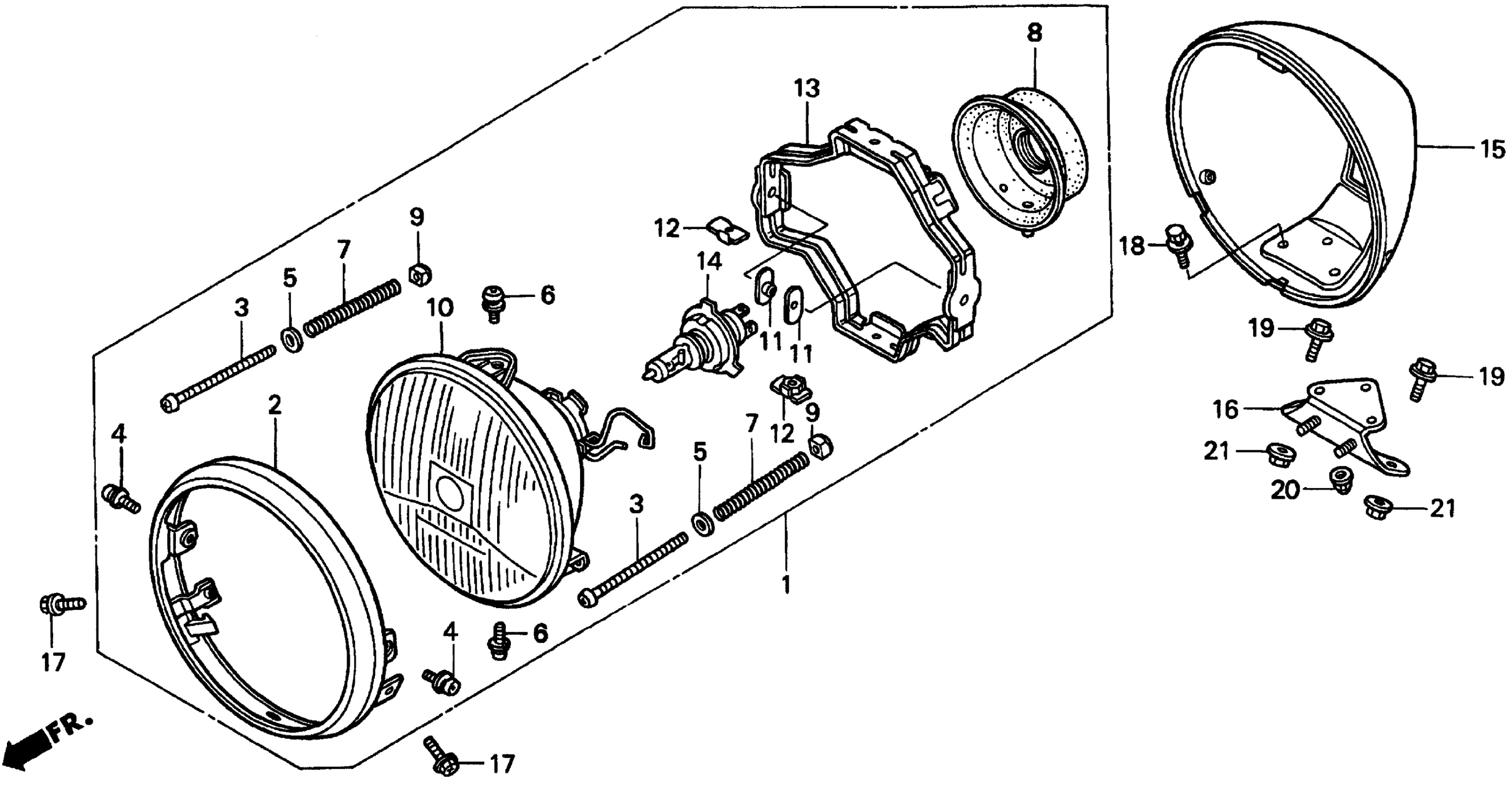

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 HEADLIGHT Diagram

HEADLIGHT ASSY. (12V 60/55W) (STANLEY)

33100-MBC-003

$277.93

RIM, HEADLIGHT

33101-MAH-671

$60.38

SCREW, BEAM ADJUSTING

33103-MAH-671

$5.13

SCREW-WASHER

33104-MAH-671

$4.01

WASHER

33105-MAH-671

$1.84

SCREW-WASHER

33106-MAH-671

Unavailable

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.80

COVER, RUBBER

33112-MM9-013

$10.09

NUT, BEAM ADJUSTING

33118-438-841

$2.23

HEADLIGHT UNIT

33120-MAH-671

$114.01

NUT, SPECIAL

33128-MAH-671

$3.79

NUT

33129-MAH-671

Unavailable

RING, HEADLIGHT

33153-MBC-003

Unavailable

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$37.18

CASE, HEADLIGHT (SOURCE: VINTAGE PARTS INC.)

61301-MAH-003

Unavailable

STAY, HEADLIGHT (SOURCE: VINTAGE PARTS INC.)

61311-MBC-000

Unavailable

BOLT, SOCKET (5X12)

90007-MBC-000

$6.49

BOLT-WASHER (6X18) (SOURCE: VINTAGE PARTS INC.)

90116-MAH-003

Unavailable

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

NUT, CAP (6MM)

90202-ZV0-000

$2.91

NUT, FLANGE (8MM)

94050-08000

$1.49
