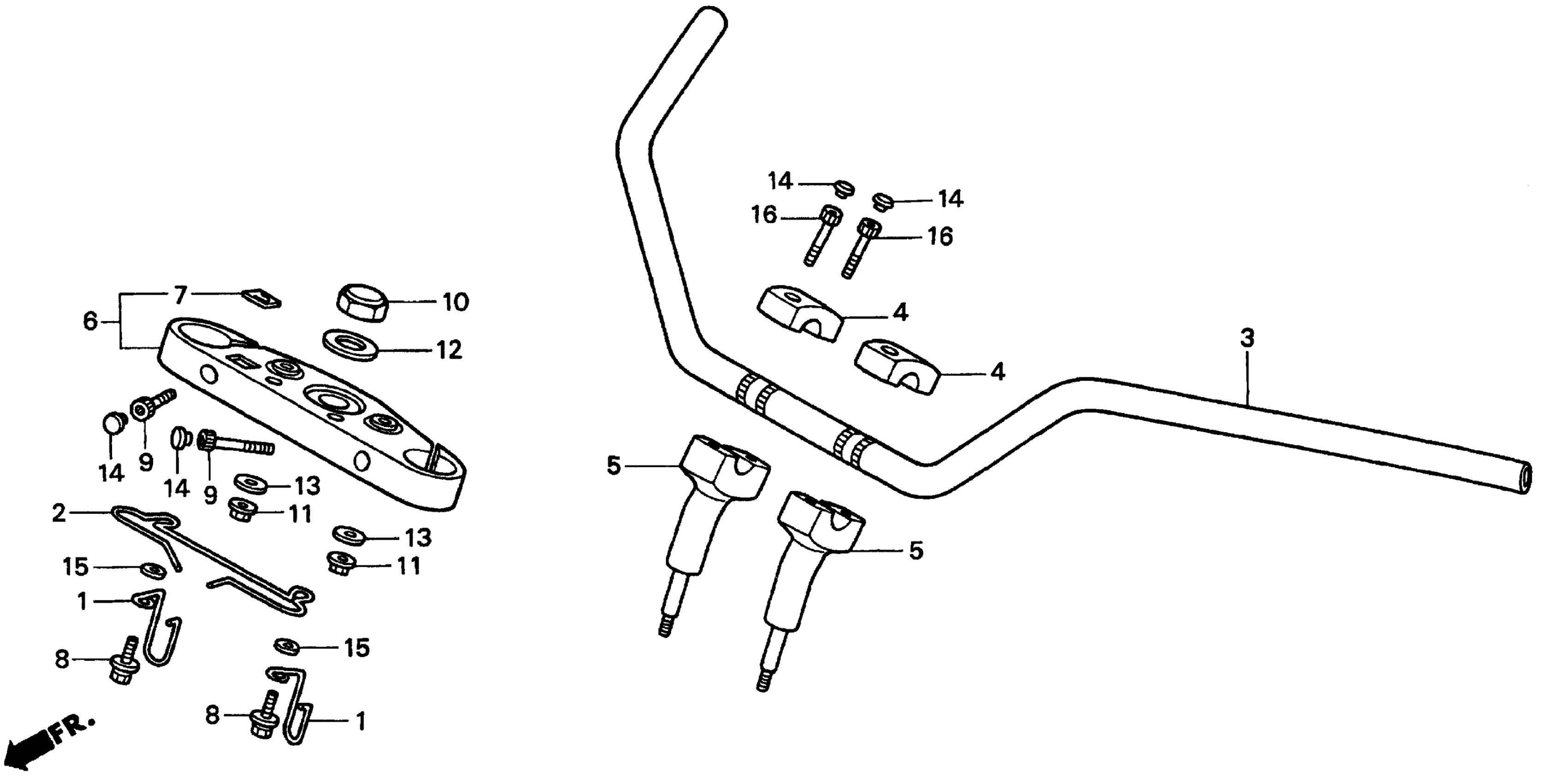

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 HANDLEBAR + TOP BRIDGE Diagram

CLIP, HARNESS

38128-MM8-000

$5.26

GUIDE, CABLE

50337-MM8-000

$22.54

HANDLEBAR

53100-MAH-A40

$285.05

HOLDER, HANDLE (UPPER)

53131-MM8-000

$19.24

HOLDER, HANDLE (LOWER)

53231-MM8-000

$37.54

BRIDGE, FORK TOP

53300-MM8-881

Unavailable

EMBLEM, PRODUCT (MARUI) This part replaces 86150-KPG-900.

86150-KPG-901

$3.62

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

BOLT-WASHER (6X20)

90103-MBC-000

$2.64

BOLT, SOCKET (7X55)

90167-MM8-000

Unavailable

NUT, STEERING STEM

90304-415-000

$19.83

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

WASHER, STEERING STEM

90503-283-000

$4.37

WASHER, HANDLE CUSHION

90535-KB9-000

$6.14

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

BOLT, SOCKET (8X32)

96700-08032-10

$1.62
