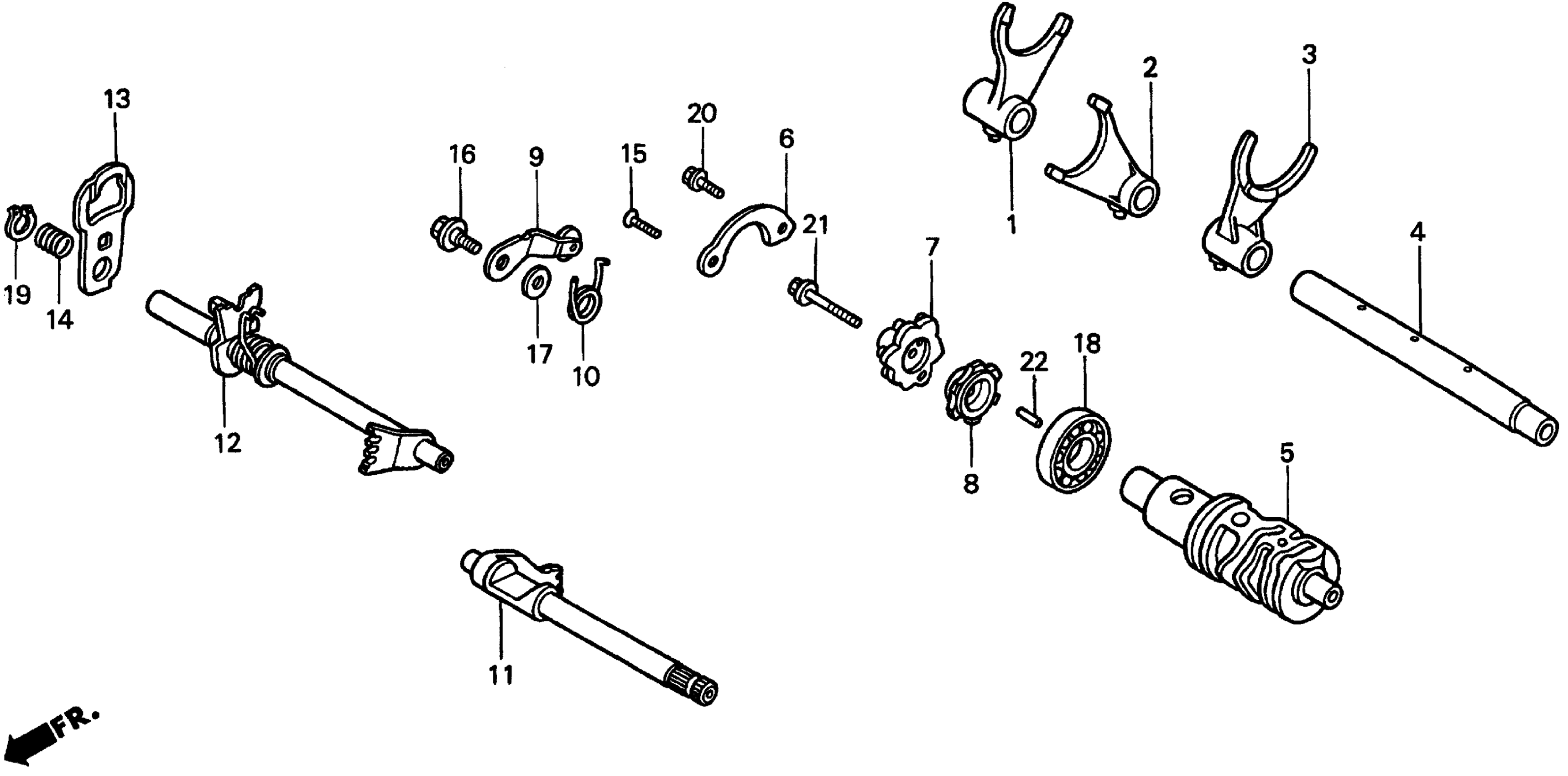

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-MAA-A00

Unavailable

FORK, CENTER GEARSHIFT

24212-MAA-A00

Unavailable

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-MAA-A00

Unavailable

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-MAA-610

Unavailable

DRUM, GEARSHIFT

24302-MG8-000

Unavailable

PLATE, SHIFT DRUM BEARING SETTING

24310-MK7-670

$10.13

CAM, GEARSHIFT

24411-MAH-000

Unavailable

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

STOPPER, GEARSHIFT DRUM

24430-MAH-000

Unavailable

SPRING, SHIFT DRUM STOPPER

24435-MM8-000

Unavailable

SPINDLE, GEARSHIFT (A)

24610-MAH-000

Unavailable

SPINDLE, GEARSHIFT (B)

24615-MAH-000

Unavailable

PLATE, GEARSHIFT

24621-MG8-000

Unavailable

SPRING, GEARSHIFT PLATE

24631-MAH-300

$3.90

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

BEARING, RADIAL BALL (17X32X7)

91006-MCK-A01

Unavailable

BEARING, RADIAL BALL (17X32X7) This part replaces 91006-MG8-003.

91006-MCK-A01

Unavailable

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

ROLLER (3X10)

96222-30100

$1.49
