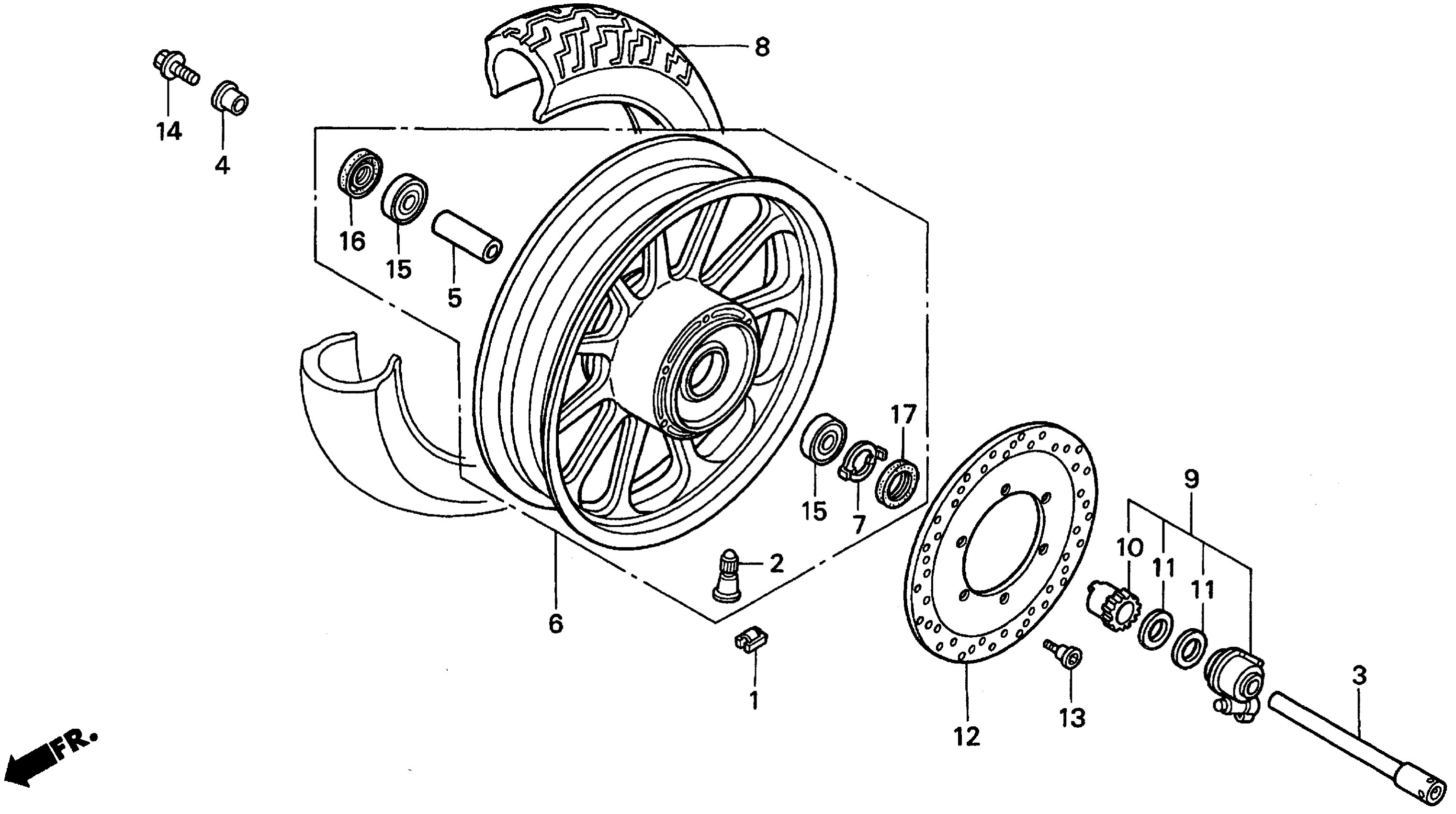

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MAH-671

$61.88

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$19.15

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$16.92

WHEEL SUB-ASSY., FR. This part replaces 44650-MBC-000.

44650-MBC-020

Unavailable

RETAINER, GEAR BOX

44680-ML7-000

$5.08

TIRE, FR. (130/80R18) (M/C 66H) (DUNLOP) This part replaces 44711-MBC-004.

44711-MBC-014

Unavailable

TIRE, FR. (130/80R18) (M/C 66H) (DUNLOP)

44711-MBC-014

Unavailable

BOX ASSY., SPEEDOMETER GEAR

44800-MR1-003

$111.47

GEAR, SPEEDOMETER

44806-MR1-003

$31.09

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

DISK, FR. BRAKE

45251-MBC-000

Unavailable

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, FR. AXLE

90305-ML7-000

$10.50

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MBC-004.

91052-MAE-004

$27.50

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66
