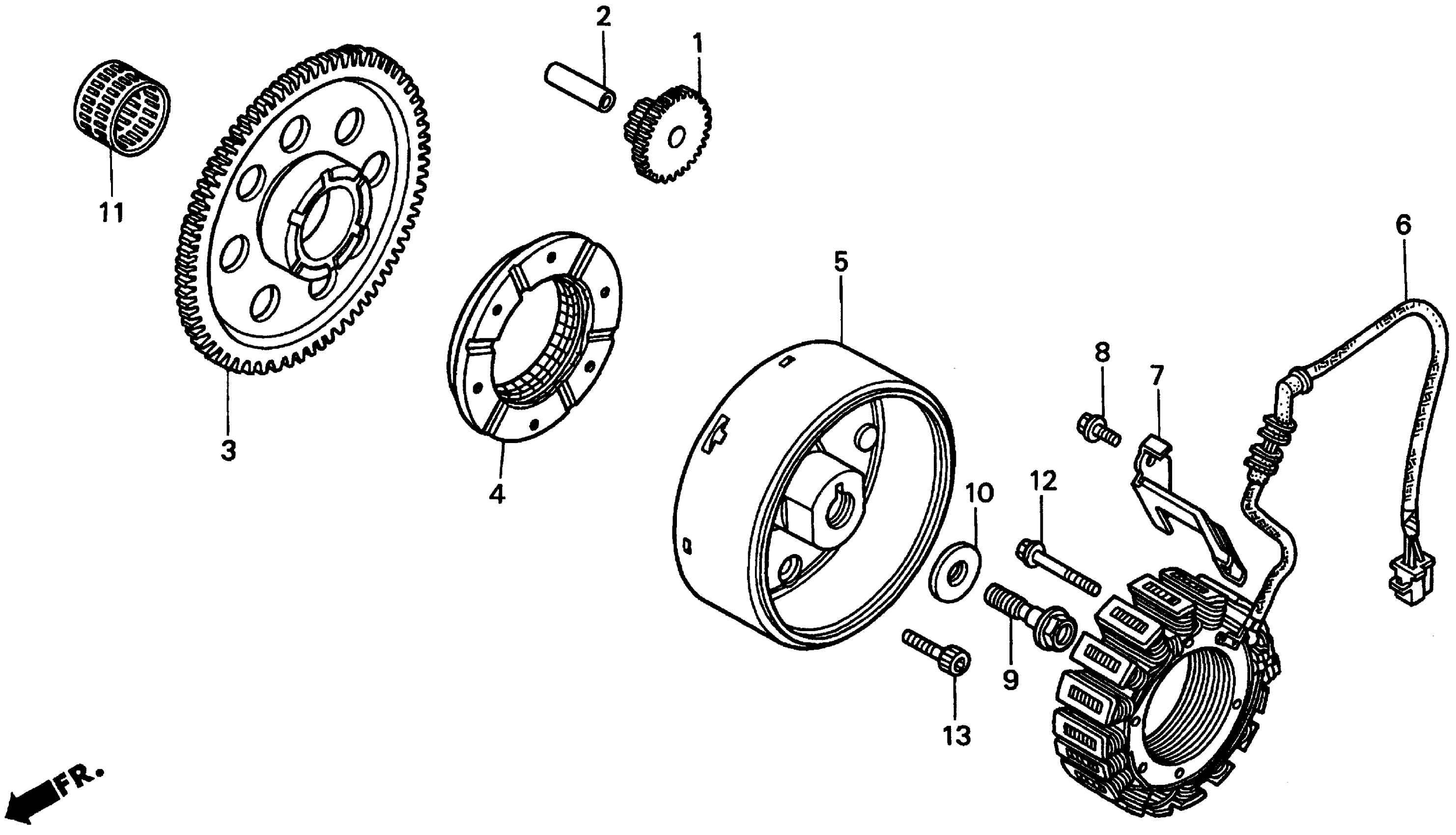

Honda VT1100TA (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-1A300001 ALTERNATOR Diagram

GEAR, STARTER REDUCTION (50T)

28101-MG8-000

Unavailable

PIN (12X44)

28102-MG8-000

Unavailable

GEAR, STARTER DRIVEN

28110-MM8-010

Unavailable

CLUTCH ASSY., STARTER (OUTER)

28125-MAA-A01

Unavailable

FLYWHEEL

31110-MCK-A01

Unavailable

STATOR

31120-MAH-005

$627.75

CLAMP, ALTERNATOR WIRE

32961-MAH-000

Unavailable

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.97

BOLT, UBS (12X45)

90025-MM8-000

Unavailable

WASHER (12.5X34X5)

90402-PC6-000

$21.19

BEARING, NEEDLE (34X39X23.7) (TOYO)

91061-MK5-013

Unavailable

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, SOCKET (8X16)

96700-08016-10

$1.54
