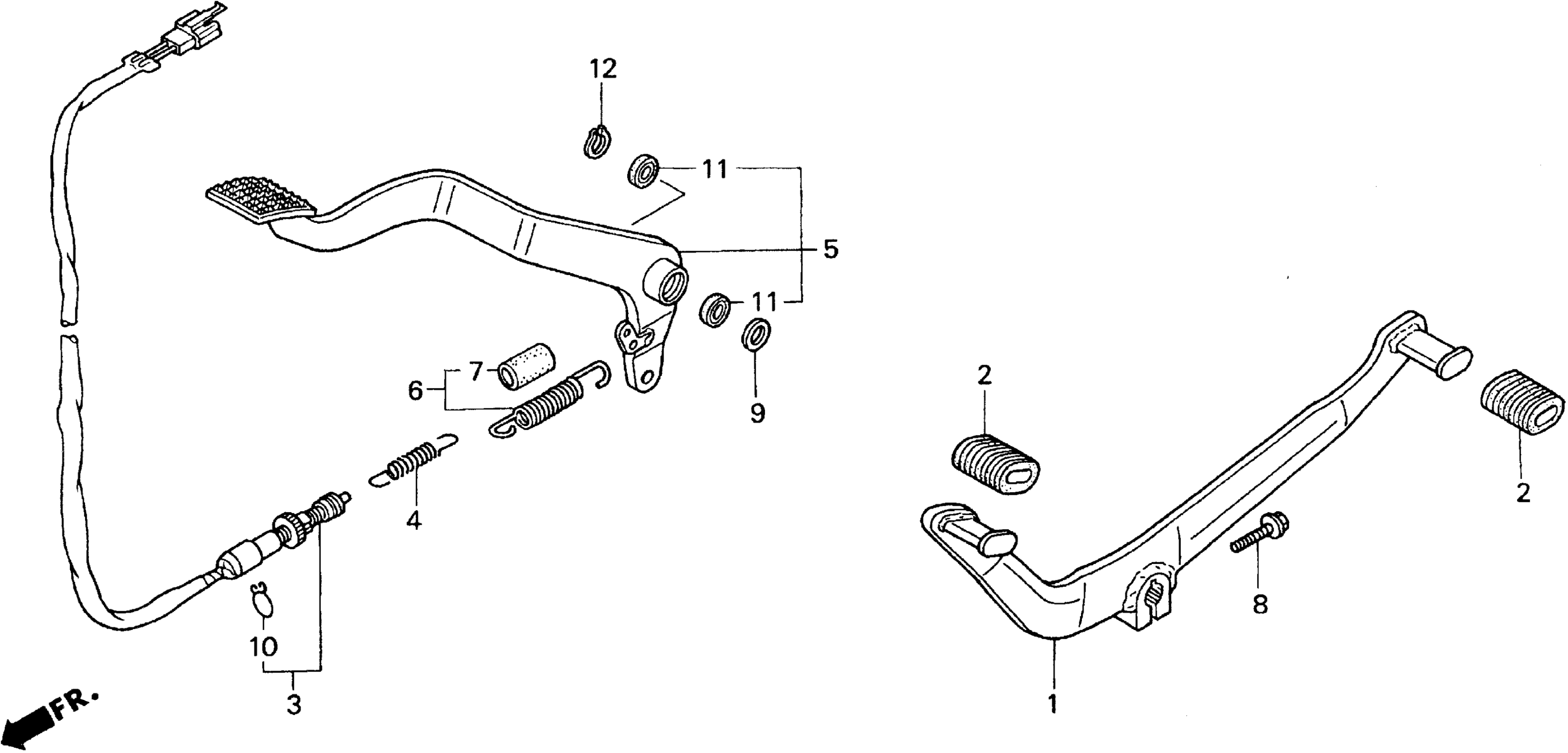

Honda VT1100TA (00) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC370-YA200001 PEDAL Diagram

PEDAL, GEARSHIFT

24710-MAH-000

Unavailable

RUBBER, CHANGE PEDAL

24781-371-000

$4.89

SW ASSY,REAR STOP This part replaces 35350-MAH-003.

35350-GBZ-700

Unavailable

SPRING, STOP SWITCH

35357-ME9-000

$4.53

PEDAL ASSY., BRAKE

46500-MAH-000

Unavailable

SPRING SET, BRAKE PEDAL

46513-KT0-670

Unavailable

TUBE, BRAKE PEDAL SPRING

46515-KL4-000

Unavailable

BOLT, FLANGE (6X20)

90014-MN5-000

$5.01

WASHER, PLAIN (15MM)

90510-KY1-000

$2.71

CLIP, SWITCH COVER

90601-KAF-003

$2.47

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.63

DUST SEAL (15X20X3)

91251-MT4-003

$3.63

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63
