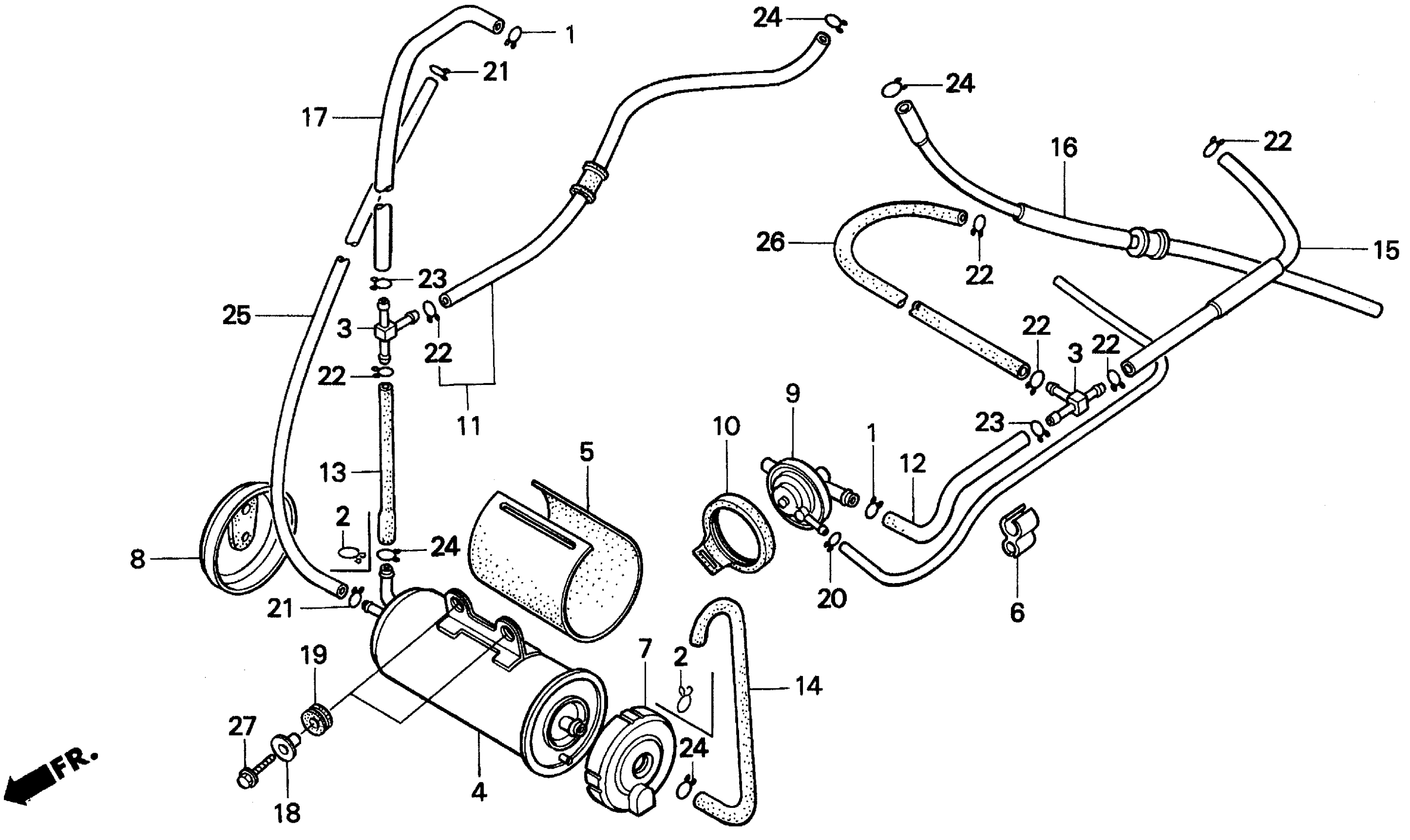

Honda VT1100CAC (95) SHADOW 1100, USA, VIN# 1HFSC181-SA900001 VT1100C EVAP CANISTER (AC) 95-96 Diagram

#

Description
Price

1

CLIP, PURGE CONTROL VALVE TUBE

15772-MB3-000

Unavailable

3

JOINT, FUEL TUBE

16961-MK7-000

$21.68

4

CANISTER, EVAPORATIVE EMISSION

17410-MM8-792

Unavailable

5

COVER, CANISTER

17411-MG8-730

$13.85

6

CLIP, TUBE (NOT AVAILABLE)

17413-MF5-830

Unavailable

7

COVER, CANISTER (A)

17415-MF8-791

$13.66

8

COVER, CANISTER B

17416-MF8-790

Unavailable

9

VALVE, PURGE CONTROL

17440-MF8-791

Unavailable

10

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

11

TUBE ASSY., AIR VENT CONTROL VALVE (NOT AVAILABLE)

17460-MM8-790

Unavailable

12

TUBE A, PURGE (SOURCE: VINTAGE PARTS INC.)

17461-MM8-790

Unavailable

13

TUBE, CANISTER (NOT AVAILABLE)

17462-MM8-790

Unavailable

14

TUBE, AIR

17464-MM8-790

Unavailable

15

TUBE, RR. CARBURETOR JOINT (SOURCE: VINTAGE PARTS INC.)

17465-MM8-790

Unavailable

16

TUBE ASSY., AIR VENT (NOT AVAILABLE)

17466-MM8-790

Unavailable

17

TUBE, PURGE LINE (NOT AVAILABLE)

17468-MM8-790

Unavailable

18

COLLAR, SETTING

61104-422-000

$6.91

19

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

CLIP, TUBE (B8)

95002-02080

$1.80

22

CLIP, TUBE (B10)

95002-02100

$1.90

23

CLIP, TUBE (B12)

95002-02120

$2.00

24

CLIP, TUBE (B12.5)

95002-02130

$1.49

25

BULK HOSE, VACUUM (4.5X1000) (4.5X900)

95005-45001-10M

$23.47

26

BULK HOSE, VACUUM (5.5X8000) (5.3X320)

95005-55008-10M

Unavailable

27

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
