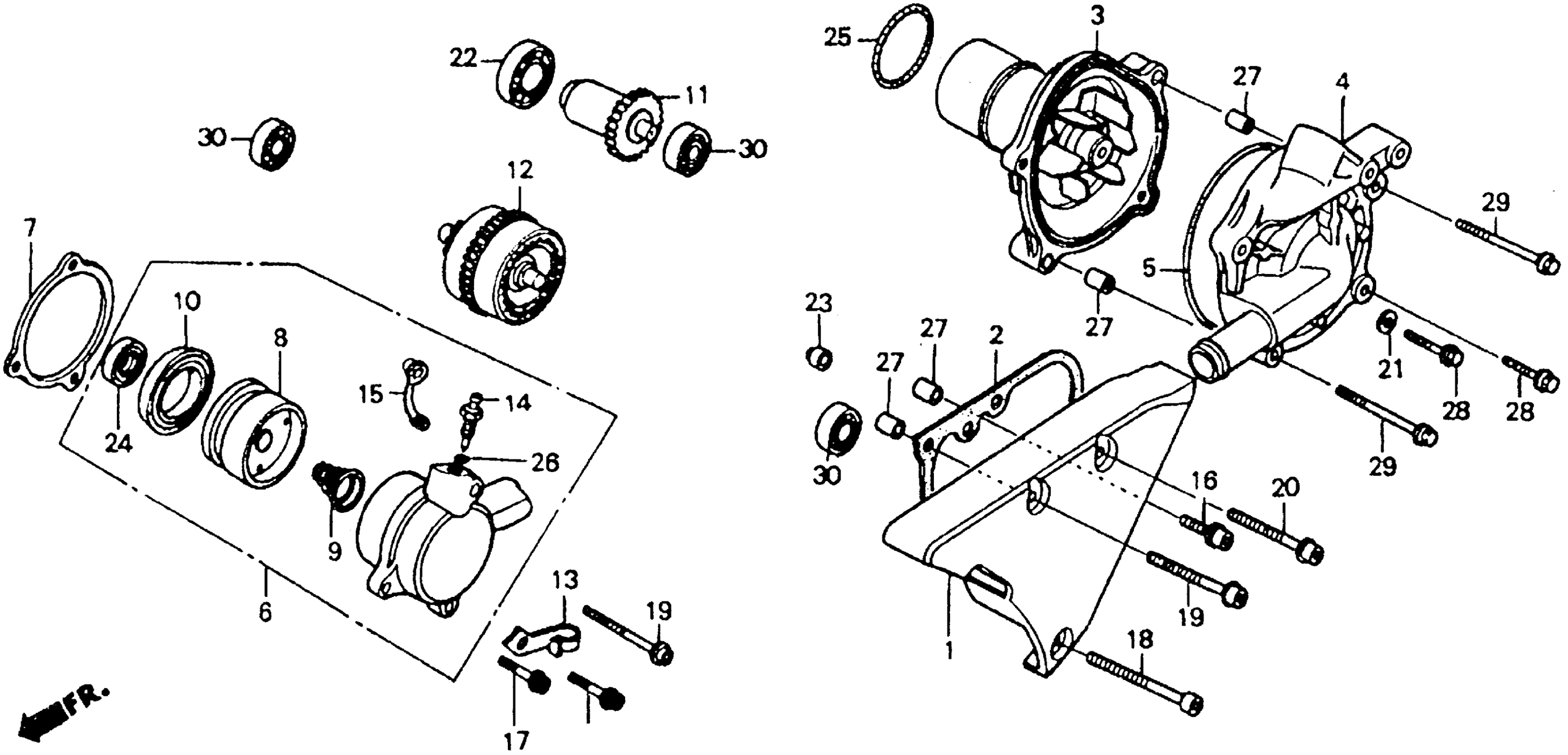

Honda VT1100CAC (93) SHADOW 1100, USA, VIN# 1HFSC181-PA700001 WATER PUMP Diagram

#

Description
Price

1

COVER, STARTER

11364-MM8-000

Unavailable

2

GASKET, STARTER COVER This part replaces 11365-MM8-881.

11365-MM8-P00

$6.63

3

WATER PUMP This part replaces 19200-ME9-030.

19200-ME9-040

Unavailable

3

WATER PUMP

19200-ME9-040

Unavailable

4

COVER, WATER PUMP

19221-MAA-000

Unavailable

4

COVER, WATER PUMP This part replaces 19221-MK7-772.

19221-MAA-000

Unavailable

5

GASKET, WATER PUMP COVER

19226-ME9-000

$5.87

6

CYLINDER ASSY., CLUTCH SLAVE

22860-MM8-000

Unavailable

7

INSULATOR, CLUTCH SLAVE CYLINDER

22862-MB0-000

$9.33

8

PISTON, SLAVE CYLINDER

22863-MB0-003

$32.02

9

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

10

CUP, PISTON

22865-MB0-003

$13.86

11

SHAFT, STARTER DRIVE (36T)

28130-MG8-000

Unavailable

12

LIMIT ASSY., TORQUE (15T)

28140-MG8-000

Unavailable

13

CLAMP, CABLE

32111-MM8-000

Unavailable

14

SCREW, BLEEDER

43352-MG9-006

$5.44

15

CAP, BLEEDER

43353-461-771

$5.05

16

BOLT, FLANGE SOCKET (6X32)

90012-ME5-000

Unavailable

17

BOLT, FLANGE SOCKET (6X35)

90081-MG8-000

$5.11

18

BOLT, SOCKET (6X75)

90082-MM8-000

Unavailable

19

BOLT, FLANGE SOCKET (6X45)

90083-MM8-000

Unavailable

20

BOLT, SOCKET (6X40)

90007-KN8-730

$4.69

20

BOLT, SOCKET (6X40) This part replaces 90093-KL8-000.

90007-KN8-730

$4.69

21

WASHER, SEALING (6MM)

90441-706-000

$1.49

22

BEARING, RADIAL BALL (6804) (KOYO)

91002-MG8-003

$24.46

23

CAP, RUBBER

91201-MG8-000

$2.93

24

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$4.06

25

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

26

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

27

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

28

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

29

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

29

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

30

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
