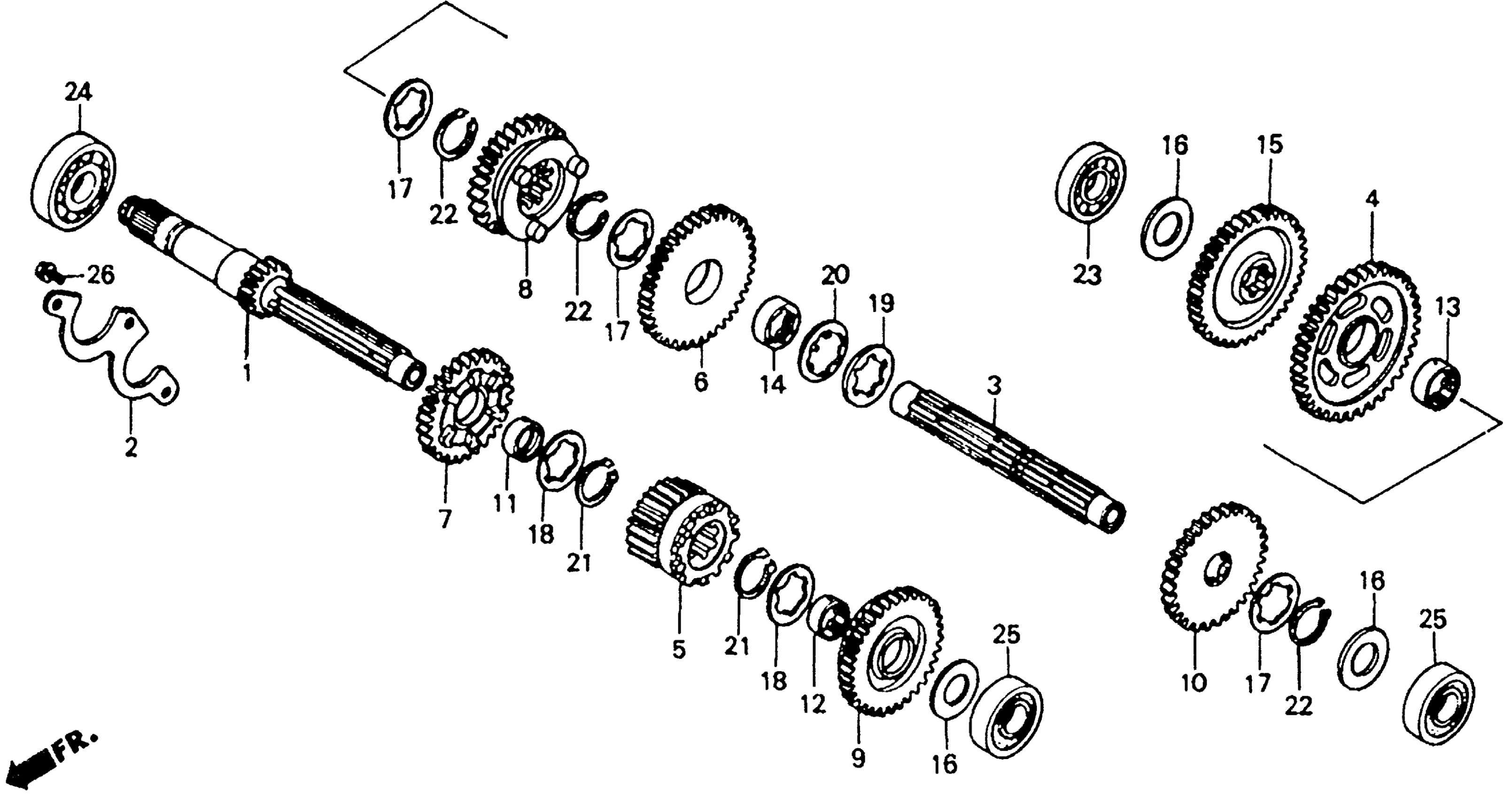

Honda VT1100CAC (93) SHADOW 1100, USA, VIN# 1HFSC181-PA700001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (16T)

23211-MM8-000

Unavailable

2

PLATE, BEARING

23212-MK7-670

$15.64

3

COUNTERSHAFT, TRANSMISSION

23220-MM8-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (38T)

23421-MM8-000

Unavailable

5

GEAR, MAINSHAFT SECOND (22T) This part replaces 23431-MM8-000.

23431-MR6-670

Unavailable

5

GEAR, MAINSHAFT SECOND (22T)

23431-MR6-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MM8-000

Unavailable

7

GEAR, MAINSHAFT THIRD (26T)

23451-MM8-880

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T)

23461-MM8-000

Unavailable

9

GEAR, MAINSHAFT FOURTH (30T)

23471-MM8-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (24T)

23481-MM8-000

Unavailable

11

COLLAR (28X13) This part replaces 23511-MM8-000.

23495-MM5-000

$23.00

12

COLLAR, SPLINE (28X26X17)

23512-MM8-000

Unavailable

13

COLLAR, SPLINE (30X28X15.7)

23513-MM8-000

Unavailable

14

COLLAR, SPLINE (30X28X11)

23514-MM8-000

Unavailable

15

GEAR, FINAL DRIVE (36T)

23725-MM8-000

Unavailable

16

WASHER (20X37X2)

90404-KK0-000

$4.44

17

WASHER, THRUST (30MM)

90451-MG8-000

Unavailable

18

WASHER, THRUST (28MM)

90451-422-000

$8.36

19

WASHER, THRUST (30MM)

90461-MJ4-670

Unavailable

20

WASHER, LOCK (30MM)

90462-MJ4-670

Unavailable

21

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

22

CIRCLIP (30MM)

90604-MG8-000

$3.43

23

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

24

BEARING, RADIAL BALL (305/28) (TOYO)

91004-MG8-003

Unavailable

25

BEARING, SEALED BALL (20X52X15) (TOYO)

91005-MG8-003

Unavailable

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
