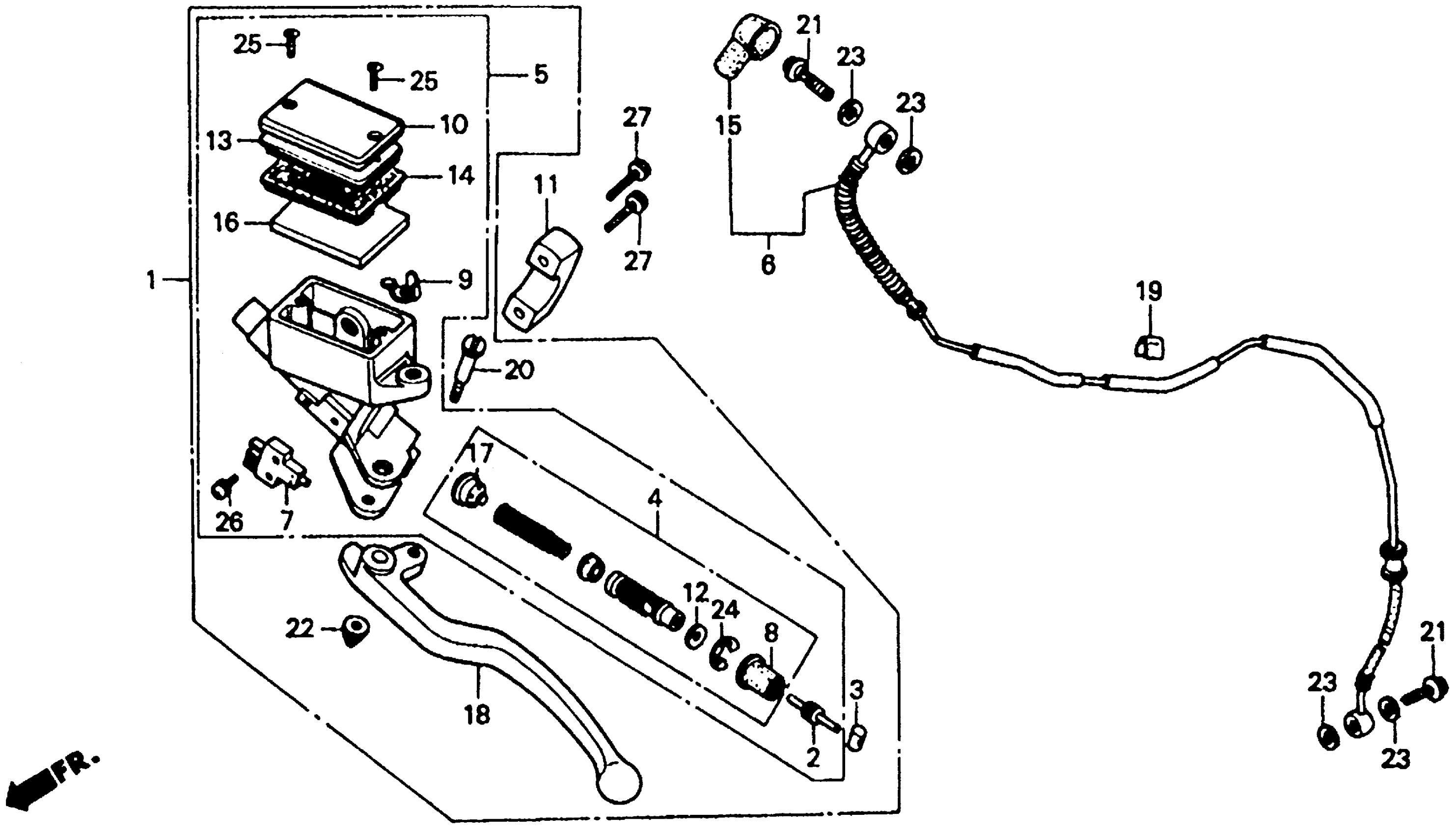

Honda VT1100CAC (93) SHADOW 1100, USA, VIN# 1HFSC181-PA700001 CLUTCH MASTER CYLINDER Diagram

MASTER CYLINDER ASSY., CLUTCH (NISSIN)

22880-MM8-881

Unavailable

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MG8-671

Unavailable

PIPE, CLUTCH

22900-MM8-000

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-MM8-671

Unavailable

HOLDER, MASTER CYLINDER

45517-MM8-671

Unavailable

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

FLOAT, FR. MASTER CYLINDER

45523-MG9-006

Unavailable

VALVE, CHECK

46140-MG8-006

Unavailable

LEVER, L. HANDLE This part replaces 53178-MJ0-921.

53178-MM5-006

$21.90

LEVER, L. HANDLE

53178-MM5-006

$21.90

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
