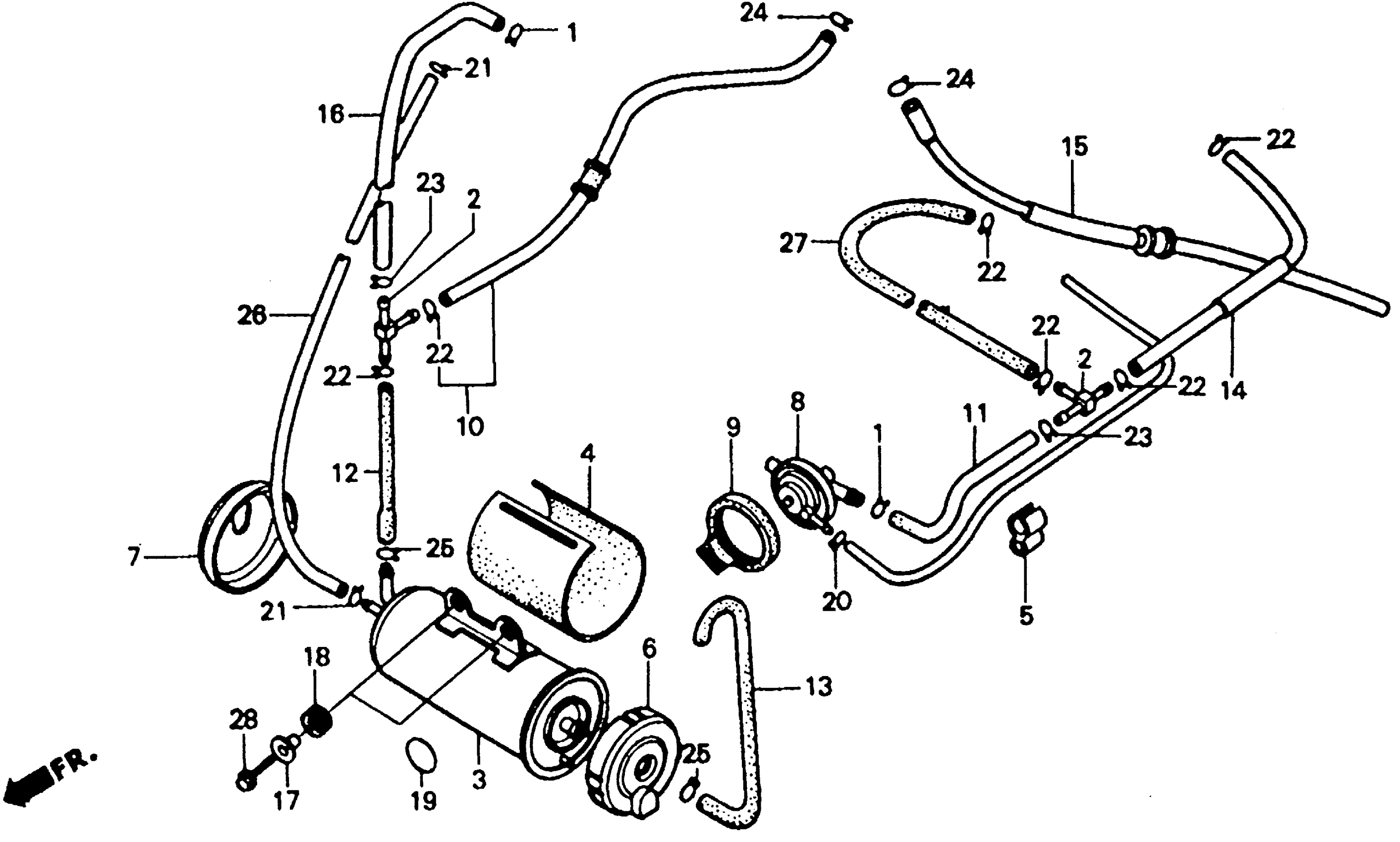

Honda VT1100CAC (90) SHADOW 1100, USA, VIN# 1HFSC181-LA500001 TO 1HFSC181-LA500300 CANISTER (AC) Diagram

#

Description
Price

1

CLIP, TUBE (P.C.V.)

15772-MB3-000

Unavailable

2

JOINT, FUEL TUBE

16961-MK7-000

$21.68

3

CANISTER, EVAPORATIVE EMISSION This part replaces 17410-MM8-791.

17410-MM8-792

Unavailable

3

CANISTER, EVAPORATIVE EMISSION

17410-MM8-792

Unavailable

4

COVER, CANISTER

17411-MG8-730

$13.85

5

CLIP, TUBE

17413-MF5-830

Unavailable

6

COVER, CANISTER (A)

17415-MF8-791

$13.66

7

COVER, CANISTER B

17416-MF8-790

Unavailable

8

VALVE, PURGE CONTROL

17440-MF8-791

Unavailable

9

RUBBER, PURGE CONTROL VALVE SETTING

17451-ME5-760

$12.90

10

TUBE ASSY., AIR VENT CONTROL VALVE

17460-MM8-790

Unavailable

11

TUBE A, PURGE

17461-MM8-790

Unavailable

12

TUBE, CANISTER

17462-MM8-790

Unavailable

13

TUBE, AIR

17464-MM8-790

Unavailable

14

TUBE, RR. CARBURETOR JOINT

17465-MM8-790

Unavailable

15

TUBE ASSY., AIR VENT

17466-MM8-790

Unavailable

16

TUBE, PURGE LINE

17468-MM8-790

Unavailable

17

COLLAR, SETTING

61104-422-000

$6.91

18

RUBBER, HEADLIGHT CASE SETTING

61304-415-000

$3.47

19

LABEL, JACK WARNING (UPPER)

87200-MB3-880

Unavailable

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

CLIP, TUBE (B8)

95002-02080

$1.80

22

CLIP, TUBE (B10)

95002-02100

$1.90

23

CLIP, TUBE (B12)

95002-02120

$2.00

24

CLIP, TUBE (B12.5)

95002-02130

$1.49

25

CLIP, TUBE (P.C.V.)

15772-MB3-000

Unavailable

26

BULK HOSE, VACUUM (4.5X1000) (4.5X900)

95005-45001-10M

$23.47

27

BULK HOSE, VACUUM (5.5X8000) (5.3X320)

95005-55008-10M

Unavailable

28

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

28

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
