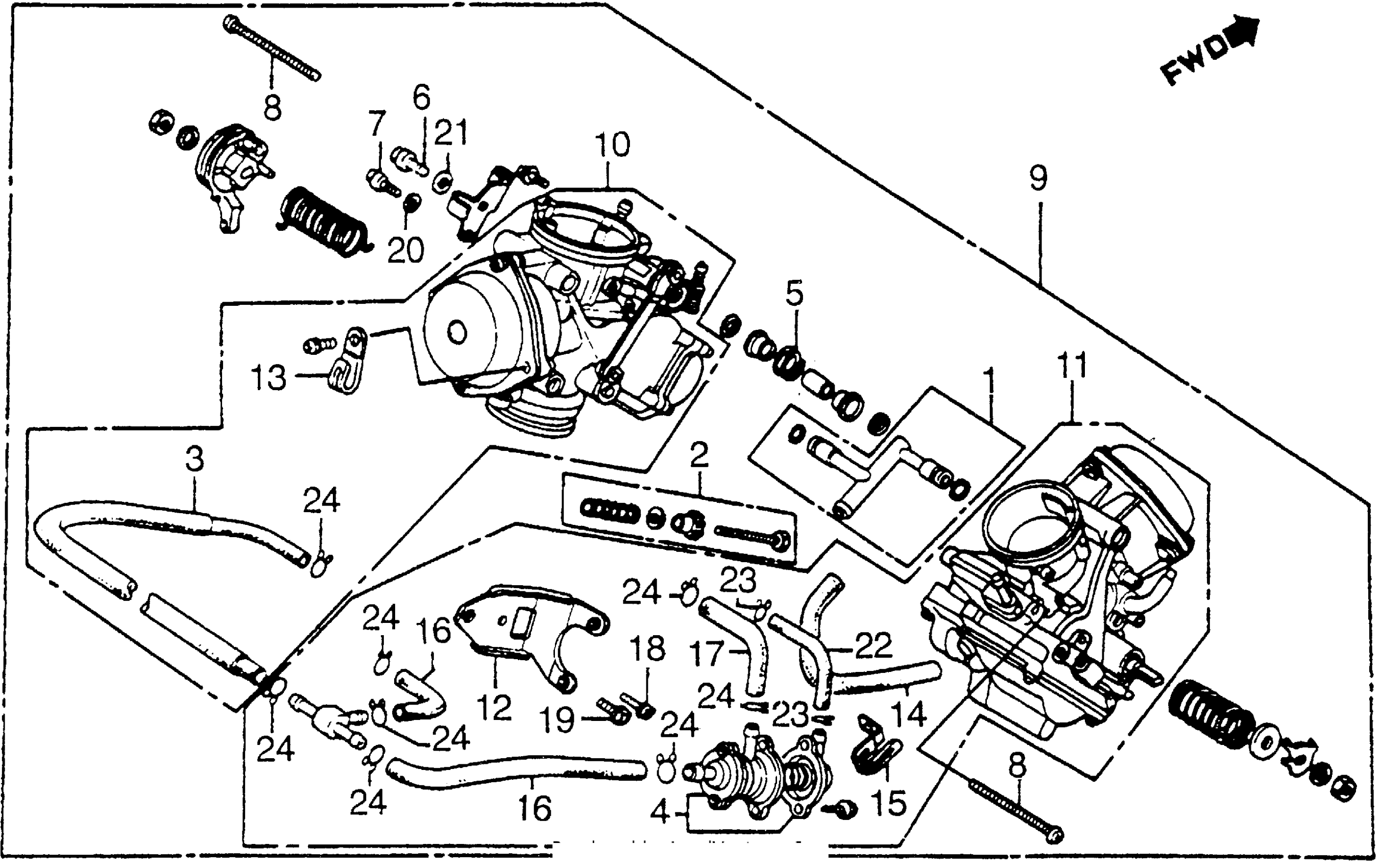

Honda VT1100CAC (85) SHADOW 1100, USA, VIN# 1HFSC181-FA002001 TO 1HFSC181-FA005150 CARBURETOR ASSY. 85 Diagram

JOINT SET

16026-MAH-670

Unavailable

JOINT SET This part replaces 16026-MG8-671.

16026-MAH-670

Unavailable

SCREW SET This part replaces 16028-KM9-711.

16028-MAH-000

$55.95

SCREW SET

16028-MAH-000

$55.95

SCREW SET This part replaces 16028-ME9-671.

16028-MAH-000

$55.95

TUBE, VINYL (NOT AVAILABLE)

16042-MG8-671

Unavailable

VALVE ASSY., AIR CUT

16048-ME9-751

Unavailable

VALVE ASSY., AIR CUT This part replaces 16048-ME9-752.

16048-ME9-751

Unavailable

SPRING

16053-ME9-672

Unavailable

BOLT, HEX.

16080-ME9-671

Unavailable

BOLT, HEX. This part replaces 16081-ME9-671.

16081-MR1-004

Unavailable

BOLT, HEX.

16081-MR1-004

Unavailable

SCREW, PAN

16082-ME9-671

Unavailable

CARBURETOR ASSY.

16100-MG8-732

Unavailable

CARBURETOR ASSY., L. RR. (NOT AVAILABLE)

16101-MG8-731

Unavailable

CARBURETOR ASSY., R. FR. (NOT AVAILABLE)

16102-MG8-731

Unavailable

STAY, PLATE (NOT AVAILABLE)

16119-MG8-671

Unavailable

BINDER (NOT AVAILABLE)

16134-MG8-671

Unavailable

TUBE, FUEL (ACV) This part replaces 16144-MG8-671.

16144-MG8-405

Unavailable

BINDER (NOT AVAILABLE)

16179-MG8-671

Unavailable

TUBE, FUEL (ACV) (NOT AVAILABLE)

16198-ME9-751

Unavailable

TUBE, FUEL (ACV) This part replaces 16199-MG8-671.

16144-MG8-405

Unavailable

SCREW-WASHER (4X8)

93892-04008-00

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

SCREW-WASHER (5X12)

93892-05012-00

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M)

95001-35003-60M

$20.85

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90
