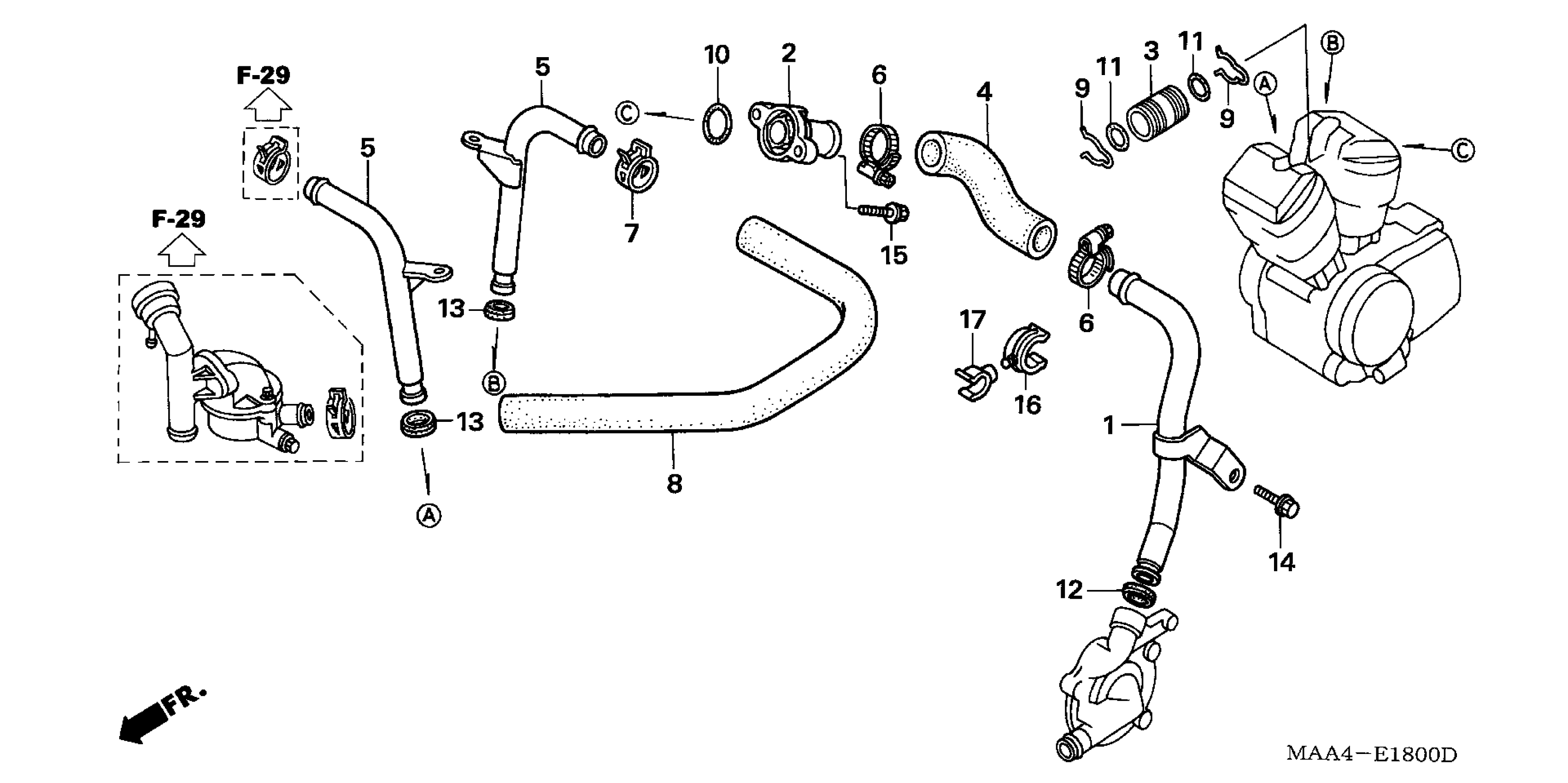

Honda VT1100CAC (05) SHADOW SPIRIT, USA, VIN# 1HFSC181-5A900001 WATER PIPE Diagram

Description

Price

PIPE, INLET WATER

19501-MAA-A00

Unavailable

JOINT, WATER HOSE

19504-MAA-A00

Unavailable

JOINT, WATER

19505-MAA-A00

$30.00

HOSE, IN. WATER

19506-MAA-A00

$17.22

PIPE A, OUTLET WATER

19511-MM8-000

$33.15

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

CLIP, WATER HOSE

19517-KM9-000

$8.28

HOSE B, OUTLET WATER

19522-MM8-000

$30.89

CLIP, RING (22MM)

90601-MAA-A00

$4.04

O-RING (29X2.4)

91301-MAA-A00

$3.64

O-RING (21.5X2)

91310-MB0-003

$2.92

SEAL, WATER PIPE (22.5MM)

91315-MAH-003

$7.66

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.53

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

CLIP (20MM)

50322-HE0-671

$4.28

CLIP (8.3MM)

50332-HE0-671

$3.59
