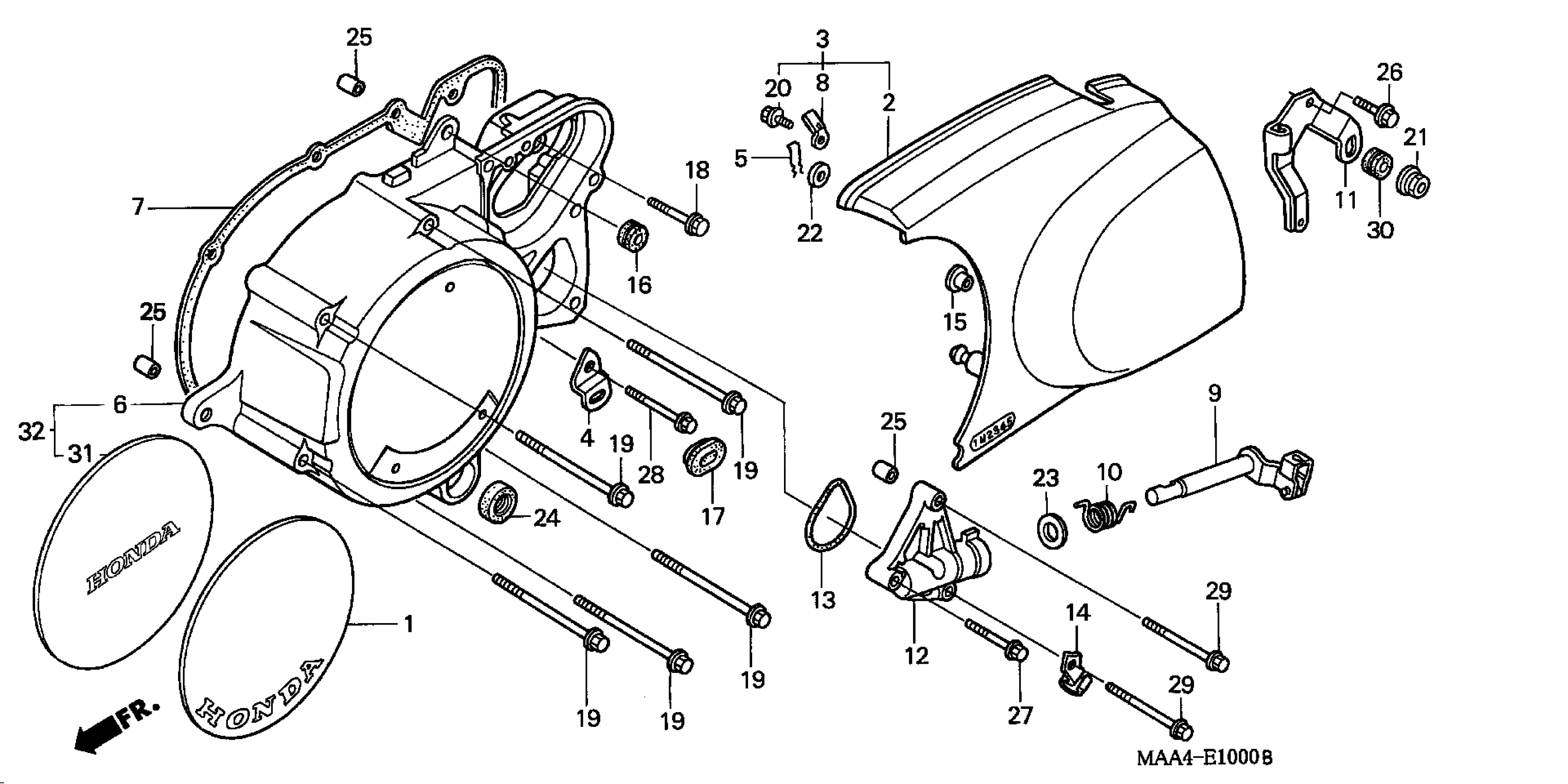

Honda VT1100CAC (05) SHADOW SPIRIT, USA, VIN# 1HFSC181-5A900001 LEFT CRANKCASE COVER Diagram

#

Description
Price

3

COVER, L. RR.

11340-MAA-L00

Unavailable

4

STAY, L. RR. COVER

11342-MM8-000

Unavailable

5

CLIP, L. RR. COVER

11356-MAH-000

$5.74

6

COVER, L. CRANKCASE

11361-MCK-U50

Unavailable

7

GASKET, L. CRANKCASE COVER

11395-MAH-000

$13.65

8

BINDER

16134-MW3-970

$7.16

9

LEVER, CLUTCH

22710-MAH-000

Unavailable

10

SPRING, CLUTCH LEVER

22815-MAH-000

Unavailable

11

RECEIVER, CLUTCH CABLE

22821-MAA-A00

$21.25

12

HOLDER, CLUTCH LIFTER

22860-MAH-000

Unavailable

13

GASKET, CLUTCH LIFTER HOLDER

22862-MAH-003

$19.17

14

CLAMP, CABLE

32111-MM8-000

Unavailable

15

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

16

CUSHION, AIR CLEANER

80105-MG9-000

$2.47

17

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

18

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

19

BOLT, FLANGE (6X80) (NSHF)

90006-GHB-790

$2.02

20

BOLT, FLANGE (5X12)

90007-892-000

$1.49

22

WASHER (9.5MM)

90504-MAH-000

$2.38

23

WASHER, ADJUST HANDLE THRUST

90553-702-000

Unavailable

24

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

25

PIN, DOWEL (8X14)

94301-08140

$2.25

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

27

BOLT, FLANGE (6X35)

95801-06035-00

$1.49

28

BOLT, FLANGE (6X45)

95801-06045-00

$2.06

29

BOLT, FLANGE (6X60)

95801-06060-00

$2.25

30

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

31

PLATE, EMBLEM

11335-MCK-A50

$20.51
