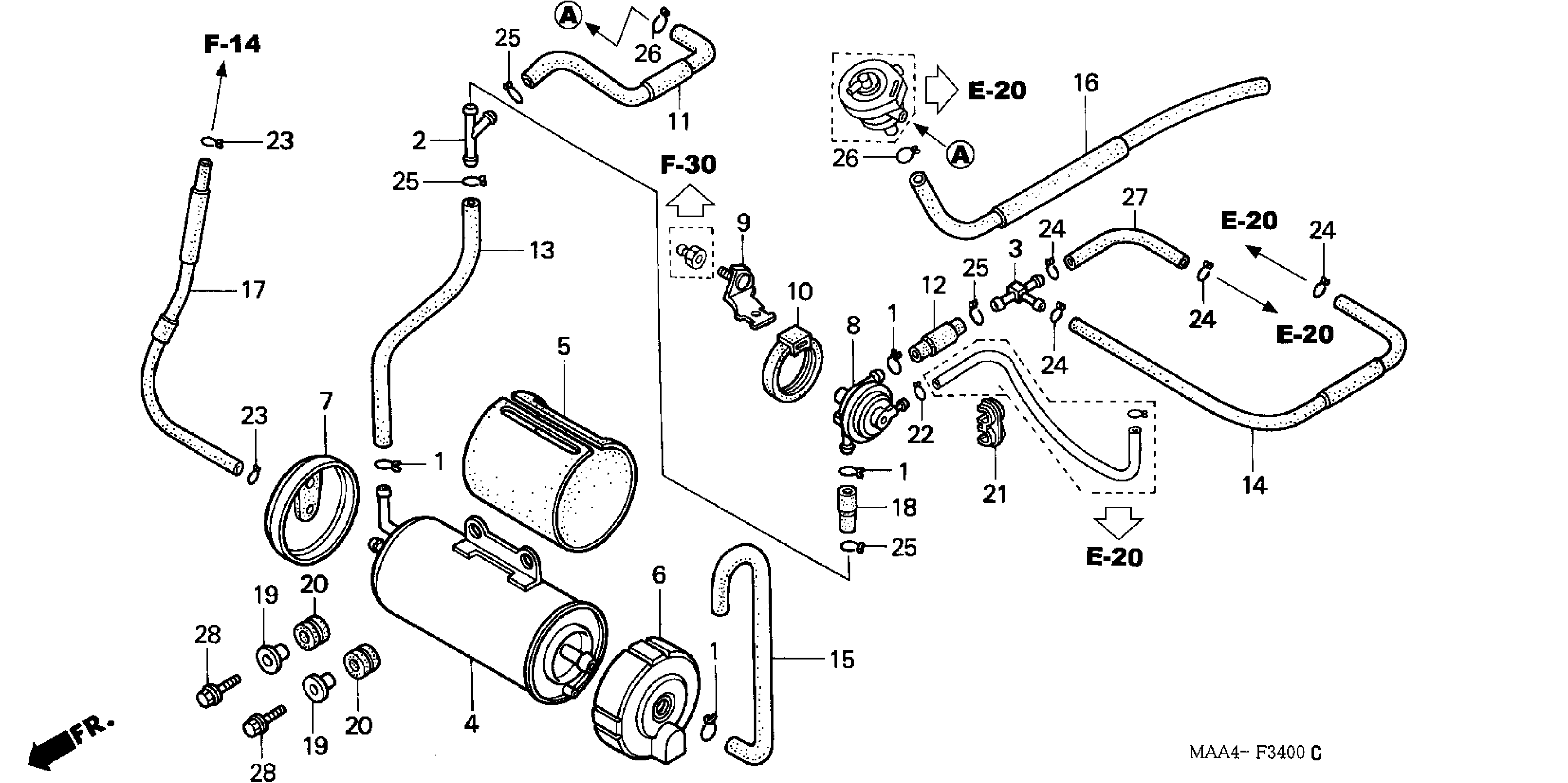

Honda VT1100CAC (05) SHADOW SPIRIT, USA, VIN# 1HFSC181-5A900001 EVAP CANISTER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

JOINT, FUEL TUBE

16959-MY1-000

$17.77

3

JOINT, FUEL TUBE

16961-MK7-000

$21.68

4

CANISTER, EVAPORATIVE EMISSION

17410-MM8-792

Unavailable

5

COVER, CANISTER

17411-MG8-730

$13.85

6

COVER, CANISTER (A)

17415-MF8-791

$13.66

7

COVER, CANISTER B

17416-MF8-790

Unavailable

8

VALVE, PURGE CONTROL

17440-MCK-L51

Unavailable

10

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

11

TUBE, AIR VENT CONTROL VALVE

17460-MCK-L50

$7.97

12

TUBE, PURGE CONTROL VALVE CARBURETOR

17461-MCK-L50

Unavailable

13

TUBE, CANISTER JOINT

17462-MCK-L50

$7.97

14

TUBE, RR. CARBURETOR JOINT

17463-MCK-L50

$6.54

15

TUBE, AIR

17464-MM8-790

Unavailable

16

TUBE, AIR VENT

17466-MAH-790

$38.70

17

TUBE, FUEL TANK

17467-MAA-L00

$20.70

18

TUBE, PURGE CONTROL VALVE JOINT

17468-MCK-L50

Unavailable

19

COLLAR, SETTING

61104-422-000

$6.91

20

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

21

CLAMP, FUEL TUBE

90651-MAH-000

$2.72

22

CLIP, TUBE (B7)

95002-02070

$1.80

23

CLIP, TUBE (B8)

95002-02080

$1.80

24

CLIP, TUBE (B10)

95002-02100

$1.90

25

CLIP, TUBE (B12)

95002-02120

$2.00

26

CLIP, TUBE (B12.5)

95002-02130

$1.49

27

TUBE, FR. CARBURETOR JOINT

17469-MCK-L50

$3.28

28

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
