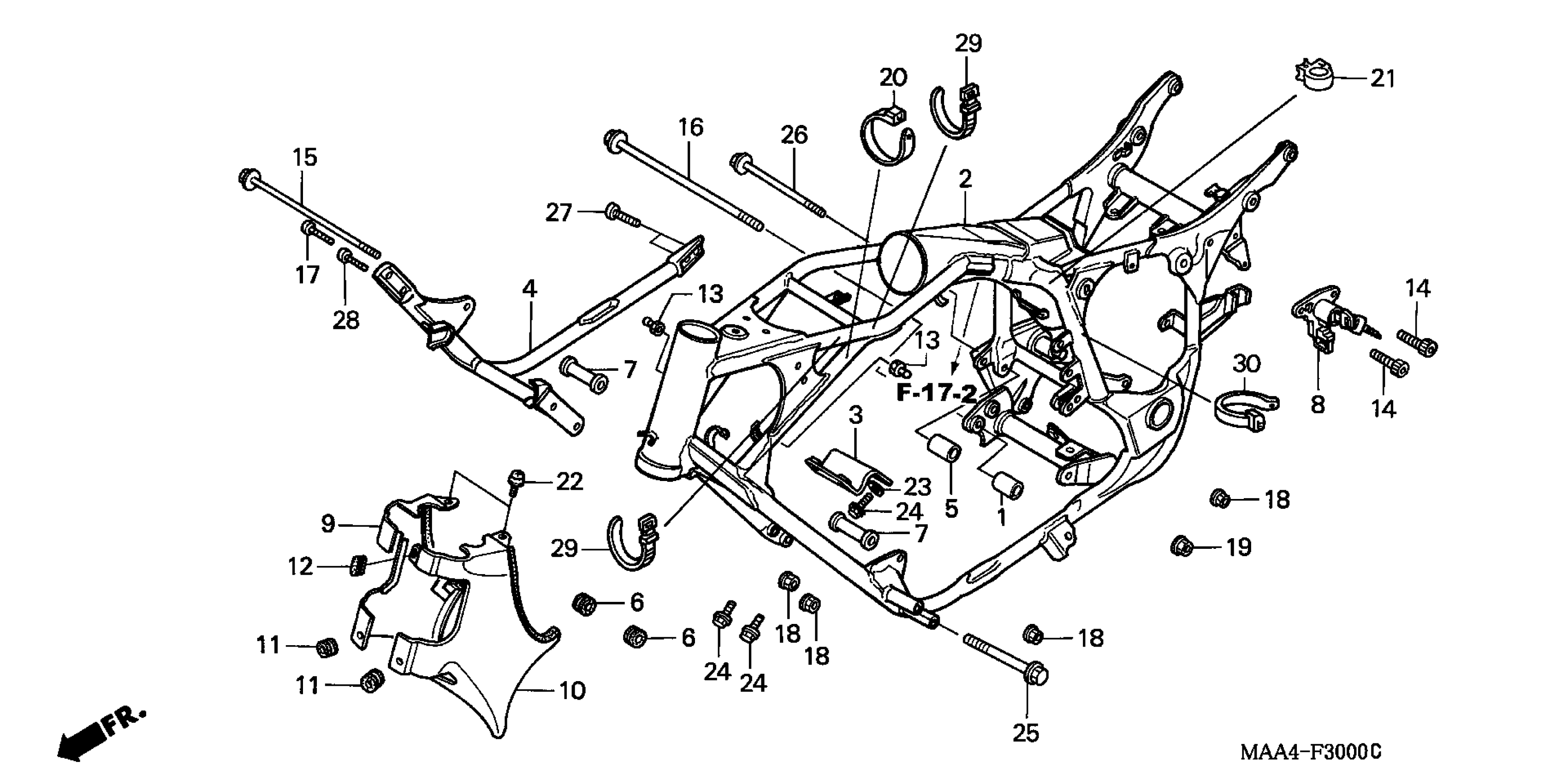

Honda VT1100CAC (03) SHADOW SPIRIT, USA, VIN# 1HFSC181-3A700001 TO 1HFSC181-3A799999 FRAME Diagram

#

Description
Price

1

COLLAR, RR. ENGINE HANGER

42313-MM8-000

$8.18

2

FRAME *NH1* (BLACK)

50100-MAA-L30ZA

$1,223.36

3

BRACKET, FR. ENGINE HANGER

50135-MM8-000

$83.43

4

SUB-FRAME *NH1* (BLACK) This part replaces 50174-MAA-L10ZA.

50174-MAA-A40ZA

$154.54

5

COLLAR, RR. ENGINE (UPPER)

50201-MM8-000

$11.15

6

GROMMET

50329-MB2-000

$5.06

7

COLLAR, ENGINE HANGER

50350-MM8-880

Unavailable

8

HOLDER ASSY., HELMET

50710-MF5-000

$66.03

9

COVER, R. FR. SIDE *NH1* (BLACK)

63500-MM8-000ZC

$280.13

10

COVER, L. FR. SIDE *NH1* (BLACK)

63501-MM8-000ZC

$325.77

11

GROMMET, SIDE COVER

83501-MG7-000

$2.61

12

GROMMET, SIDE COVER

83602-MM8-000

$4.43

13

STAY, RR. COWL

83733-ME8-000

$10.51

14

BOLT, SOCKET (6X20)

90072-ME9-000

$4.93

15

BOLT, FLANGE (10X26)

90102-MM8-000

$14.49

16

BOLT, FLANGE (12X265)

90105-MM8-880

Unavailable

17

BOLT, SOCKET (10X45)

90181-MN0-000

$4.81

18

NUT, FLANGE (10MM)

90303-428-900

$3.35

19

NUT, FLANGE (12MM) This part replaces 90305-428-900.

94050-12070

$1.49

20

BAND, WIRE HARNESS

90650-MA6-720

$4.15

21

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

22

SCREW-WASHER (5X12)

93891-05012-07

$1.49

23

WASHER, PLAIN (8MM)

94103-08000

$1.49

24

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

25

BOLT, FLANGE (8X70)

95701-08070-07

$1.49

26

BOLT, FLANGE (10X125)

95701-10125-07

Unavailable

27

BOLT, SOCKET (10X25)

96600-10025-07

$3.25

28

BOLT, SOCKET (10X35)

96700-10035-17

$9.38

29

BAND, WIRE

32161-438-000

$4.13

30

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92
