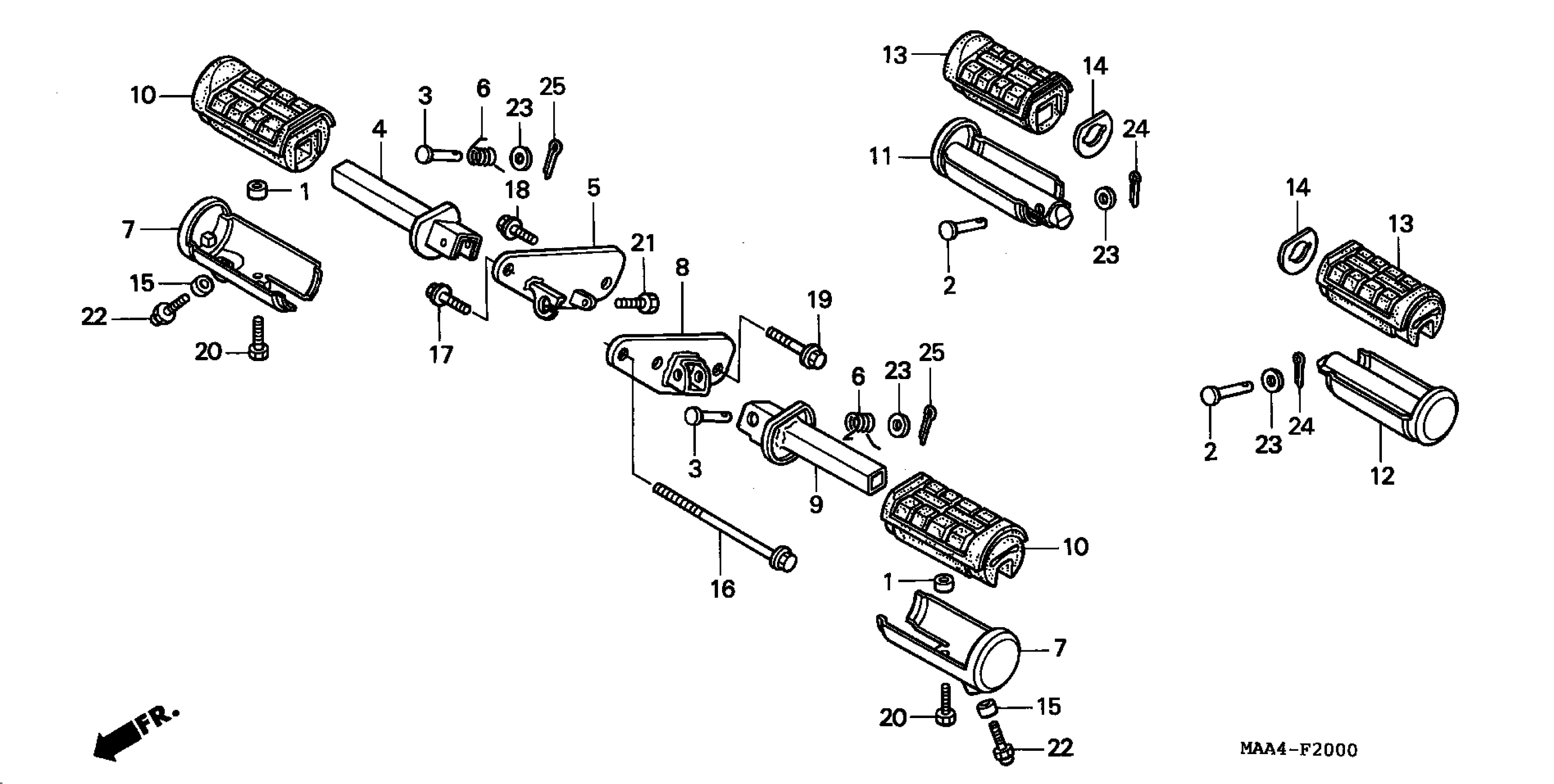

Honda VT1100CA (98) SHADOW SPIRIT, USA, VIN# 1HFSC180-WA200001 TO 1HFSC180-WA299999 STEP (1) Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.80

2

PIN, STEP BAR JOINT

50603-KB4-000

$4.47

3

PIN, STEP BAR JOINT

50603-033-010

$3.06

4

BAR, R. STEP (COO) This part replaces 50612-MK7-010.

50612-MFR-305

$16.34

5

BRACKET, R. STEP

50615-MAA-A00

Unavailable

6

SPRING, STEP RETURN

50617-MB1-700

$5.54

7

STOPPER, STEP RUBBER

50619-MK7-010

$12.94

7

STOPPER, STEP RUBBER

50619-MM2-770

Unavailable

8

BRACKET, L. STEP

50625-MAA-A00

Unavailable

9

BAR, L. STEP (COO) This part replaces 50642-MM8-000.

50642-MFR-305

$16.34

10

RUBBER, MAIN STEP (COO) This part replaces 50661-MK7-000.

50661-MFR-305

$9.93

11

BAR, R. PILLION STEP

50711-MM8-000

Unavailable

12

BAR, L. PILLION STEP

50712-MM8-000

$27.51

13

RUBBER, PILLION STEP

50713-MK7-000

Unavailable

14

WASHER, PILLION STEP

50714-MK7-000

$4.66

15

COLLAR, MIRROR SETTING

88315-GA7-000

Unavailable

16

BOLT, FLANGE (8X130)

90116-MAA-A00

Unavailable

17

BOLT, FLANGE (10X20)

90130-126-900

$4.28

18

BOLT, SPECIAL FLANGE (10X60)

90159-438-000

$6.79

19

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.65

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.31

21

BOLT, HEX. (6X16)

92101-06016-0B

$1.19

22

BOLT, CAP (8X14)

92501-08014-0B

$2.85

23

WASHER, PLAIN (8MM)

94101-08000

$0.76

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.96

24

PIN, COTTER (1.6X25)

94201-16250

$0.96

25

PIN, SPLIT (2.0X15)

94201-20150

$0.96
