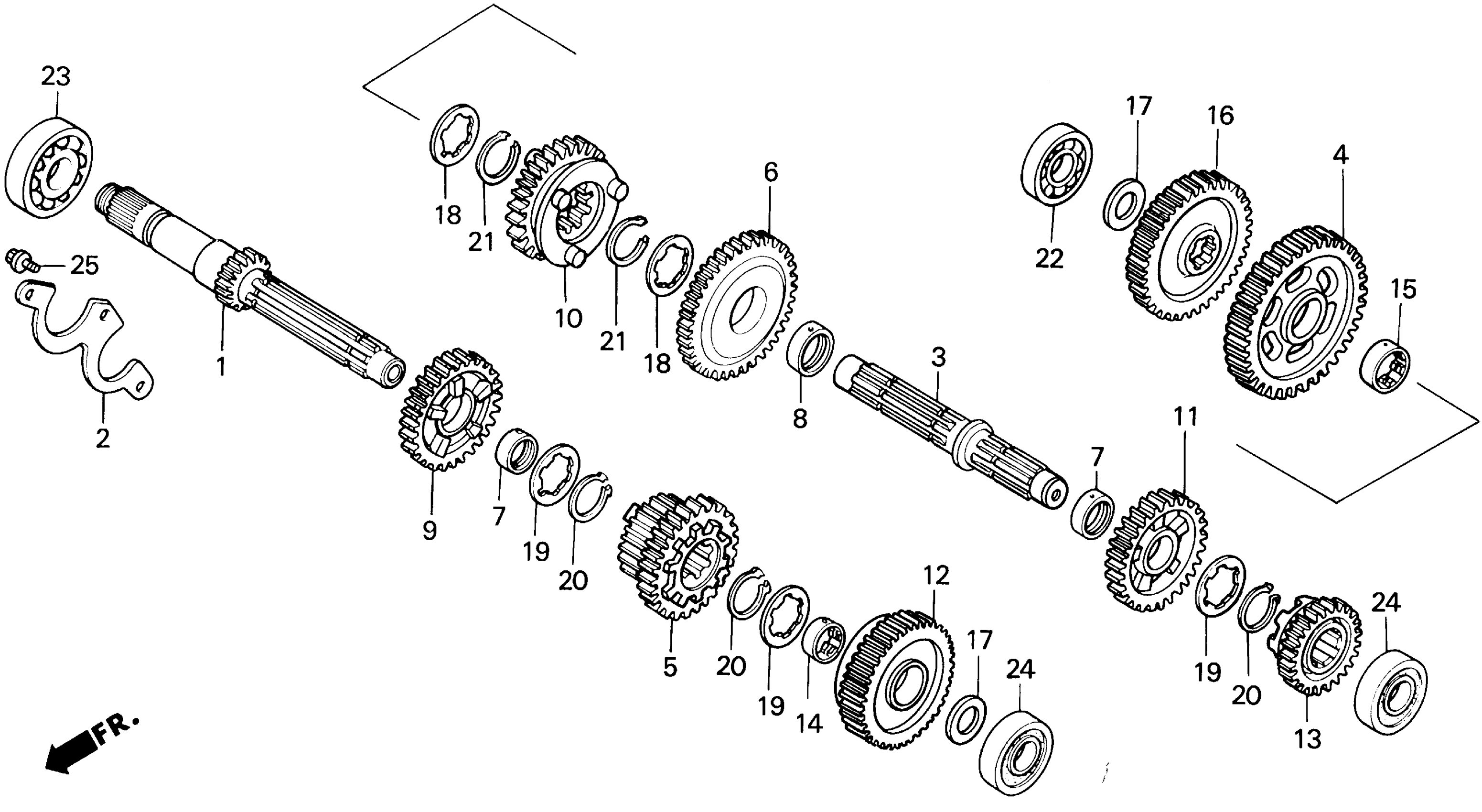

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C2TRANSMISSION 95-97 Diagram

#

Description
Price

1

MAINSHAFT (16T) (NOT AVAILABLE)

23211-MAH-610

Unavailable

2

PLATE, BEARING

23212-MK7-670

$15.64

3

COUNTERSHAFT (NOT AVAILABLE)

23220-MAA-610

Unavailable

4

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23421-MAA-610

Unavailable

5

GEAR, MAINSHAFT SECOND & FOURTH (23T/36T) (NOT AVAILABLE)

23431-MAA-610

Unavailable

6

GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)

23441-MAA-610

Unavailable

7

COLLAR (28MM)

23442-ML7-000

$27.93

8

COLLAR (30X11.2)

23442-MS2-610

$23.74

9

GEAR, MAINSHAFT THIRD (27T)

23451-MAA-610

$160.02

10

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

23461-MAA-611

Unavailable

10

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE) This part replaces 23461-MAA-610.

23461-MAA-611

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MAA-610

$154.72

12

GEAR, MAINSHAFT FIFTH (30T) (NOT AVAILABLE)

23491-MAA-610

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (NOT AVAILABLE)

23501-MAH-000

Unavailable

14

COLLAR, SPLINE (28X26X17) (NOT AVAILABLE)

23512-MM8-000

Unavailable

15

COLLAR, SPLINE (30X28X11) (NOT AVAILABLE)

23514-MM8-000

Unavailable

16

GEAR, FINAL DRIVE (36T) (NOT AVAILABLE)

23725-MM8-000

Unavailable

17

WASHER (20X37X2)

90404-KK0-000

$4.44

18

WASHER, THRUST (30MM) (SOURCE: VINTAGE PARTS INC.)

90451-MG8-000

Unavailable

19

WASHER, THRUST (28MM)

90451-422-000

$8.36

20

CIRCLIP (28MM)

90601-422-000

$2.98

21

CIRCLIP (30MM)

90604-MG8-000

$3.43

22

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

23

BEARING, RADIAL BALL (305/28) (TOYO)

91004-MG8-003

Unavailable

24

BEARING, SEALED BALL (20X52X15) (TOYO)

91005-MG8-003

Unavailable

25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
