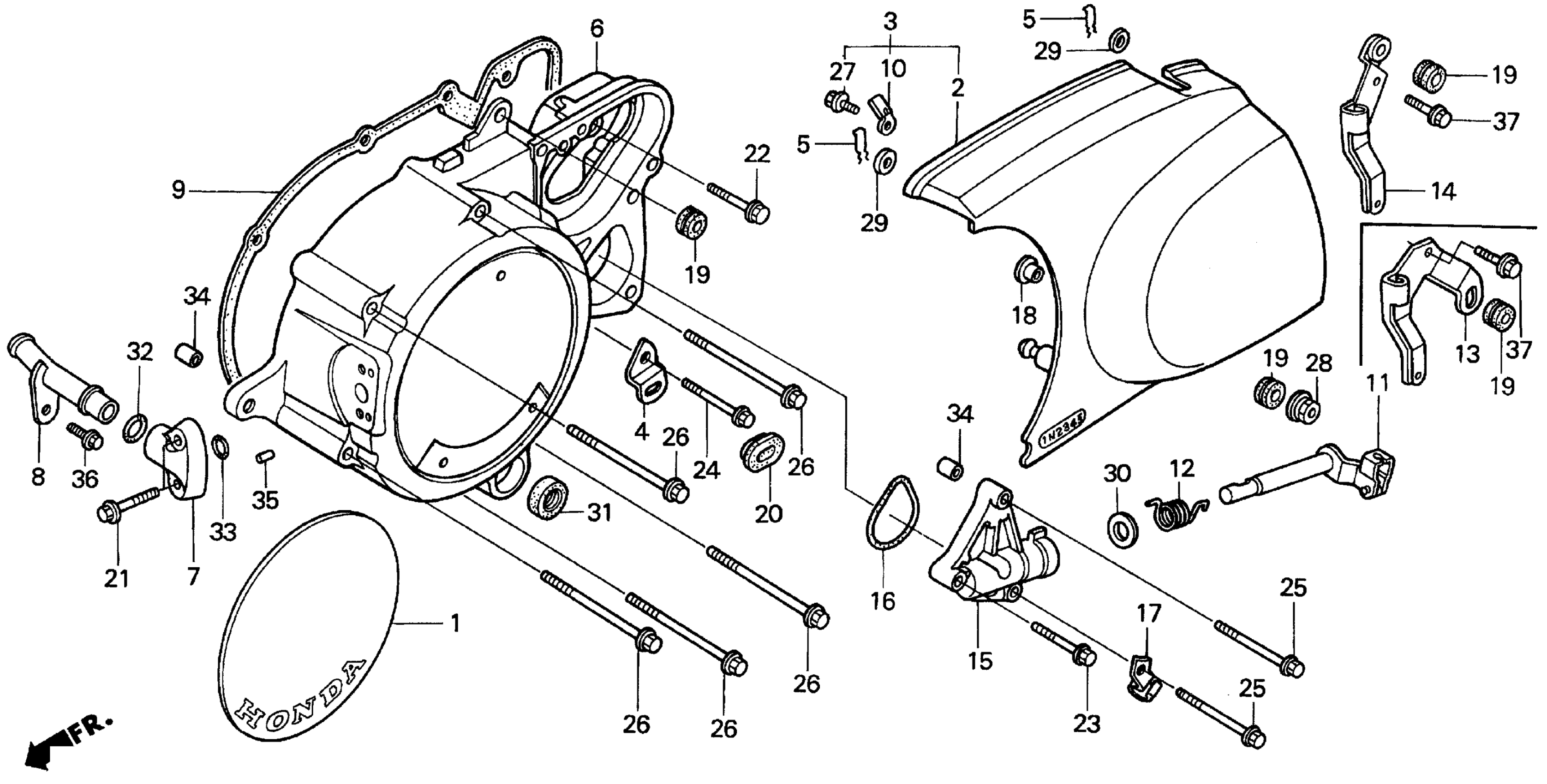

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C2LEFT CRANKCASE COVER 95-97 Diagram

#

Description
Price

1

PLATE, EMBLEM

11335-MAH-A40

$55.75

1

PLATE, EMBLEM This part replaces 11335-MAH-000.

11335-MAH-A40

$55.75

2

COVER, L. RR.

11340-MAA-A00

Unavailable

4

STAY, L. RR. COVER

11342-MM8-000

Unavailable

5

CLIP, L. RR. COVER

11356-MAH-000

$5.74

6

COVER SET, L. CRANKCASE

11360-MAA-305

Unavailable

6

COVER SET, L. CRANKCASE This part replaces 11361-MAA-A00.

11360-MAA-305

Unavailable

9

GASKET, L. CRANKCASE COVER

11395-MAH-000

$13.65

11

LEVER, CLUTCH

22710-MAH-000

Unavailable

12

SPRING, CLUTCH LEVER

22815-MAH-000

Unavailable

13

RECEIVER, CLUTCH CABLE

22821-MAA-A00

$21.25

15

HOLDER, CLUTCH LIFTER

22860-MAH-000

Unavailable

16

GASKET, CLUTCH LIFTER HOLDER

22862-MAH-003

$19.17

17

CLAMP, CABLE

32111-MM8-000

Unavailable

18

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

19

CUSHION, AIR CLEANER

80105-MG9-000

$2.47

20

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

22

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

23

BOLT, FLANGE (6X35)

95801-06035-00

$1.49

24

BOLT, FLANGE (6X45)

95801-06045-00

$2.06

25

BOLT, FLANGE (6X60)

95801-06060-00

$2.25

26

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

28

NUT, FLANGE (6MM)

90302-187-000

$2.39

29

WASHER (9.5MM)

90504-MAH-000

$2.38

30

WASHER, ADJUST HANDLE THRUST

90553-702-000

Unavailable

31

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

34

PIN, DOWEL (8X14)

94301-08140

$2.25

37

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
