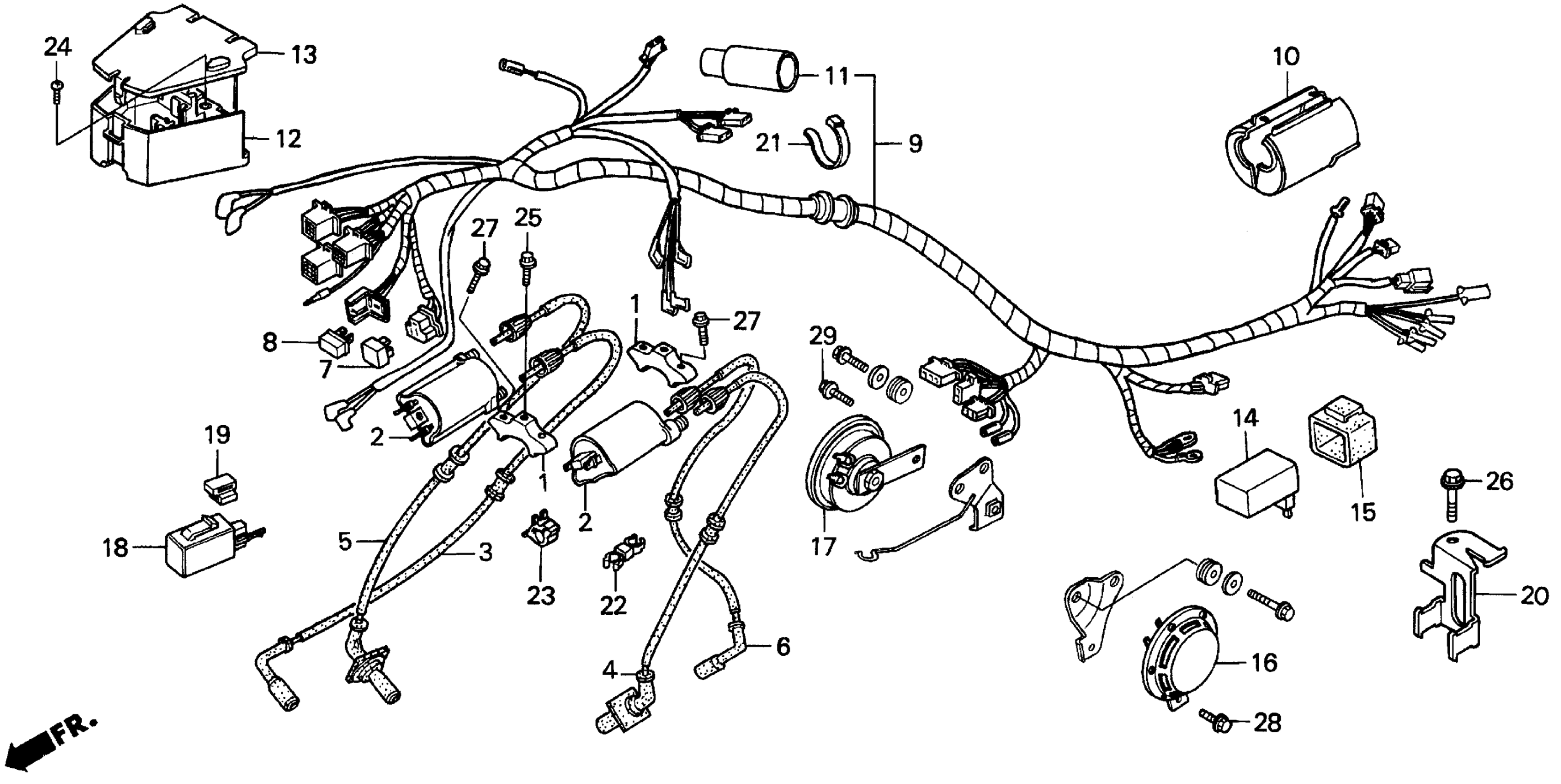

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C WIRE HARNESS Diagram

#

Description
Price

1

BRACKET, IGNITION COIL

30505-MM8-000

Unavailable

2

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

3

CAP ASSY. 1, IGNITION

30751-MM8-770

$32.67

4

CAP ASSY. 2, IGNITION

30752-MM8-770

Unavailable

5

CAP ASSY. 3, IGNITION

30753-MM8-770

$62.18

6

CAP ASSY. 4, IGNITION

30754-MAH-003

$65.31

7

RECTIFIER, SILICON

31700-196-000

$26.42

9

WIRE HARNESS

32100-MAA-A00

Unavailable

11

COVER, WIRE CONNECTOR

32108-MM8-680

Unavailable

12

BOX, FR. CONNECTOR

32510-MM8-000

Unavailable

13

COVER, FR. CONNECTOR BOX

32511-MM8-000

$15.51

14

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

15

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

17

HORN (LOW)

38120-MAH-003

$81.10

18

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

19

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

20

STAY, STARTER MAGNETIC SWITCH

50330-MAH-000

Unavailable

21

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

23

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

24

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

24

SCREW, PAN (5X12)

93500-05012-0A

$1.49

24

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

24

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

27

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

29

BOLT, FLANGE (8X12)

95701-08012-07

$1.72
