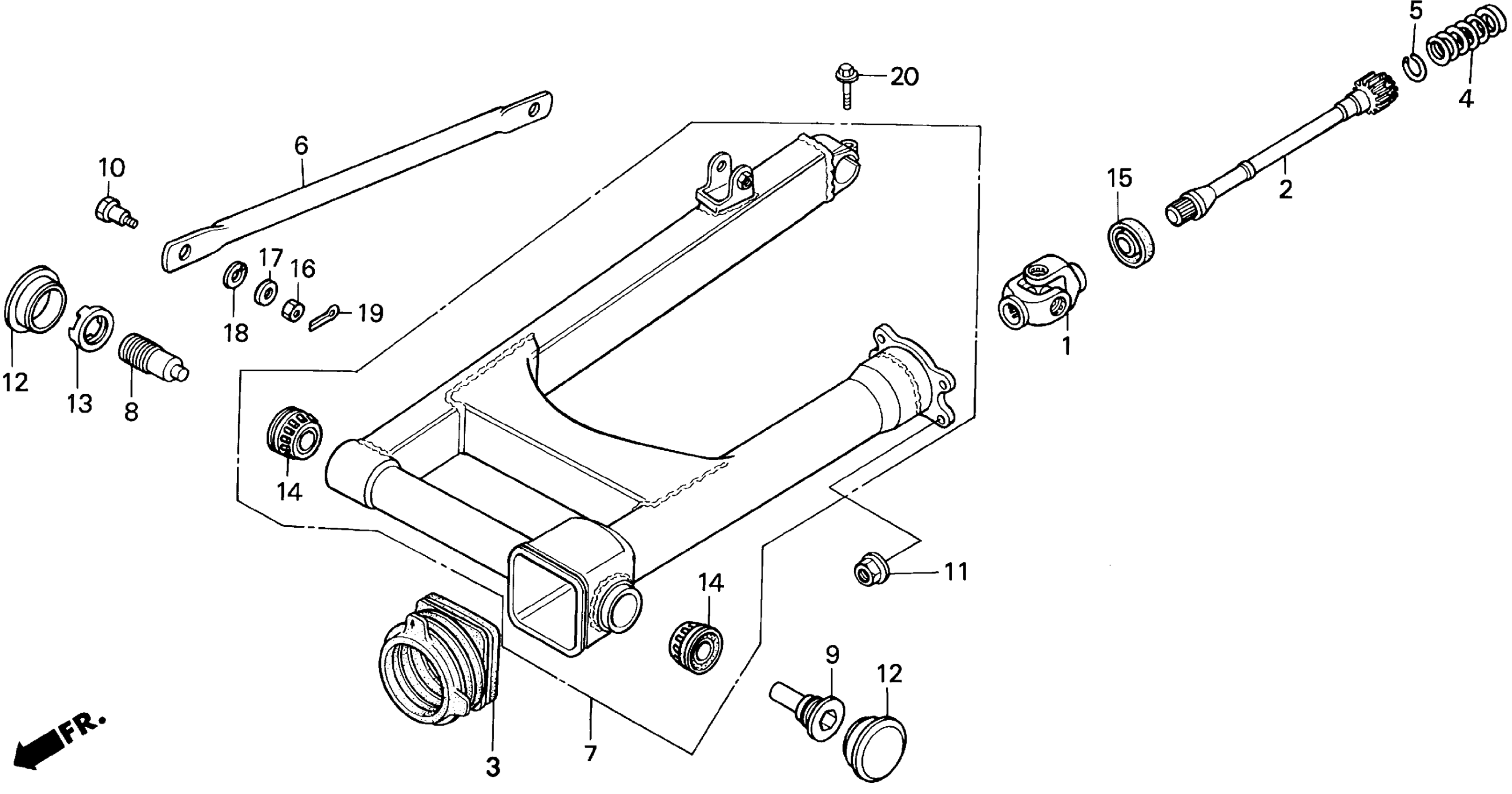

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C SWINGARM Diagram

JOINT ASSY., YOKE

40200-MAH-A00

$186.23

SHAFT, PROPELLER

40201-MAH-A00

$133.74

BOOT, JOINT

40207-MG8-000

$12.00

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

ARM, RR. BRAKE STOPPER

43431-ME9-010

Unavailable

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-MAA-A40ZA

$377.36

SWINGARM ASSY., RR. *NH1* (BLACK) This part replaces 52100-MM8-000ZA.

52100-MAA-A40ZA

$377.36

BOLT, R. SWINGARM PIVOT

90121-MAH-A00

$12.31

BOLT, L. SWINGARM PIVOT

90122-MAH-A00

$12.13

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

NUT, HEX. (10MM)

90308-357-000

$4.85

CAP, R. LOCK NUT

90312-MB0-700

$18.22

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
