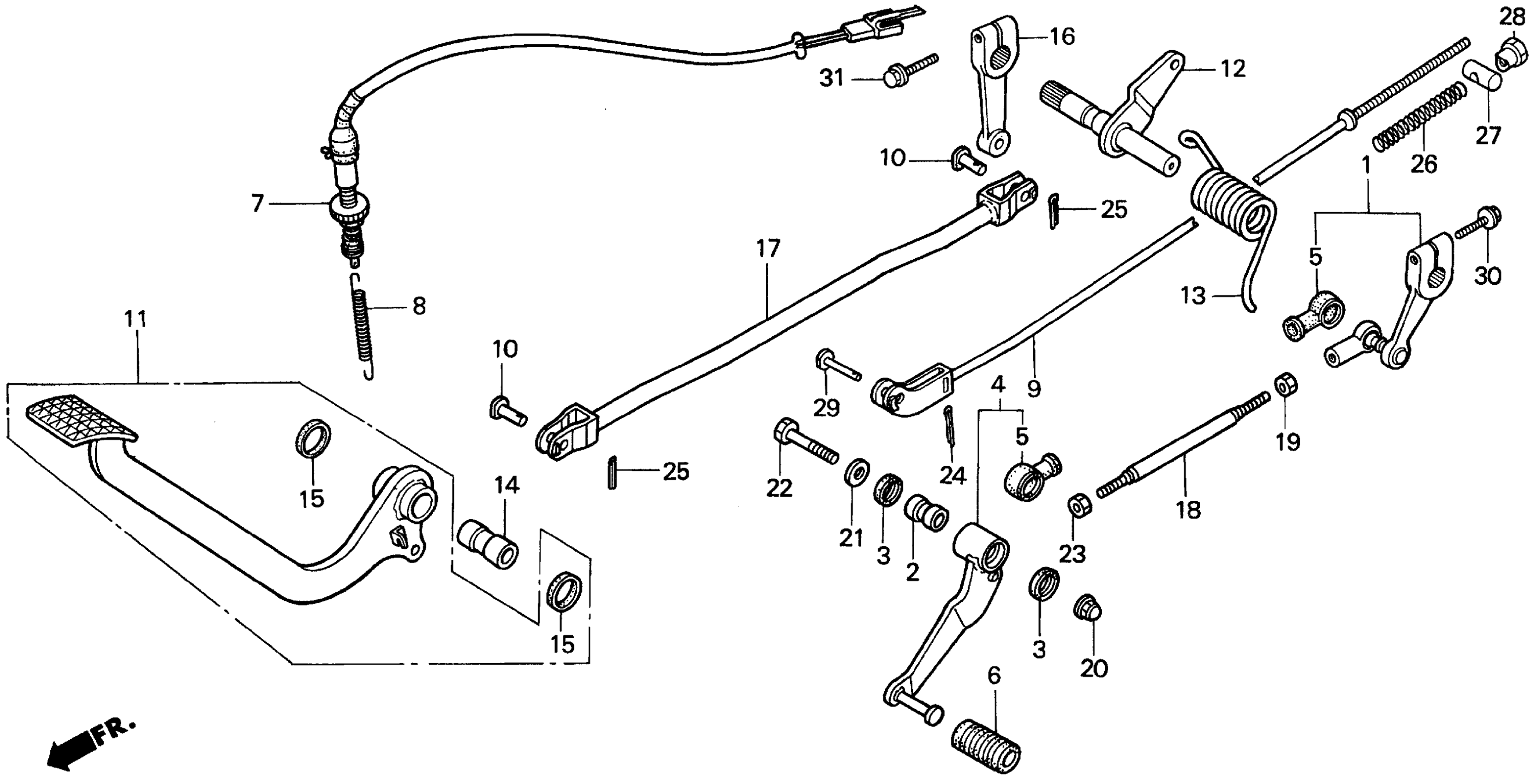

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C PEDAL 97 Diagram

ARM, GEARSHIFT

24702-MM8-000

$64.44

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$10.67

RUBBER, DUST SEAL

24706-MK3-770

$4.48

PEDAL, GEARSHIFT

24710-MAA-A00

$79.95

COVER, DUST

24724-422-000

$6.68

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-MAA-A01

$26.49

SWITCH ASSY., RR. STOP This part replaces 35350-MAA-A10.

35350-MAA-A01

$26.49

SPRING, STOP SWITCH

35357-ME9-000

$4.74

ROD, RR. BRAKE

43451-MM8-000

$21.13

PIN, MIDDLE ROD JOINT

43456-MK7-000

Unavailable

PEDAL ASSY., RR. BRAKE

46500-MAA-A00

$116.02

ARM, RR. BRAKE MIDDLE

46510-MM8-000

Unavailable

SPRING, BRAKE RETURN

46514-MM8-000

Unavailable

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$11.72

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

ARM, RR. BRAKE PEDAL PIVOT

46530-MM8-000

Unavailable

ROD, RR. BRAKE MIDDLE

46540-MAA-A00

Unavailable

BOLT, TIE ROD

90065-KAF-000

Unavailable

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

NUT, CAP (8MM)

90208-438-000

$2.98

WASHER (8MM)

90514-921-000

$1.49

BOLT, HEX. (8X45)

92201-08045-0A

$2.00

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, SPLIT (1.6X12)

94201-16120

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20)

95701-06020-02

$1.49

BOLT, FLANGE (8X25)

95701-08025-02

$2.17
