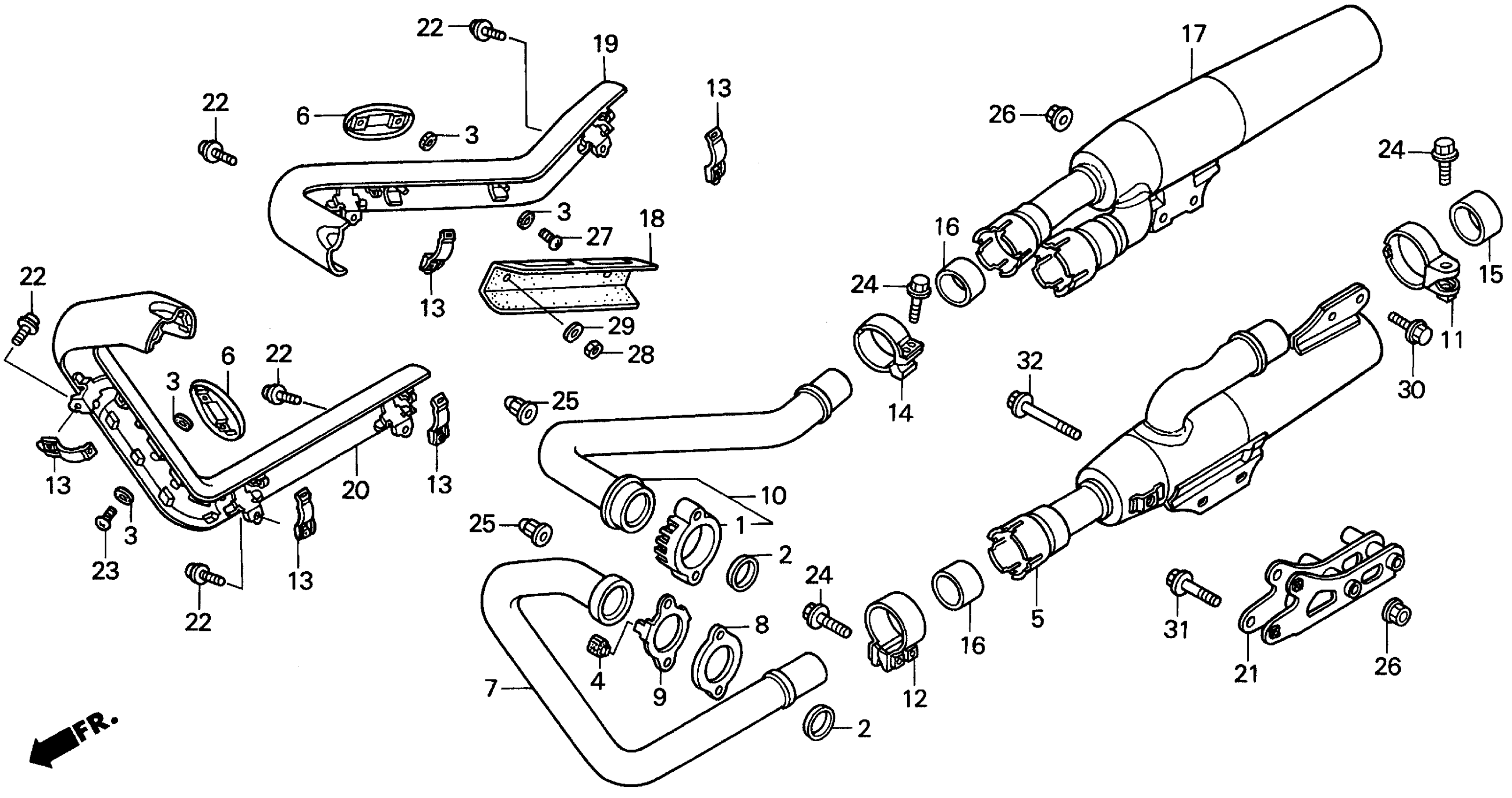

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C MUFFLER 97 Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MG8-000

Unavailable

2

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

4

RUBBER, PROTECTOR

18293-MN0-000

$2.13

5

MUFFLER (LOWER)

18310-MAA-A01

Unavailable

6

SUB-COVER, EX. PIPE

18315-MAA-A00

Unavailable

7

PIPE, FR. EX.

18320-MAA-A01

Unavailable

8

JOINT, EX. PIPE

18325-MAH-000

$19.97

9

HOLDER, FR. EX. PIPE COVER

18326-MAH-000

Unavailable

10

PIPE, RR. EX.

18370-MAA-A01

Unavailable

11

BAND, R. RR. MUFFLER

18375-MG7-000

$29.64

12

BAND, MUFFLER

18376-KG0-003

$18.83

13

BAND, EX. MUFFLER

18376-MAA-A01

Unavailable

14

BAND B, MUFFLER

18377-MAA-A01

Unavailable

15

GASKET, MUFFLER

18392-MG7-750

$13.66

16

GASKET, MUFFLER

18392-MK4-000

$13.66

17

MUFFLER (UPPER)

18410-MAA-A01

Unavailable

18

COVER A, EX. PIPE (INNER)

18411-MM8-880

$30.95

19

COVER, RR. EX.PIPE This part replaces 18418-MAA-A02.

18418-MAA-A03

Unavailable

19

COVER, RR. EX.PIPE

18418-MAA-A03

Unavailable

20

COVER A, FR. EX. PIPE

18421-MAA-A01

Unavailable

21

BRACKET, MUFFLER (LOWER)

18455-MAA-A00

$72.39

22

BOLT, SOCKET (6X14)

90091-KV3-700

$3.13

23

SCREW, PAN (5X8) (STAY COVER)

90110-SH3-000

$4.26

24

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

25

NUT, CAP (8MM)

90304-ME1-670

$5.94

26

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

27

SCREW, PAN (5X8)

93500-05008-0H

$1.49

28

NUT, HEX. (6MM)

94002-06000-0S

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

BOLT, FLANGE (8X20)

95701-08020-07

$1.87

31

BOLT, FLANGE (8X45)

95701-08045-07

$2.17

32

BOLT, FLANGE (8X80)

95701-08080-07

$2.39
