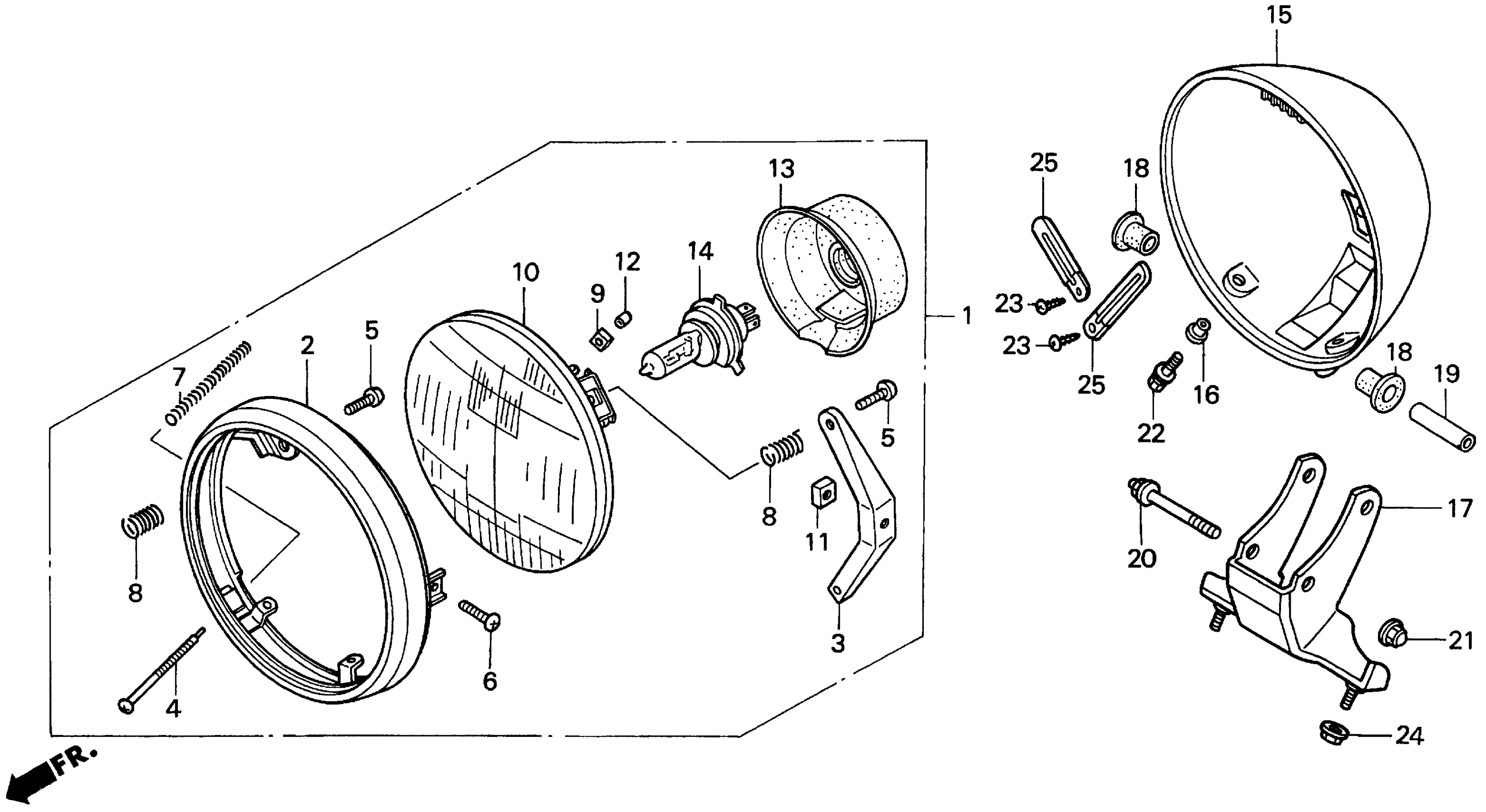

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C HEADLIGHT 97 Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) (STANLEY)

33100-MK7-671

$269.61

2

RIM, HEADLIGHT

33101-MK7-671

$71.90

3

STAY (NOT AVAILABLE)

33102-MK7-671

Unavailable

4

SCREW, BEAM ADJUSTING

33103-MK7-671

$4.80

5

SCREW, SPECIAL (NOT AVAILABLE)

33104-MK7-671

Unavailable

6

SCREW, SPECIAL (NOT AVAILABLE)

33106-MK7-671

Unavailable

7

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.80

8

SPRING, SETTING (NOT AVAILABLE)

33108-MK7-671

Unavailable

9

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

10

HEADLIGHT UNIT

33120-MK7-671

$137.93

11

NUT, UNIT HOLDER

33128-471-003

$1.62

12

COVER, ADJUSTING SCREW

33136-111-671

$1.93

13

COVER, RUBBER

33180-MJ0-010

$15.62

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

15

CASE, HEADLIGHT

61301-MN0-003

$112.05

16

COLLAR, HEADLIGHT SETTING

61304-KR3-980

$5.17

17

STAY, HEADLIGHT

61311-MAA-A00

Unavailable

18

RUBBER, HEADLIGHT MOUNTING

61315-MZ5-000

$2.92

19

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.97

20

BOLT, CAP (6MM)

90132-MK7-000

$3.04

21

NUT, CAP (6MM)

90201-415-000

$2.05

22

BOLT-WASHER (5X20)

93402-05020-00

$1.49

22

BOLT-WASHER (5X20) This part replaces 93412-05020-00.

93402-05020-00

$1.49

23

SCREW, TAPPING (4X8)

93901-34120

$1.49

24

NUT, FLANGE (8MM)

94050-08000

$1.49

25

CLIP (4X90)

94591-49000

$3.01
