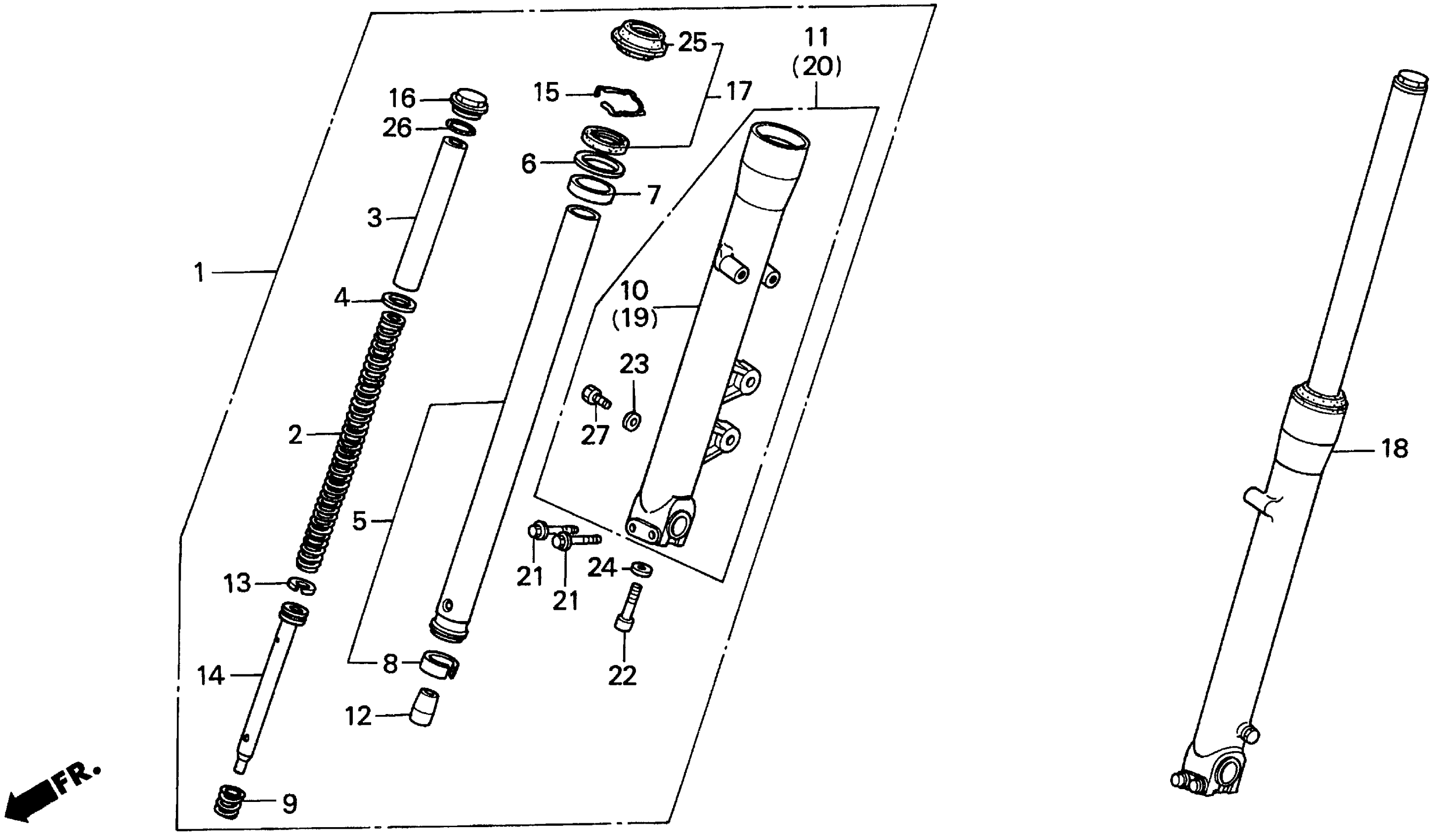

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C FRONT FORK Diagram

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MAA-A01

Unavailable

SPRING, FR. FORK (SHOWA)

51401-MM8-881

Unavailable

COLLAR, SPRING (SHOWA)

51402-MM8-881

Unavailable

PLATE, SPRING JOINT

51404-MB4-003

$4.60

PIPE, FR. FORK

51410-MAA-A01

Unavailable

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.58

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.02

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.48

CASE, R. (LOWER)

51420-MAA-A01

Unavailable

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.28

RING, PISTON (SHOWA)

51437-MN5-003

$7.67

PIPE, SEAT

51440-MAA-003

$48.25

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

BOLT, FR. FORK

51455-MG9-771

$43.81

SEAL SET, FR. FORK

51490-MN8-305

$31.62

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MAA-A01

Unavailable

CASE, L. (LOWER)

51520-MAA-A01

Unavailable

BOLT, FLANGE (8X45)

90109-MR7-000

$4.60

BOLT, SOCKET (8X27) (SHOWA)

90116-383-721

$4.77

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.61

DUST SEAL

91254-MM8-003

$16.06

O-RING

91356-MB4-003

$3.30
