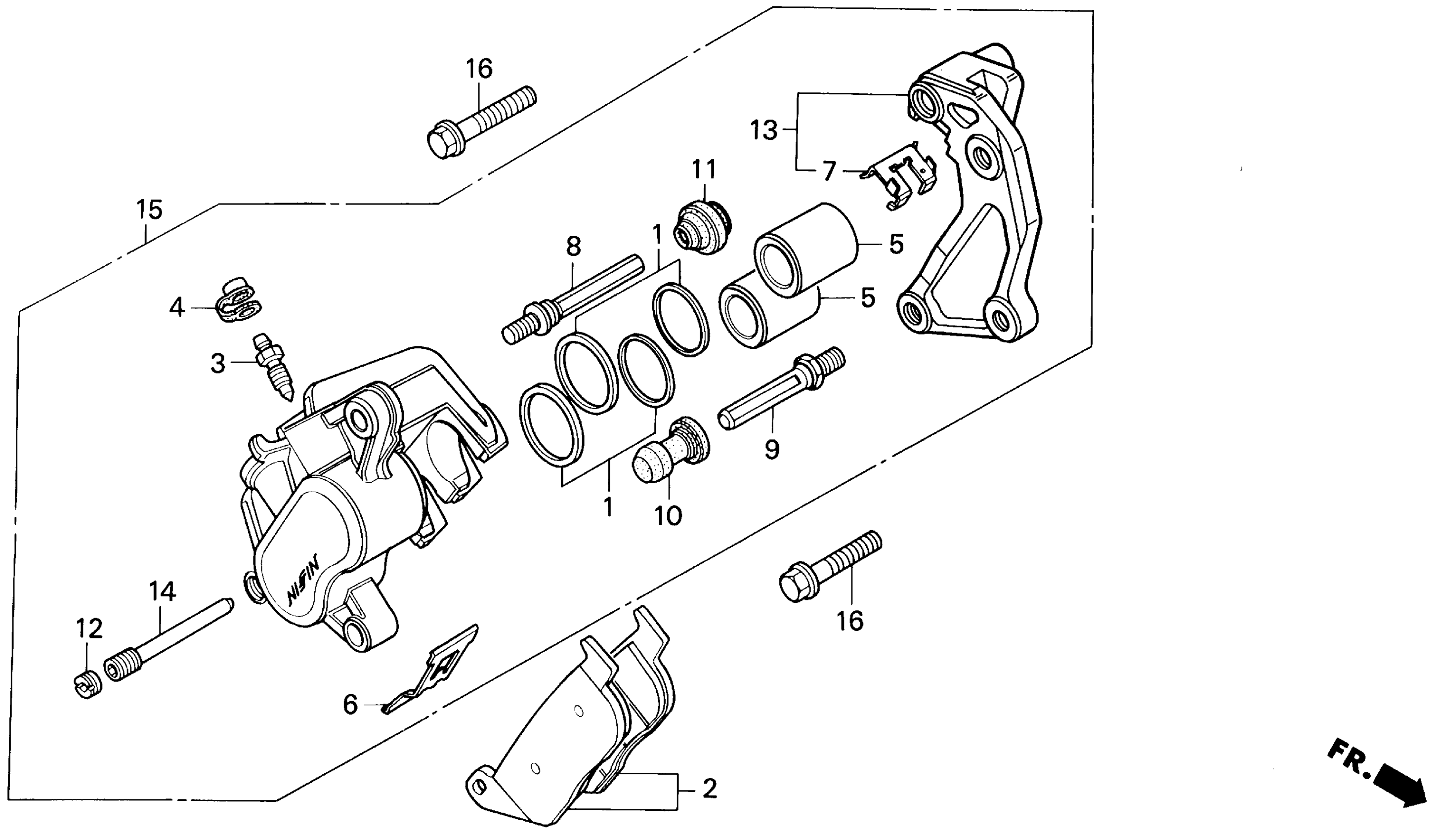

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, FR. This part replaces 06455-MAA-405.

06455-MAA-415

$58.97

PAD SET, FR.

06455-MAA-415

$58.97

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-ML4-006

$37.87

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RETAINER

45112-MAA-006

$5.90

BOLT A, PIN

45131-ML7-921

$15.44

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

BRACKET, R. FR.

45210-MAA-006

Unavailable

PIN, HANGER

45215-ML7-922

$10.67

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-MAA-305

Unavailable

BOLT, SPECIAL FLANGE (10X40)

90101-MAA-000

$11.41
