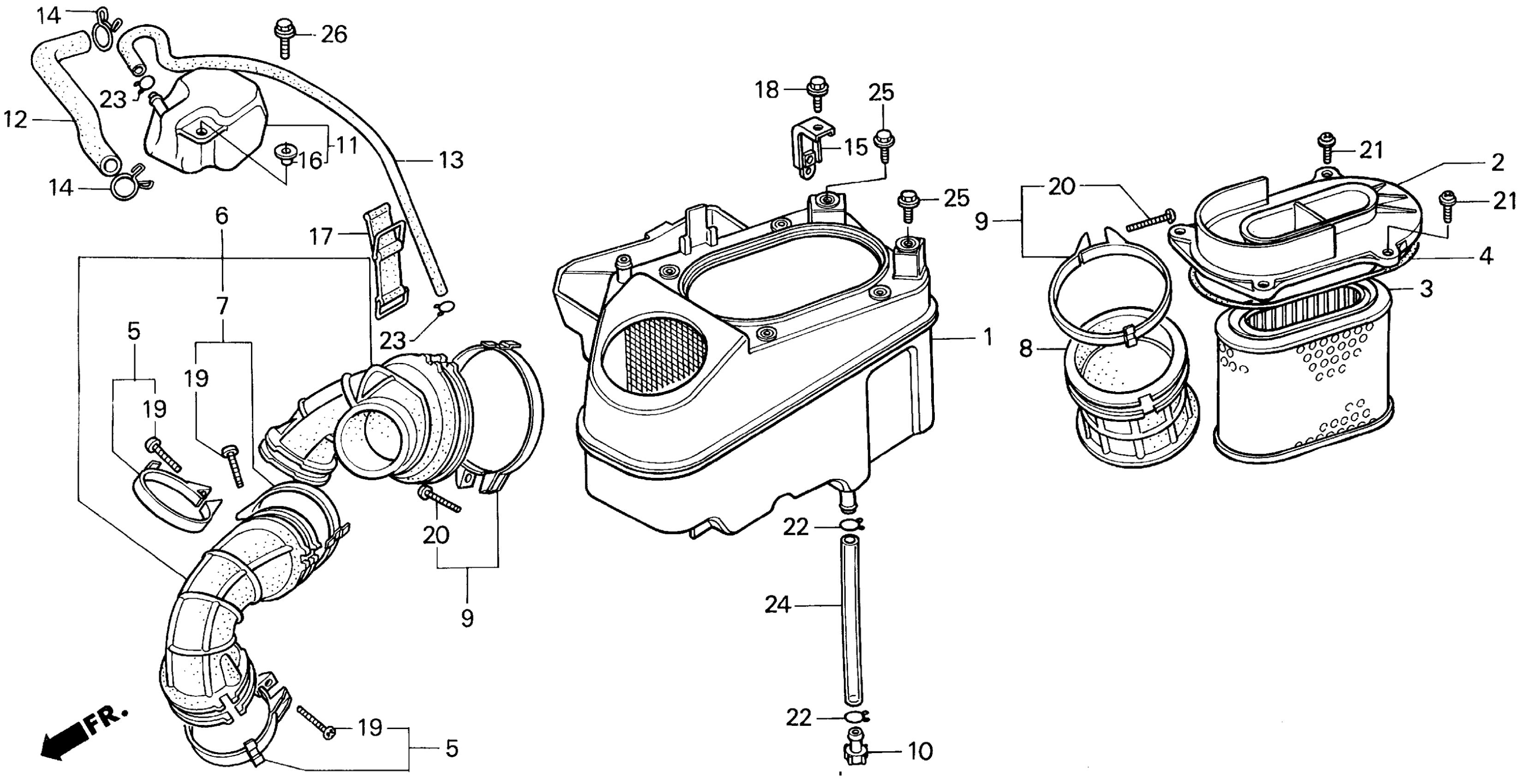

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 VT1100C AIR CLEANER Diagram

#

Description
Price

1

CASE SUB, AIR CLEANER This part replaces 17210-MM8-010.

17210-MM8-020

$68.16

1

CASE SUB, AIR CLEANER

17210-MM8-020

$68.16

2

COVER, AIR CLEANER HOUSING This part replaces 17212-MM8-000.

17212-MM8-010

$7.46

2

COVER, AIR CLEANER HOUSING

17212-MM8-010

$7.46

3

ELEMENT, AIR CLEANER This part replaces 17215-MM8-010.

17215-MM8-020

$28.24

3

ELEMENT, AIR CLEANER

17215-MM8-020

$28.24

4

GASKET, AIR CLEANER HOUSING COVER

17217-MG8-300

$7.02

5

BAND A, CONNECTING TUBE This part replaces 17254-MAH-610.

17254-MAH-611

Unavailable

5

BAND A, CONNECTING TUBE

17254-MAH-611

Unavailable

6

CONNECTING TUBE A

17255-MM8-000

$46.36

7

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17256-MM8-000.

95018-52250

$4.78

7

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$4.78

8

TUBE B, AIR CLEANER CONNECTING

17258-MM8-300

Unavailable

9

BAND C, CONNECTING TUBE

17259-MM8-000

$15.13

10

PLUG, BREATHER TUBE

17370-419-700

$3.49

11

TANK, STORAGE

17551-MM8-000

Unavailable

12

TUBE A, BREATHER (NOT AVAILABLE)

17552-MAA-A00

Unavailable

13

TUBE B, BREATHER

17553-MM8-000

Unavailable

14

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

15

STAY, FILLER NECK

19111-MM8-000

Unavailable

16

COLLAR, FR. FENDER

61105-KM7-910

$2.88

17

BAND, SIDE COVER

83606-356-000

$20.88

18

BOLT, FLANGE (6MM)

90116-ME9-000

$3.12

19

SCREW, PAN (4X20)

93500-04020-0G

$0.71

20

SCREW, PAN (4X25)

93500-04025-0G

$0.59

21

SCREW-WASHER (5X16)

93891-05016-07

$1.04

22

CLIP, TUBE (B12)

95002-02120

Unavailable

23

CLIP, TUBE (B12.5)

95002-02130

$1.04

24

BULK HOSE, VINYL (7X11X8000) (7X11X230)

95003-19008-60M

Unavailable

25

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
