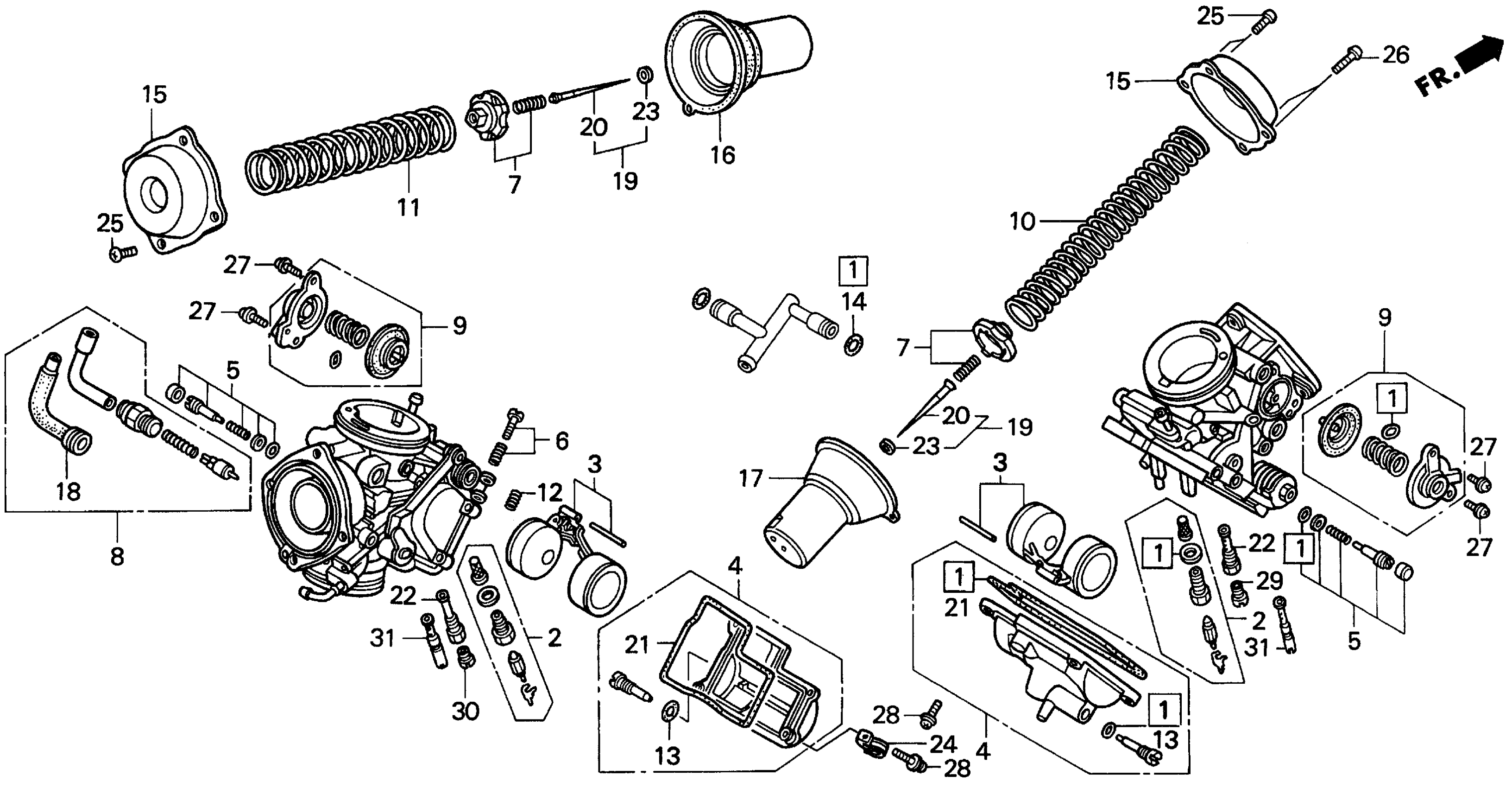

Honda VT1100CA (97) SHADOW SPIRIT 1100, USA, VIN# 1HFSC180-VA100001 CARBURETOR COMPONENT Diagram

#

Description
Price

1

GASKET SET

16010-MAH-750

$37.47

2

VALVE SET, FLOAT

16011-MAH-000

$64.47

3

FLOAT SET

16013-MAH-000

$45.47

4

CHAMBER SET, FLOAT

16015-MAH-750

Unavailable

5

SCREW SET

16016-MAH-670

$24.30

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-MAK-000

$15.76

7

PLATE SET, VALVE This part replaces 16037-MN9-004.

16037-MAK-000

$15.76

8

VALVE SET, STARTER

16046-MAA-610

$64.44

9

VALVE SET, AIR CUT

16048-MAH-670

Unavailable

10

SPRING, COMPRESSION COIL

16050-MAA-A00

$9.72

11

SPRING, COMPRESSION COIL

16050-MAA-A00

$9.72

12

SPRING

16052-ME9-672

$5.42

13

O-RING (1.3X4.3)

16075-GHB-640

$2.69

14

O-RING (1.3X7.0)

16075-GHB-670

Unavailable

15

TOP

16107-MM8-004

Unavailable

16

PISTON, VACUUM

16111-MAA-A00

$139.94

17

PISTON, VACUUM

16111-MAA-A00

$139.94

18

CAP, CABLE SEALING

16118-ME9-671

Unavailable

19

NEEDLE, JET

16131-MAA-A00

Unavailable

21

GASKET, FLOAT CHAMBER

16163-MAH-750

$32.24

22

HOLDER, NEEDLE JET This part replaces 16165-ME9-671.

16165-MZ8-R10

Unavailable

22

HOLDER, NEEDLE JET

16165-MZ8-R10

Unavailable

25

SCREW, PAN (4X10)

93500-04010-0A

$0.90

25

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$0.90

26

SCREW, PAN (4X10)

93500-04010-0A

$0.90

26

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$0.90

27

SCREW-WASHER (4X12)

93892-04012-08

$0.75

27

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.75

28

SCREW-WASHER (4X16)

93892-04016-00

Unavailable

28

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

Unavailable

29

JET (#178) This part replaces 99101-GHB-1780.

99101-MAA-1780

$11.07

29

JET (#178)

99101-MAA-1780

$11.07

30

JET (#178) This part replaces 99101-GHB-1780.

99101-MAA-1780

$11.07

30

JET (#178)

99101-MAA-1780

$11.07

31

JET, SLOW (#42) This part replaces 99103-MT2-0420.

99103-MV9-0420

$19.19
