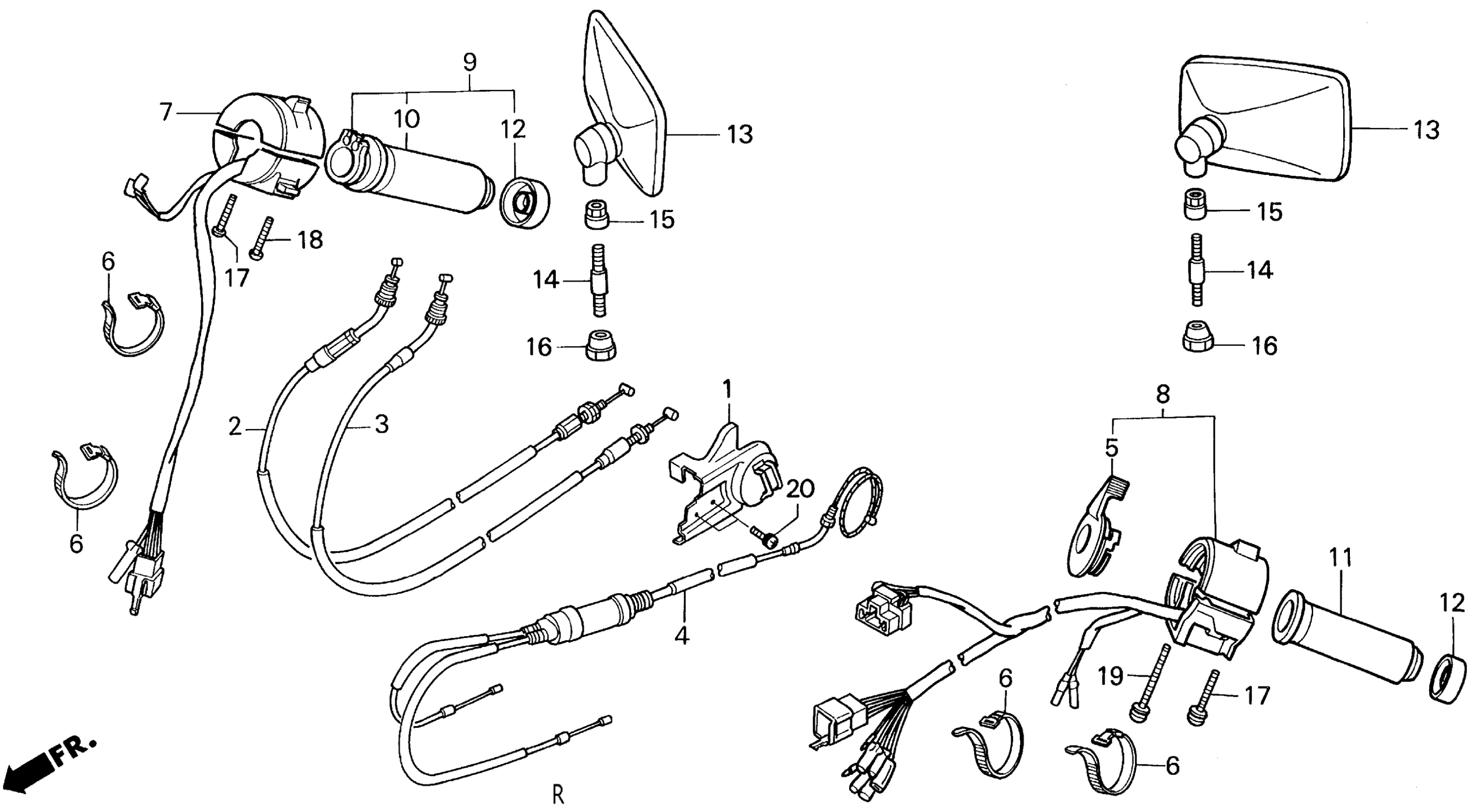

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C SWITCHES + CABLES + MIRRORS 95-96 Diagram

COVER, THROTTLE LINK (NOT AVAILABLE)

16111-MM8-610

Unavailable

CABLE A, THROTTLE

17910-MAA-000

$41.36

CABLE B, THROTTLE

17920-MAA-000

$40.28

CABLE, CHOKE

17950-MM8-000

Unavailable

LEVER, CHOKE

17962-MM8-610

Unavailable

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

SWITCH ASSY., STOP This part replaces 35130-MAA-670.

35130-MAA-671

Unavailable

SWITCH ASSY., STOP

35130-MAA-671

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MAA-670

Unavailable

GRIP, R. This part replaces 53145-MFR-305.

53145-MM8-000

$43.84

GRIP, R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53145-MFR-305.

53145-MM8-000

$43.84

GRIP, R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-MM8-000

Unavailable

CAP, GRIP END

53167-MM8-000

$9.37

MIRROR, BACK This part replaces 88210-MAA-000.

88310-MAH-305

$69.49

MIRROR, BACK

88310-MAH-305

$69.49

STAY (SOURCE: VINTAGE PARTS INC.)

88215-MAA-000

Unavailable

NUT, LOCK

90314-ME8-000

$14.66

NUT, LOCK

90314-375-000

$12.55

SCREW, PAN (5X22)

93500-05022-0B

$1.49

SCREW, PAN (5X25)

93500-05025-0B

$1.49

SCREW, PAN (5X32)

93500-05032-0B

$1.49

SCREW-WASHER (4X6)

93891-04006-00

$1.49
