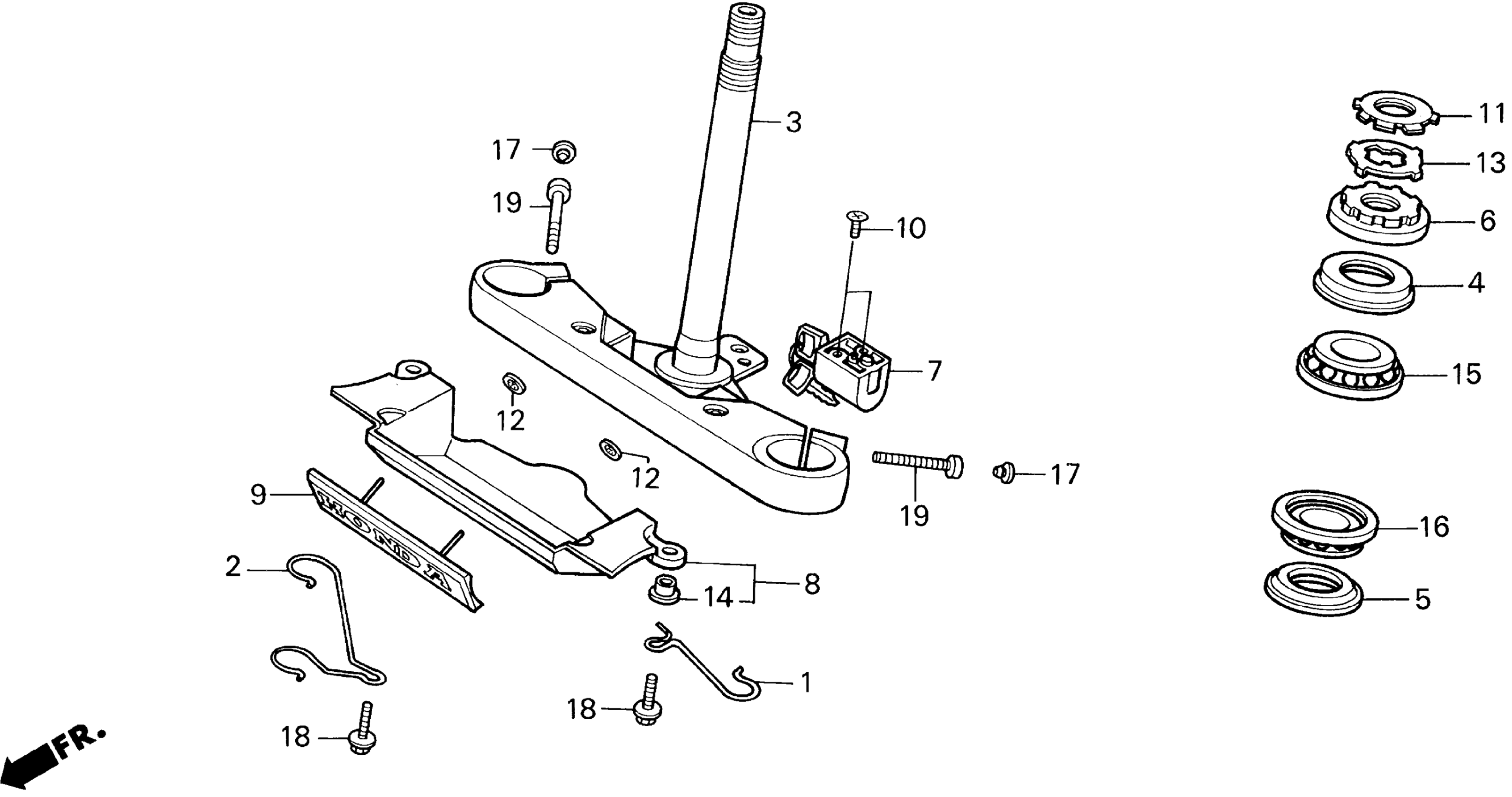

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C STEERING STEM Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-MM8-000

Unavailable

2

CLAMP, FR. BRAKE HOSE (SOURCE: VINTAGE PARTS INC.)

45131-MAA-000

Unavailable

3

STEM, STEERING (NOT AVAILABLE)

53200-MM8-881

Unavailable

4

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

5

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

6

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

6

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$32.73

7

LOCK, HANDLEBAR

53600-086-007

$47.89

8

COVER (LOWER) (SOURCE: VINTAGE PARTS INC.)

61401-MM8-010

Unavailable

9

EMBLEM, BRIDGE (LOWER) (NOT AVAILABLE)

61405-MN0-000

Unavailable

10

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

11

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

12

NUT, SPEED (3MM)

90315-504-000

$3.21

13

WASHER, LOCK

90506-425-830

$7.05

14

COLLAR, GEARSHIFT LEVER SETTING This part replaces 90522-MF5-000.

90522-170-700

$1.84

14

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

15

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

16

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

17

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

18

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

19

BOLT, SOCKET (10X25) (NOT AVAILABLE)

96700-10025-17

Unavailable
