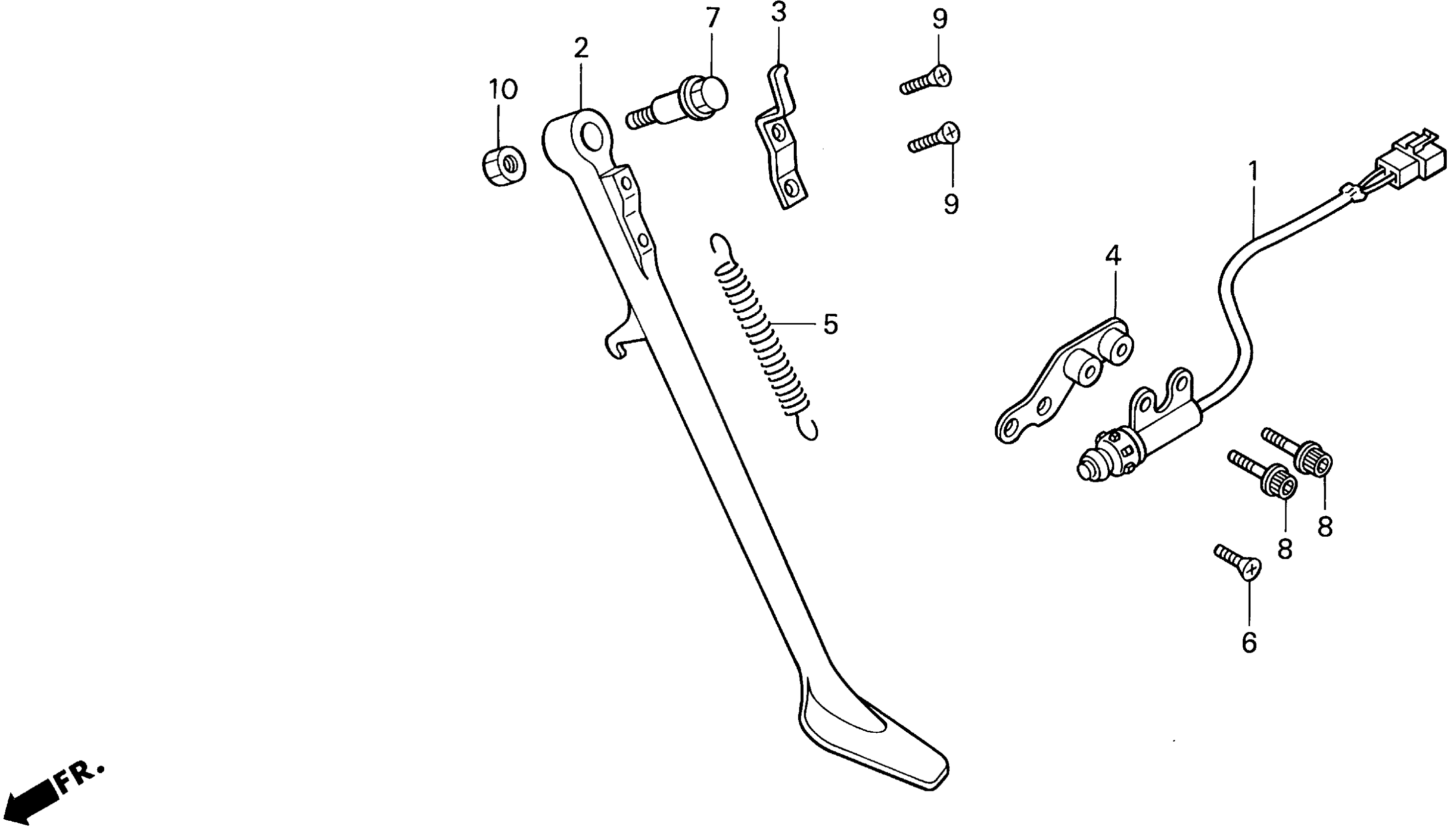

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C STAND 95-96 Diagram

#

Description

Price

1

SWITCH ASSY., SIDE STAND (NOT AVAILABLE)

35710-MM8-611

Unavailable

2

BAR, SIDE STAND (NOT AVAILABLE)

50530-MM8-610

Unavailable

3

PLATE, ARM (SOURCE: VINTAGE PARTS INC.)

50536-MM8-610

Unavailable

4

STAY, SIDE STAND SWITCH (NOT AVAILABLE)

50537-MM8-610

Unavailable

5

SPRING, SIDE STAND

50541-MK3-000

$7.70

6

SCREW, FLAT (6X16) (SOURCE: VINTAGE PARTS INC.)

90022-MM8-610

Unavailable

7

BOLT, SIDE STAND PIVOT (NOT AVAILABLE)

90108-MM8-000

Unavailable

8

BOLT, FLANGE (6X16) (SOURCE: VINTAGE PARTS INC.)

90128-MM8-680

Unavailable

9

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

10

NUT, SIDE STAND (NOT AVAILABLE)

90203-MJ4-000

Unavailable
