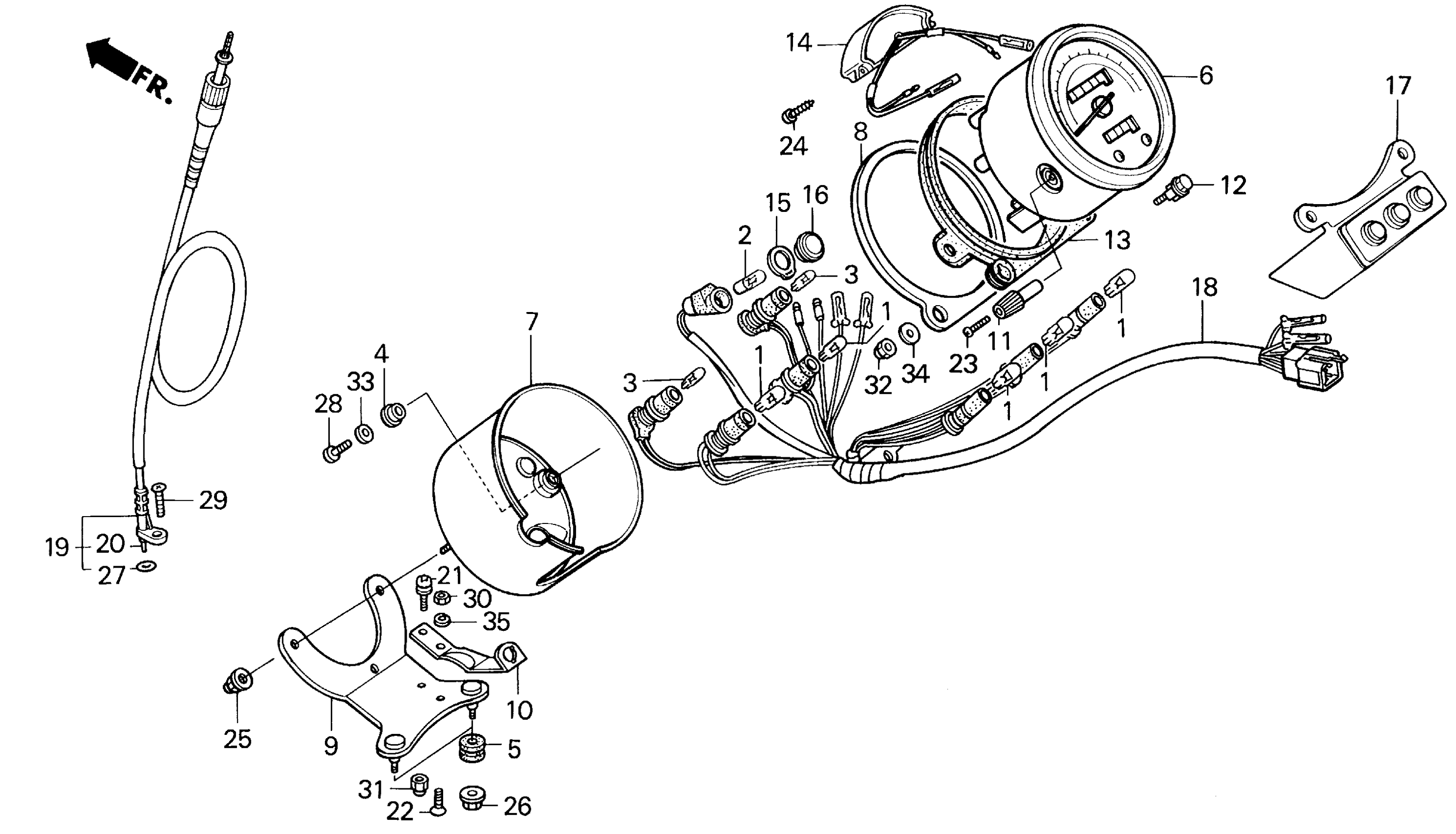

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C SPEEDOMETER 95-96 Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

3

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

4

RUBBER, METER SETTING

37101-MB1-008

$2.92

5

RUBBER, METER MOUNTING

37111-MF5-000

$5.74

6

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-MAA-670

Unavailable

7

COVER, METER (NOT AVAILABLE)

37204-MM8-008

Unavailable

8

PLATE, SETTING (NOT AVAILABLE)

37211-MM8-610

Unavailable

9

BRACKET, METER (SOURCE: VINTAGE PARTS INC.)

37213-MM8-611

Unavailable

10

STAY, SIDE STAND WARNING (NOT AVAILABLE)

37214-MM8-611

Unavailable

11

KNOB

37220-KR3-671

$11.09

12

BOLT, PILOT BOX SETTING

37225-MM8-008

$5.46

13

RUBBER, CUSHION

37242-MM8-008

Unavailable

14

TEMPERATURE UNIT (NOT AVAILABLE)

37410-MM8-008

Unavailable

15

PANEL, SIDE STAND (SOURCE: VINTAGE PARTS INC.)

37556-MM9-830

Unavailable

16

LENS, TURN SIGNAL PILOT (ORANGE)

37561-KR3-671

$9.32

17

BOX ASSY., PILOT This part replaces 37600-MM8-671.

37600-MM8-651

Unavailable

18

SOCKET (NOT AVAILABLE)

37619-MM8-611

Unavailable

19

CABLE ASSY., SPEEDOMETER

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME5-850.

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME8-000.

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-MF5-000.

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-MK3-000.

44830-ME5-405

$30.35

20

CABLE (INNER) This part replaces 44831-MB1-300.

44831-KM1-000

Unavailable

21

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

22

SCREW, FLAT (3X8) (NOT AVAILABLE)

90040-MM8-611

Unavailable

23

SCREW, PAN (2X6)

90158-KM7-911

$1.92

24

SCREW, TAPPING (3X14)

90160-MM8-611

$2.74

25

NUT, CAP (6MM)

90202-ZV0-000

$2.91

26

NUT, FLANGE (6MM)

90302-187-000

$2.39

27

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

27

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

27

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

28

SCREW, PAN (4X8)

93500-04008-0A

$1.49

28

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

29

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

30

NUT, HEX. (3MM) (NOT AVAILABLE)

94002-03000-0S

Unavailable

31

NUT, CAP (4MM) (NOT AVAILABLE)

94021-04020-0S

Unavailable

32

NUT, CAP (5MM)

94021-05020-0S

$1.49

33

WASHER, PLAIN (4MM)

94101-04000

$1.49

34

WASHER, PLAIN (5MM)

94103-05000

$1.49

35

WASHER, SPRING (3MM)

94111-03000

$1.49
