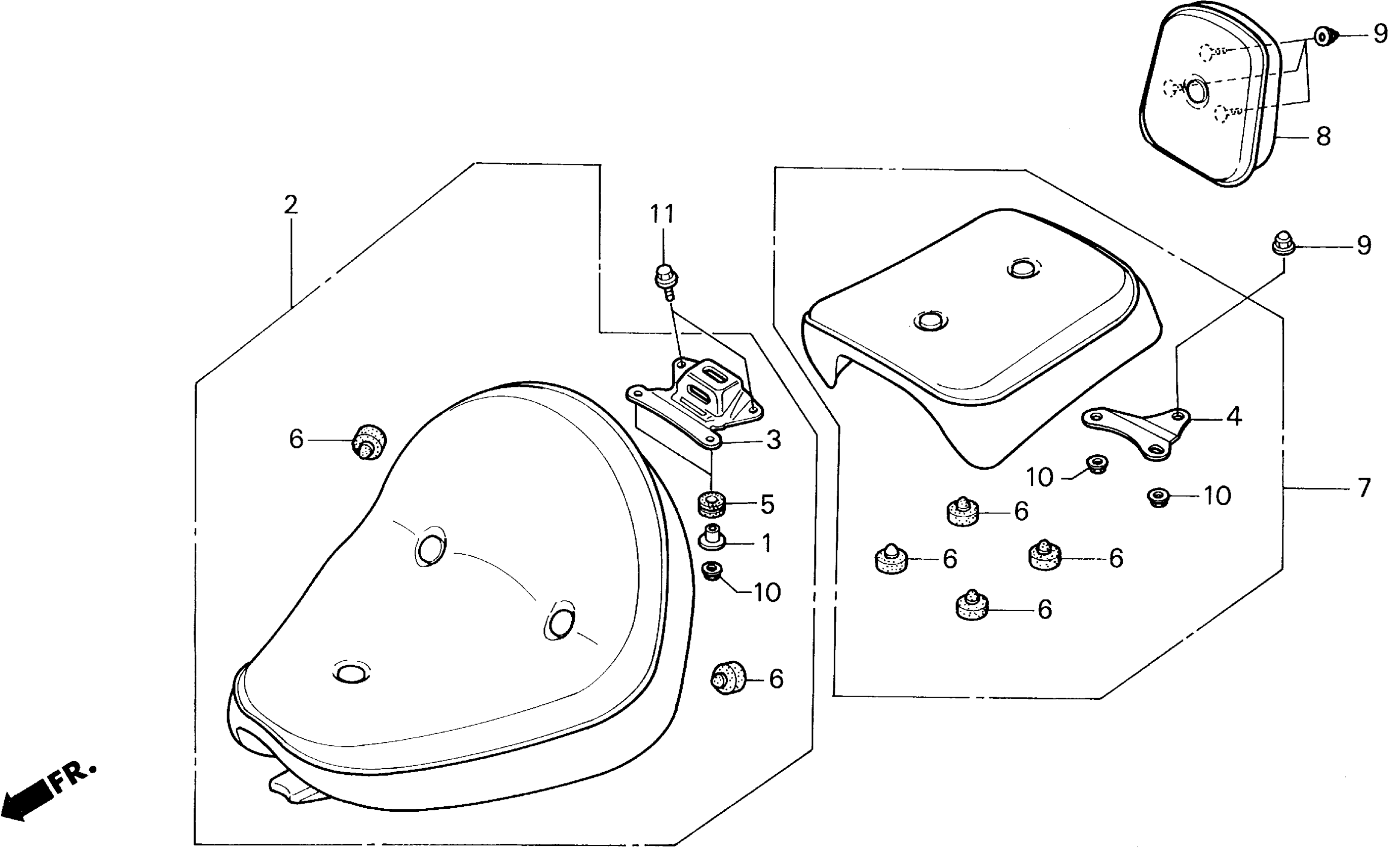

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C SEAT 95-96 Diagram

COLLAR, AIR CLEANER

17248-402-700

$6.13

SEAT ASSY., FR. (NOT AVAILABLE)

77100-MM8-680

Unavailable

STAY, FR. SEAT (NOT AVAILABLE)

77202-MM8-000

Unavailable

STAY, RR. SEAT

77203-MM8-000

$30.20

RUBBER B, SEAT SETTING (NOT AVAILABLE)

77206-KR3-000

Unavailable

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

SEAT ASSY., RR. (NOT AVAILABLE)

77300-MM8-880

Unavailable

SEAT, BACK (NOT AVAILABLE)

77400-MM8-680

Unavailable

NUT, CAP (6MM)

90202-ZV0-000

$2.65

NUT, FLANGE (6MM)

94050-06080

$0.59

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
