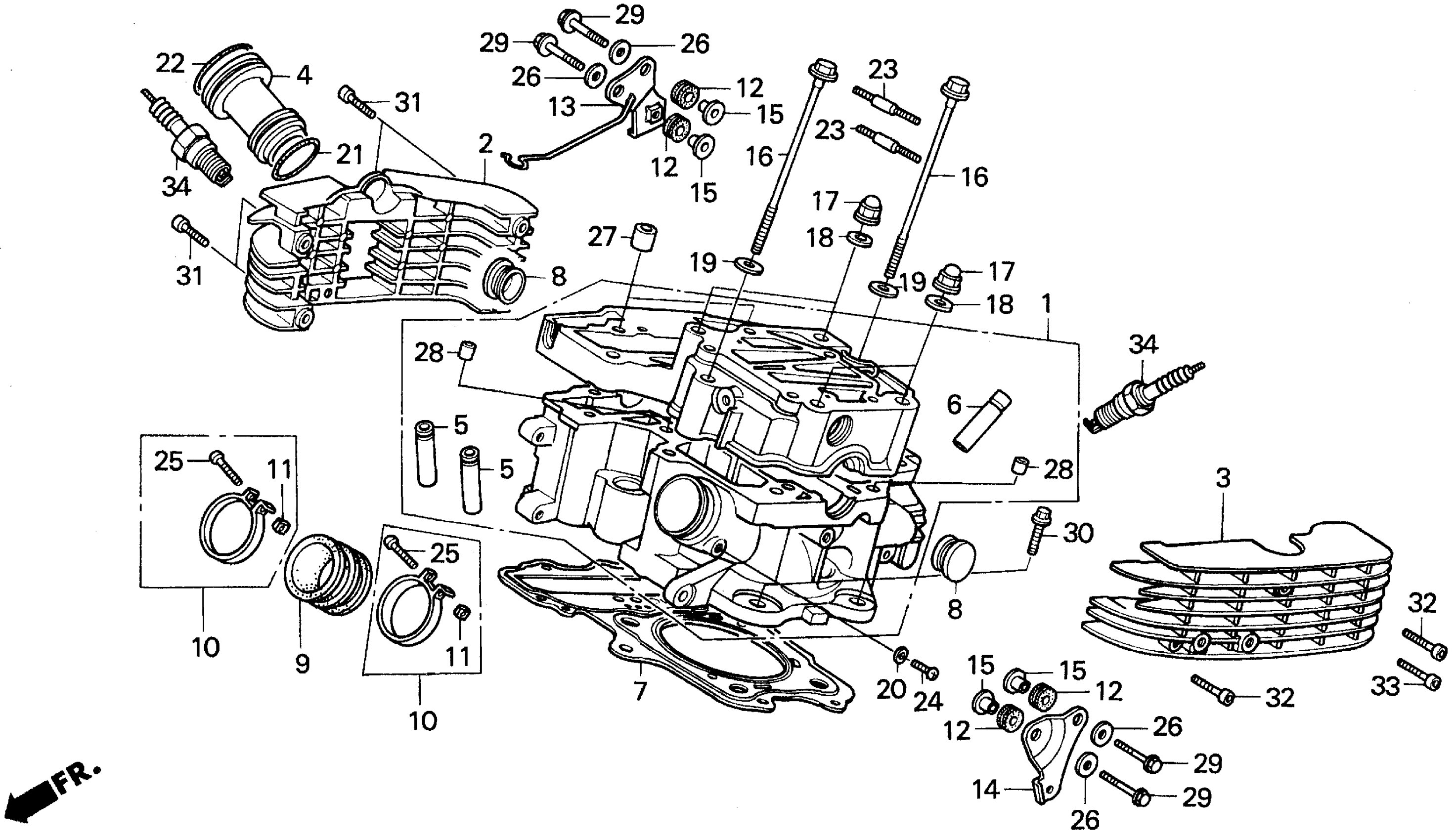

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR. (SOURCE: VINTAGE PARTS INC.)

12020-MAA-010

Unavailable

2

FIN A, RR. CYLINDER HEAD (NOT AVAILABLE)

12222-MM8-680

Unavailable

3

FIN B, RR. CYLINDER HEAD (SOURCE: VINTAGE PARTS INC.)

12223-MM8-680

Unavailable

4

SLEEVE, PLUG

12225-MG8-000

$38.87

5

GUIDE, IN. VALVE (OVER SIZE)

12231-MG8-305

$20.08

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MG8-004

Unavailable

8

PLUG, CAMSHAFT

12312-ME9-750

$10.12

9

INSULATOR, CARBURETOR

16211-MG8-000

$19.41

10

BAND, INSULATOR (NOT AVAILABLE)

16218-MAA-000

Unavailable

11

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

12

GROMMET, HORN STAY

38119-MM8-000

$4.74

13

STAY, R. HORN (NOT AVAILABLE)

50328-MM8-680

Unavailable

14

STAY, L. HORN (SOURCE: VINTAGE PARTS INC.)

50329-MM8-680

Unavailable

15

COLLAR, FUEL TANK SETTING (NOT AVAILABLE)

61104-943-000

Unavailable

16

BOLT, FLANGE (8X150)

90015-MG8-000

$6.07

17

NUT, CAP (10MM)

90209-MM8-000

$6.00

18

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

19

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

20

WASHER, SEALING (5MM)

90452-323-000

$1.59

21

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

22

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

23

BOLT, STUD (8X35)

92900-08035-0B

$2.46

23

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.46

24

SCREW, PAN (5X8)

93500-05008-0A

$1.49

25

SCREW, PAN (5X25)

93500-05025-0G

$1.49

26

WASHER, PLAIN (10MM)

94101-10000

$1.49

27

PIN, DOWEL (10X16)

94301-10160

$2.28

28

PIN, DOWEL (14X20)

94301-14200

$2.28

29

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

30

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

31

BOLT, SOCKET (6X20)

96600-06020-00

$1.49

31

BOLT, SOCKET (6X20) This part replaces 96700-06020-00.

96600-06020-00

$1.49

32

BOLT, SOCKET (6X35) (NOT AVAILABLE)

96700-06035-00

Unavailable

33

BOLT, SOCKET (6X45) (NOT AVAILABLE)

96700-06045-00

$1.90

34

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

34

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

34

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

34

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

34

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

34

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
