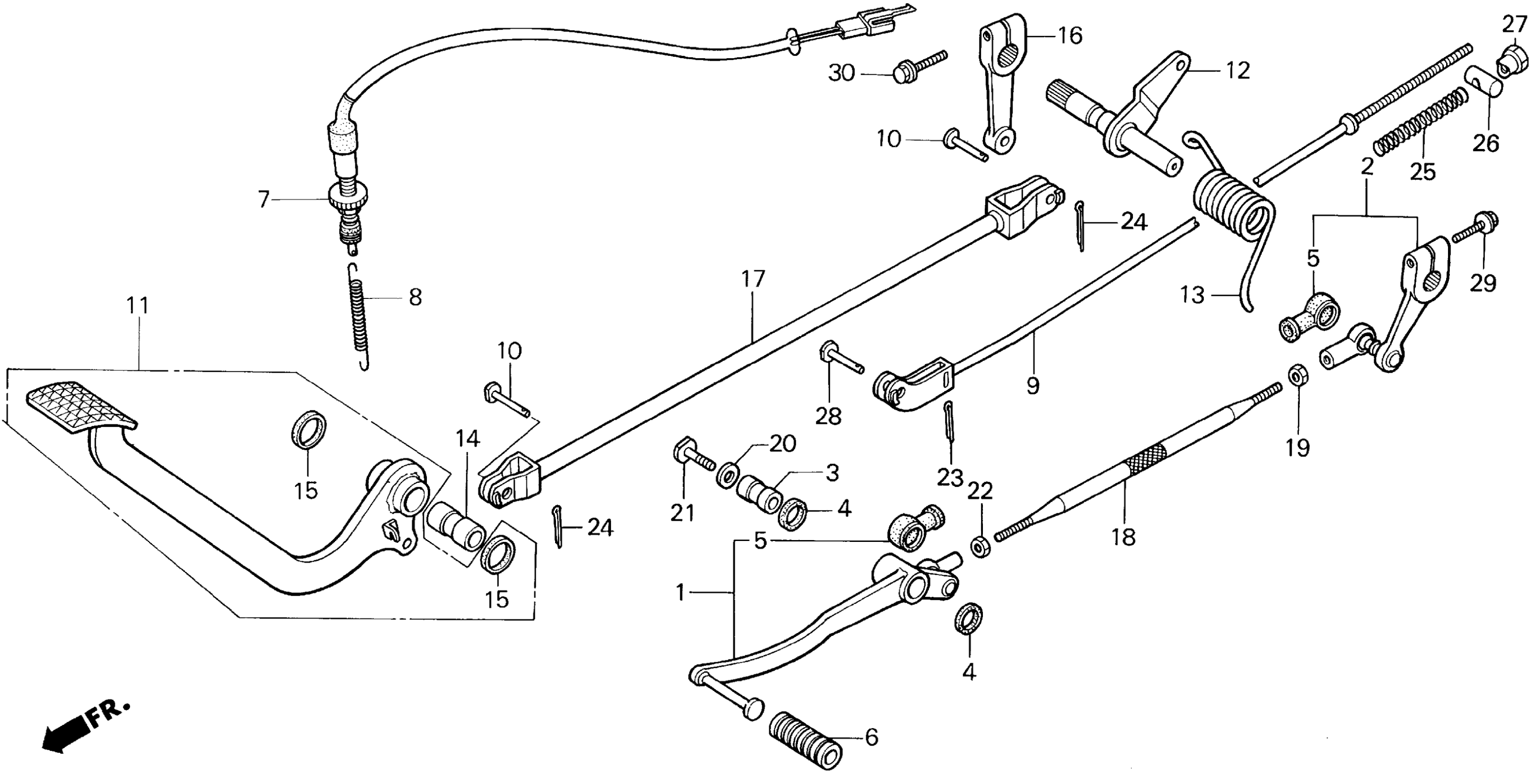

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C PEDAL 95-96 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-MM8-000

Unavailable

2

ARM, GEARSHIFT

24702-MM8-000

$64.44

3

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$10.67

4

RUBBER, DUST SEAL

24706-MK3-770

$4.48

5

COVER, DUST

24724-422-000

$6.68

6

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

7

SWITCH ASSY., RR. STOP

35350-KE5-405

Unavailable

7

SWITCH ASSY., RR. STOP This part replaces 35350-MM8-010.

35350-KE5-405

Unavailable

8

SPRING, STOP SWITCH

35357-ME9-000

$4.74

9

ROD, RR. BRAKE

43451-MM8-000

$21.13

10

PIN, MIDDLE ROD JOINT

43456-MK7-000

Unavailable

11

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MM8-880

Unavailable

12

ARM, RR. BRAKE MIDDLE

46510-MM8-000

Unavailable

13

SPRING, BRAKE RETURN

46514-MM8-000

Unavailable

14

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$11.72

15

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

16

ARM, RR. BRAKE PEDAL PIVOT

46530-MM8-000

Unavailable

17

ROD, RR. BRAKE MIDDLE (NOT AVAILABLE)

46540-MM8-000

Unavailable

18

BOLT, TIE ROD (NOT AVAILABLE)

90065-MM8-880

Unavailable

19

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

20

WASHER (8MM)

90514-921-000

$1.49

21

BOLT, HEX. (8X35)

92201-08035-0A

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

PIN, SPLIT (1.6X12)

94201-16120

$1.49

24

PIN, SPLIT (2.0X15)

94201-20150

$1.49

25

SPRING A, BRAKE ROD

95014-73100

$1.49

26

JOINT B, BRAKE ARM

95015-32001

$1.49

27

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

28

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

29

BOLT, FLANGE (6X20)

95701-06020-02

$1.49

30

BOLT, FLANGE (8X25)

95701-08025-02

$2.17
