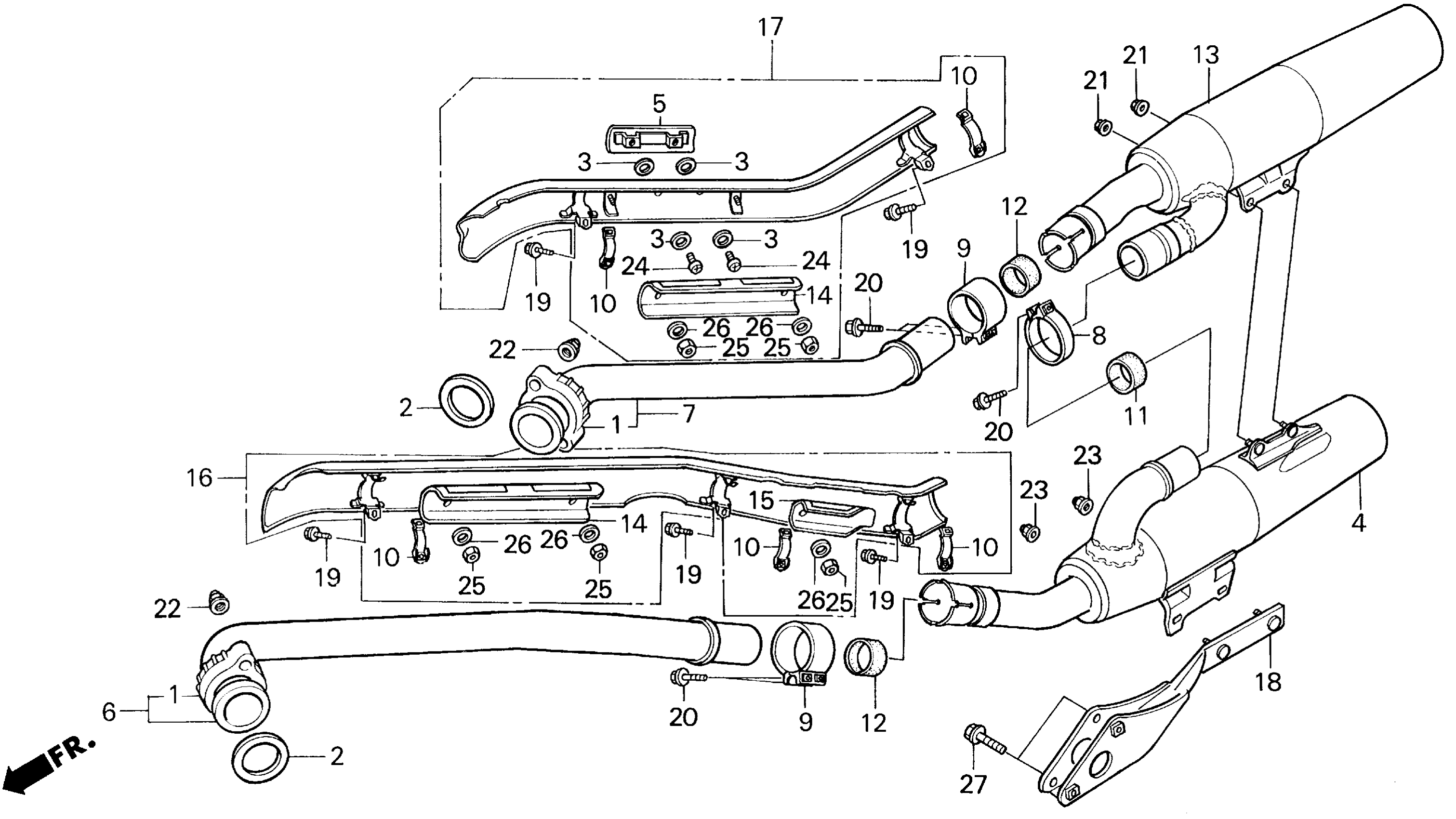

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C MUFFLER 95-96 Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MG8-000

Unavailable

2

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

4

MUFFLER (LOWER) (NOT AVAILABLE)

18310-MM8-003

Unavailable

5

SUB-COVER, EX. PIPE (NOT AVAILABLE)

18315-MM8-000

Unavailable

6

PIPE, FR. EX. (SOURCE: VINTAGE PARTS INC.)

18320-MM8-770

Unavailable

7

PIPE, RR. EX. (SOURCE: VINTAGE PARTS INC.)

18370-MM8-770

Unavailable

8

BAND, R. RR. MUFFLER

18375-MG7-000

$29.64

9

BAND, MUFFLER

18376-KG0-003

$18.83

10

BAND, EX. PIPE COVER

18376-MM8-000

$7.90

11

GASKET, MUFFLER

18392-MG7-750

$13.66

12

GASKET, MUFFLER

18392-MK4-000

$13.66

13

MUFFLER (UPPER) (NOT AVAILABLE)

18410-MM8-003

Unavailable

14

COVER A, EX. PIPE (INNER)

18411-MM8-880

$30.95

15

COVER B, EX. PIPE (INNER) (NOT AVAILABLE)

18412-MM8-880

Unavailable

16

COVER ASSY., FR. EX. PIPE (SOURCE: VINTAGE PARTS INC.)

18421-MM8-880

Unavailable

17

COVER ASSY., RR. EX. PIPE (NOT AVAILABLE)

18422-MM8-880

Unavailable

18

BRACKET, MUFFLER (NOT AVAILABLE)

18455-MM8-000

Unavailable

19

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.99

20

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

21

NUT, FLANGE CAP (8MM)

90161-MM8-000

$2.92

22

NUT, CAP (8MM)

90304-ME1-670

$5.94

23

NUT, CAP (8MM)

90443-107-000

$2.89

24

SCREW, PAN (5X8)

93500-05008-0H

$1.49

25

NUT, HEX. (6MM)

94002-06000-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

BOLT, FLANGE (8X45)

95701-08045-07

$2.17
