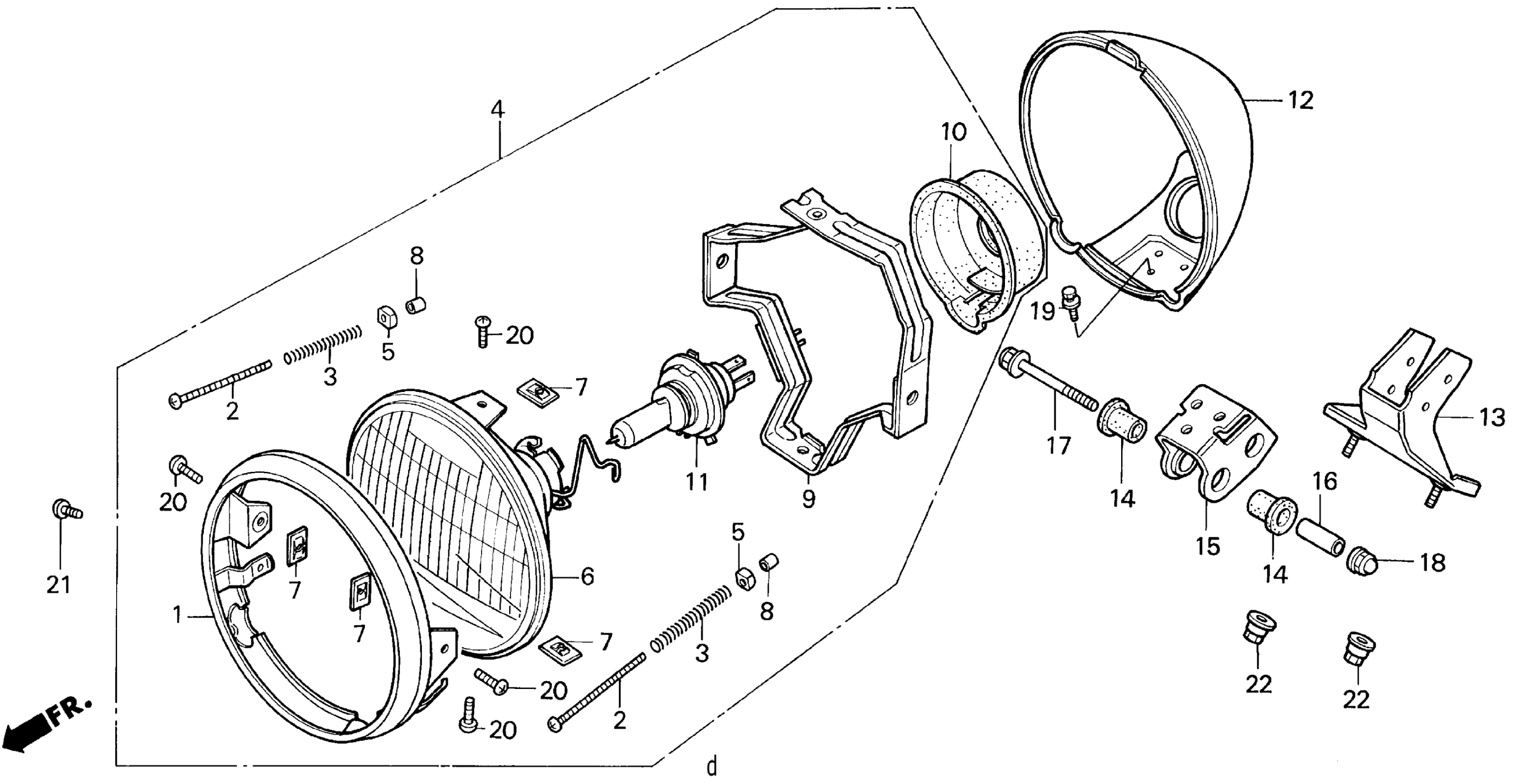

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C HEADLIGHT 95-96 Diagram

#

Description
Price

1

RIM, HEADLIGHT

33101-MM2-003

Unavailable

2

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.74

3

SPRING, BEAM ADJUSTING

33108-MM2-003

$3.26

4

HEADLIGHT SET (NOT AVAILABLE)

33110-MM2-671

Unavailable

5

NUT, BEAM ADJUSTING

33118-438-841

$2.23

6

HEADLIGHT UNIT

33120-MM2-671

Unavailable

7

NUT, UNIT HOLDER

33128-292-670

$2.94

8

COVER, SCREW

33136-426-830

$1.89

9

RING, HEADLIGHT (NOT AVAILABLE)

33153-MM2-003

Unavailable

10

COVER, RUBBER

33180-MJ0-010

$15.62

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

12

CASE, HEADLIGHT (NOT AVAILABLE) This part replaces 61301-MM8-003.

33121-MM2-003

Unavailable

13

STAY, HEADLIGHT (NOT AVAILABLE)

61311-MM8-003

Unavailable

14

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.97

15

BRACKET, HEADLIGHT

61315-MM8-003

Unavailable

16

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.97

17

BOLT, CAP (6MM)

90132-MK7-000

$3.04

18

NUT, CAP (6MM)

90201-415-000

$2.05

19

BOLT-WASHER (6X12)

93402-06012-00

$1.69

19

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

19

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

20

SCREW, PAN (5X8)

93500-05008-0A

$1.49

20

SCREW, PAN (5X8) This part replaces 93500-05008-1A.

93500-05008-0A

$1.49

21

SCREW, PAN (5X12)

93500-05012-0B

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49
