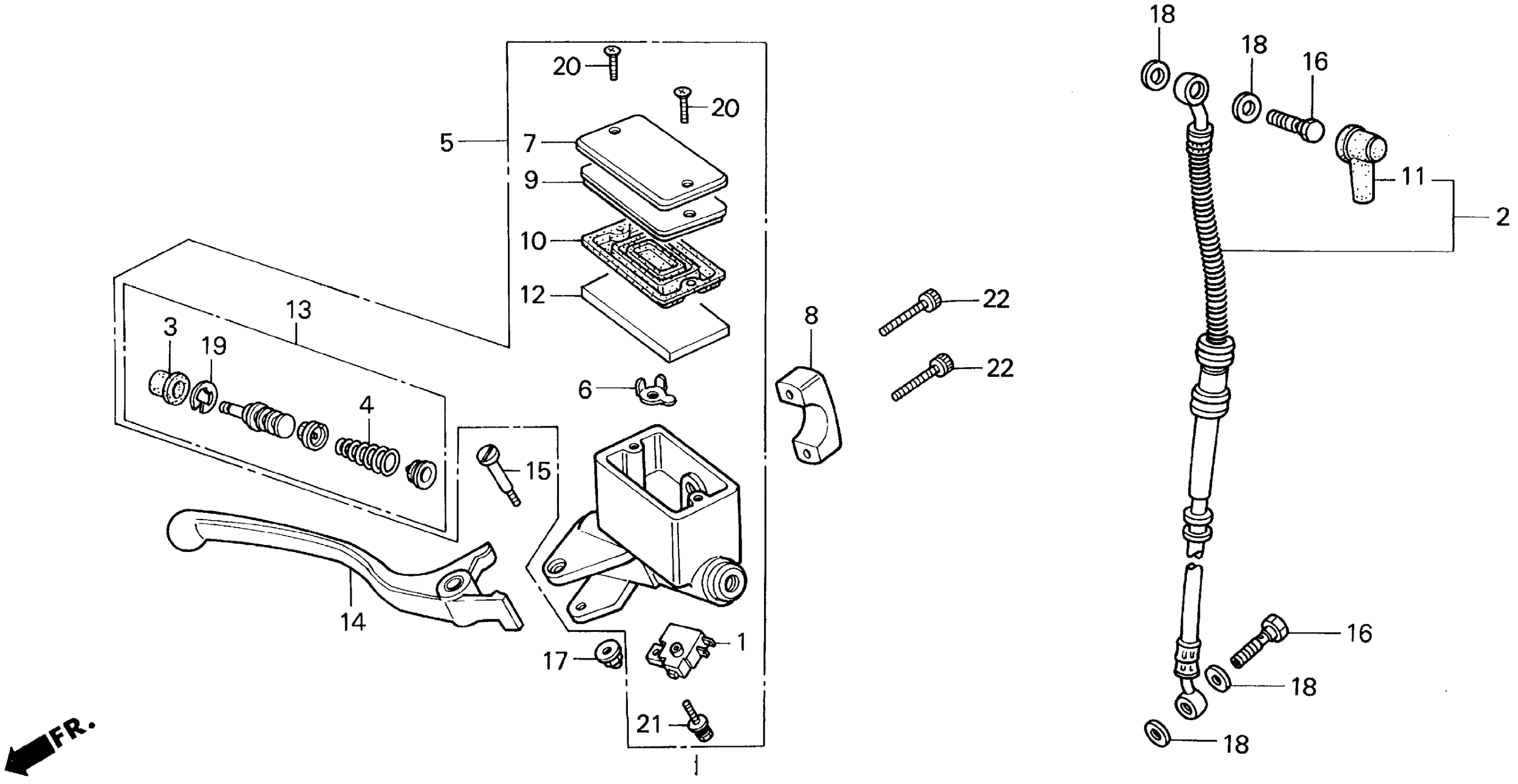

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C FR. BRAKE MASTER CYL. 95-96 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

2

HOSE, FR. BRAKE (NOT AVAILABLE)

45126-MAA-003

Unavailable

3

BOOT

45504-410-003

$10.93

4

SPRING, BRAKE MASTER CYLINDER (NISSIN) (NOT AVAILABLE)

45506-MM8-671

Unavailable

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) (NOT AVAILABLE)

45510-MM8-305

Unavailable

6

PROTECTOR

45512-MA6-006

$3.99

7

CAP, MASTER CYLINDER

45513-MM8-671

Unavailable

8

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MM8-671

Unavailable

9

PLATE, DIAPHRAGM

45518-MB4-671

$10.89

10

DIAPHRAGM

45520-MA5-672

$16.27

11

BOOT, MASTER CYLINDER

45522-422-000

$7.79

12

FLOAT, FR. MASTER CYLINDER (NOT AVAILABLE)

45523-MG9-006

Unavailable

13

PISTON SET, FR. BRAKE MASTER CYLINDER

45530-MM8-671

Unavailable

14

LEVER, R. HANDLE (COO)

53175-MFR-305

$16.84

14

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$16.84

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

16

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

17

NUT, CAP (6MM)

90201-415-000

$1.96

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

CIRCLIP

90651-MA5-671

$2.38

20

SCREW, FLAT (4X12)

93600-04012-1A

$0.57

21

SCREW-WASHER (4X12)

93893-04012-07

$1.22

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

22

BOLT, SOCKET (6X22)

96600-06022-10

$1.91

22

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.91
