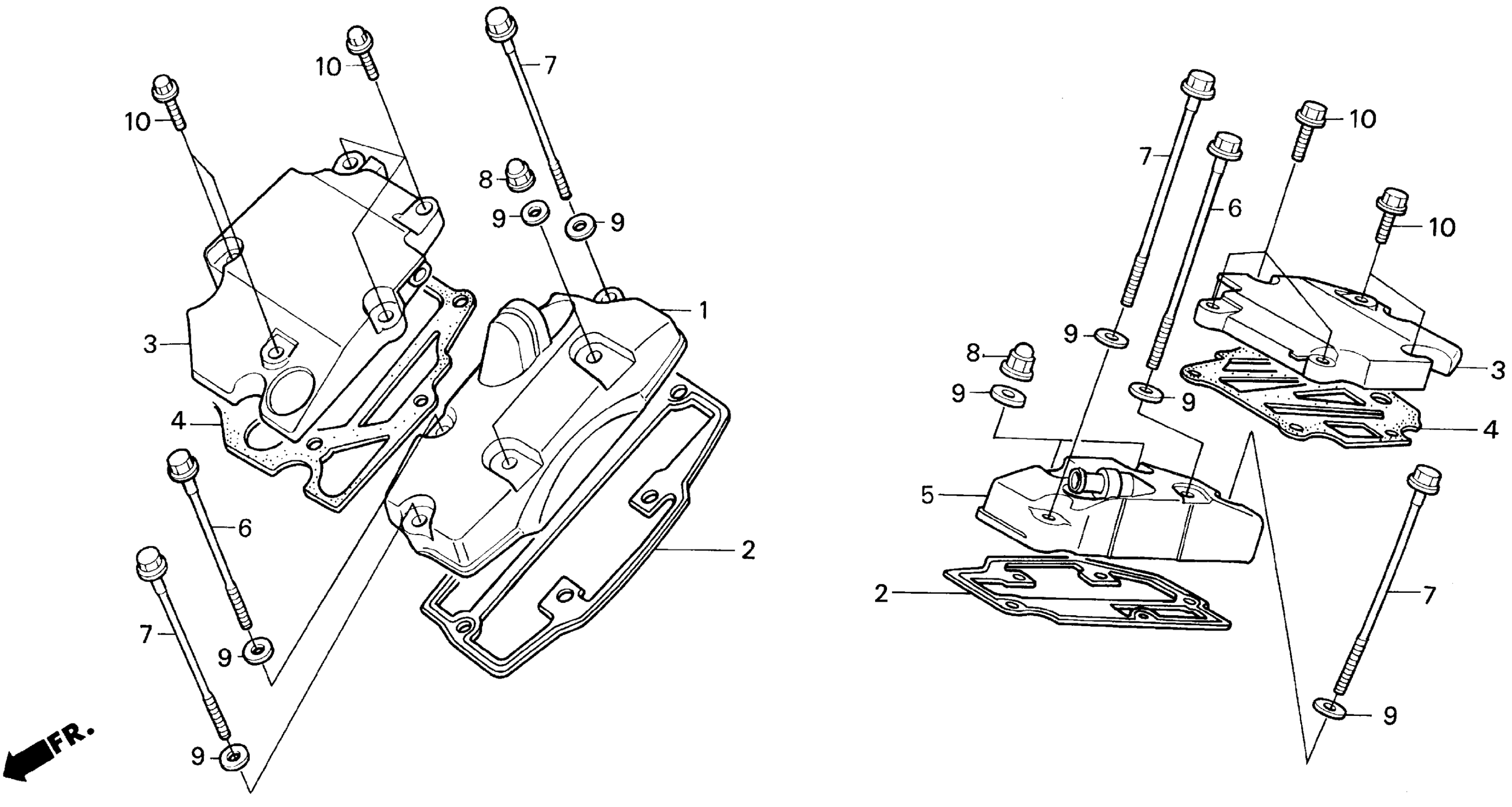

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, FR. CAM CHAIN (NOT AVAILABLE)

12320-MM8-000

Unavailable

2

GASKET, CAM CHAIN COVER (NOT AVAILABLE)

12321-MM8-881

$6.35

3

COVER, TAPPET (NOT AVAILABLE)

12330-MM8-000

Unavailable

4

GASKET, TAPPET COVER

12332-MM8-881

Unavailable

5

COVER, RR. CAM CHAIN (SOURCE: VINTAGE PARTS INC.)

12340-MM8-000

Unavailable

6

BOLT, FLANGE (8X165)

90010-MG8-000

$5.02

7

BOLT, FLANGE (8X150)

90015-MG8-000

$5.80

8

NUT, CAP (8MM) (NOT AVAILABLE)

90208-MM8-000

Unavailable

9

WASHER, SEALING (8MM)

90441-ME9-000

$2.41

10

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
