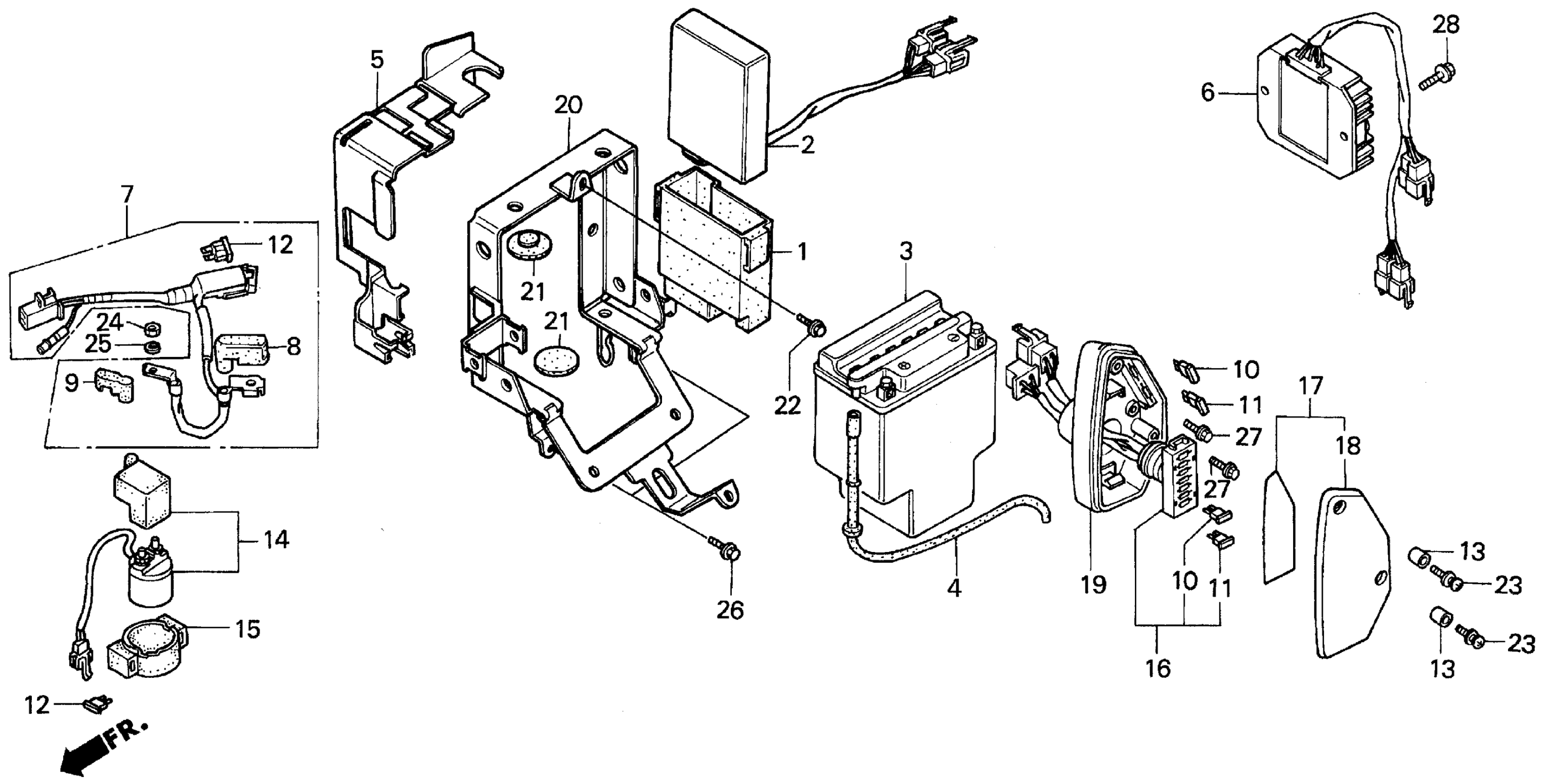

Honda VT1100CA (96) SHADOW 1100, USA, VIN# 1HFSC180-TA000001 VT1100C BATTERY 95-96 Diagram

RUBBER, SPARK UNIT (NOT AVAILABLE)

30405-MM8-000

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MM8-680

Unavailable

BATTERY (HYB16A-A) This part replaces 31500-ME9-676.

31500-ME9-677AH

Unavailable

BATTERY (HYB16A-A) This part replaces 31500-ME9-677.

31500-ME9-677AH

Unavailable

BATTERY (HYB16A-A) (YUASA)

31500-ME9-677AH

Unavailable

TUBE, BATTERY BREATHER This part replaces 31502-MM8-000.

31502-MB1-405

Unavailable

COVER, BATTERY (NOT AVAILABLE)

31506-MM8-610

Unavailable

RECTIFIER ASSY., REGULATOR

31600-MAA-000

Unavailable

CABLE, STARTER BATTERY This part replaces 32401-MM8-880.

32401-MM8-000

Unavailable

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32414-MM8-000

Unavailable

COVER A, MAGNETIC SWITCH TERMINAL (NOT AVAILABLE)

32418-HA7-670

Unavailable

FUSE, BLADE (10A) This part replaces 32503-SM4-003.

98200-31000

$1.49

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49

FUSE, BLADE (30A) This part replaces 32507-SM4-003.

98200-33000

$1.49

FUSE, BLADE (30A)

98200-33000

$1.49

COLLAR, FR. TURN SIGNAL

33609-GK4-620

$2.33

SWITCH ASSY., STARTER MAGNETIC

35850-MM8-610

Unavailable

RUBBER, SHOCK

35856-KR0-007

$10.12

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-MAA-671

Unavailable

COVER, FUSE BOX (NOT AVAILABLE)

38205-MAA-670

Unavailable

COVER, FUSE BOX (NOT AVAILABLE)

38210-MM8-000

Unavailable

PLATE, FUSE BOX (NOT AVAILABLE)

38211-MM8-000

Unavailable

BOX, BATTERY (SOURCE: VINTAGE PARTS INC.)

50320-MM8-000

Unavailable

RUBBER, BATTERY BOX

83618-323-000

$2.47

BOLT, SPECIAL (6X12)

90014-PC0-000

$6.26

SCREW-WASHER (5X12)

93891-05012-07

$1.49

NUT, HEX. (6MM)

94002-06080-0S

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
